DVR systems NVR60xx Series - Manual (Page 106)

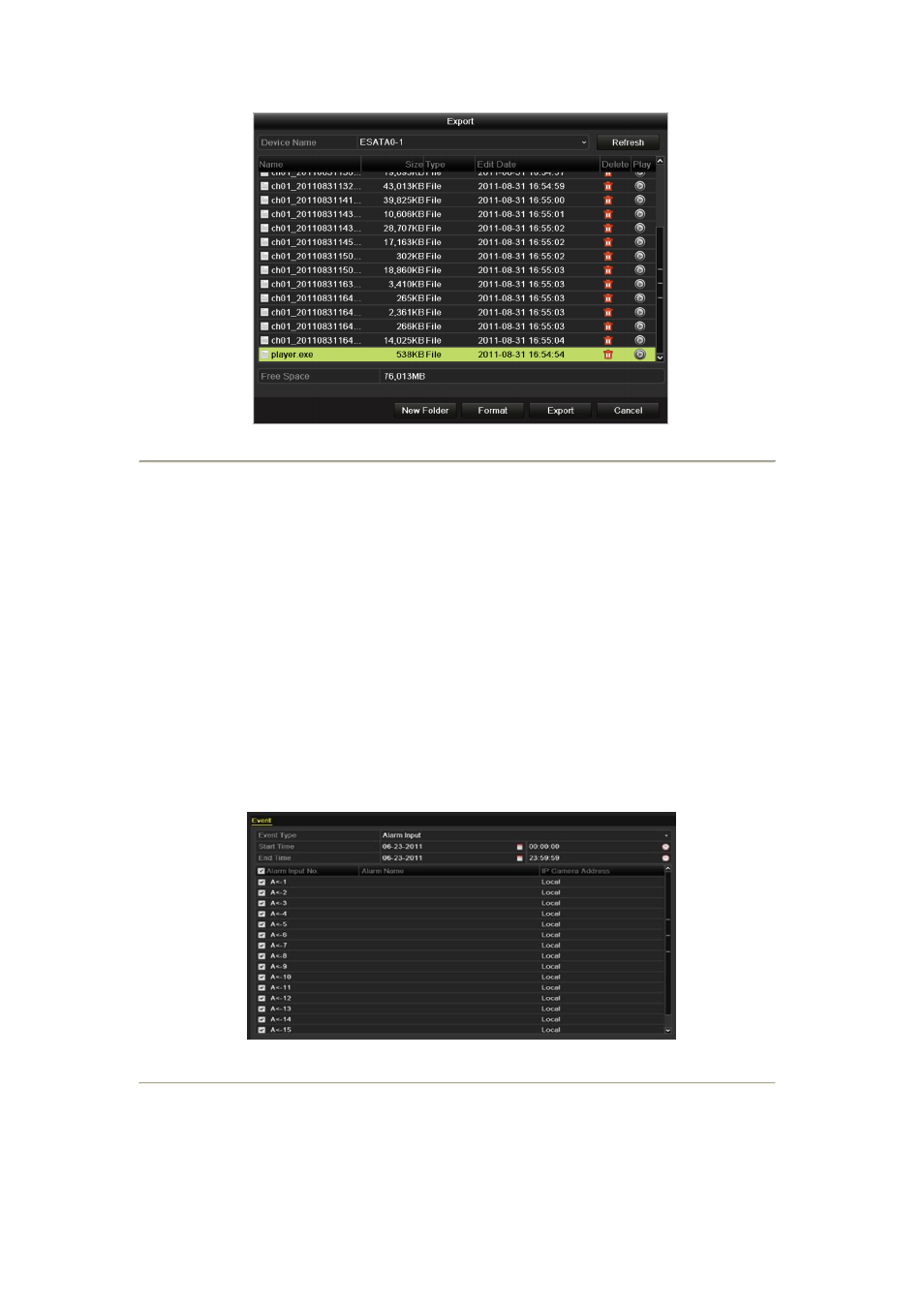

Figure 7. 19 Checkup of Export Result Using eSATA HDD
7.1.3 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), SATA writer
or eSATA HDD. Quick Backup and Normal Backup are supported.
Steps:
1. Enter Export interface.
Menu>Export>Event
1) Select Alarm Input from the dropdown list of Event Type.
2) Select the alarm input No. and time.
3) Click Search button to enter the Search Result interface.
Note: Event types contain Alarm Input and Motion.
Figure 7. 20 Event Search for Backup
2. Select record files to export.
1) Clicking Quick Export button will export record files of all channels triggered by the selected
alarm input.
