8.3 Detecting Video Loss Alarm
Purpose:
Detect video loss of a channel and take alarm response action(s).
Steps:
1. Enter Video Loss interface of Camera Management and select a channel you want to detect.
Menu> Camera> Video Loss

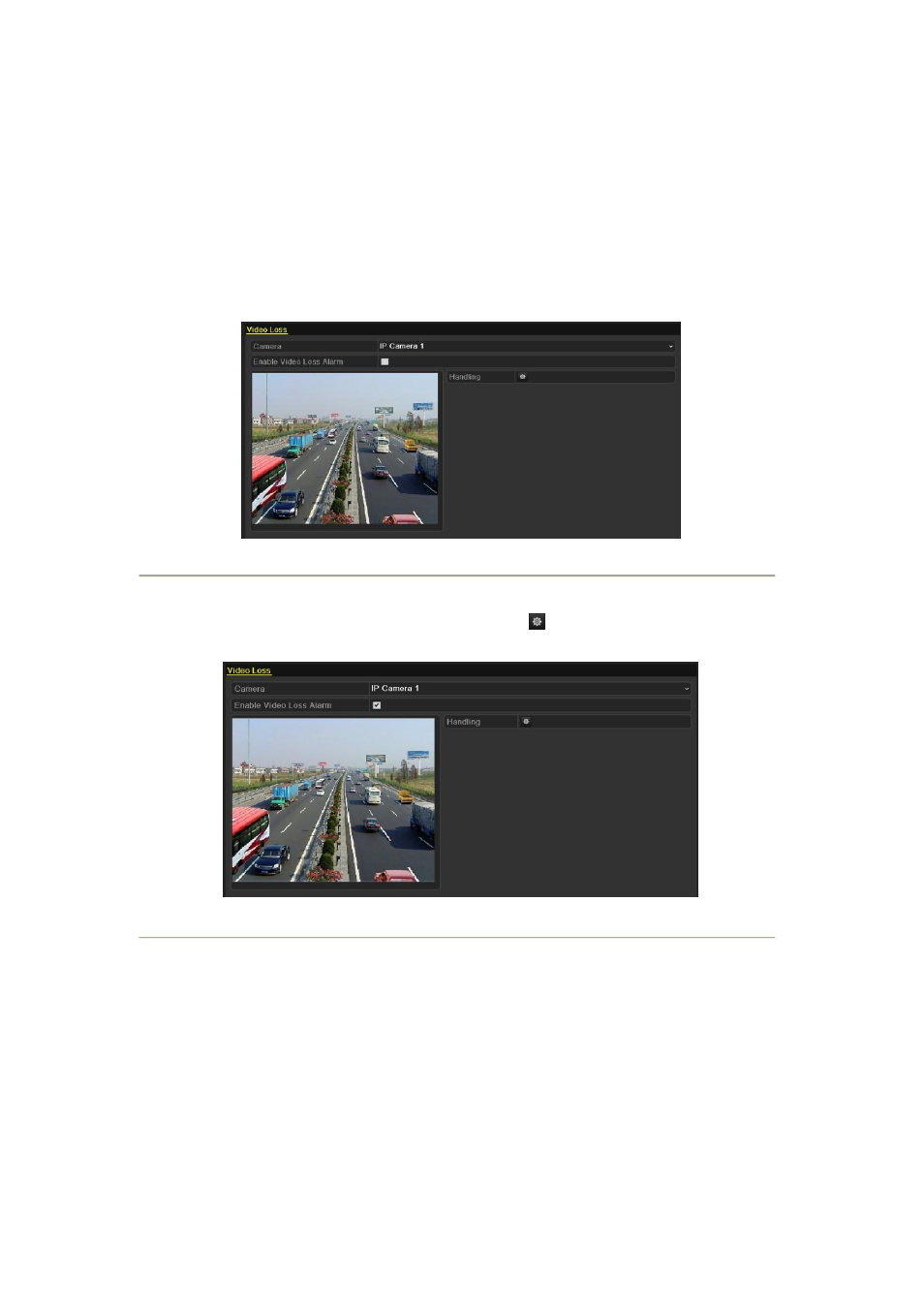

Figure 8. 9 Video Loss Setup Interface
2. Set up handling method of video loss.
Check the checkbox of Enable Video Loss Alarm , and click
button to set up handling method of
video loss.
Figure 8. 10 Set Handling Method of Video Loss
3. Set up arming schedule of the handling methods.
1) Select Arming Schedule tab to set the channel s arming schedule.
2) Choose one day of a week and up to eight time periods can be set within each day.
3) Click Apply button to save the settings.
Note:
Time periods shall not be repeated or overlapped.
