No.

Name

Function Description

Check the checkbox and select the ON/OFF switch;

Start/stop record clipping in playback.

6/MNO/PLAY

Enter numeral 6 ;

Enter letters MNO ;

Playback, for direct access to playback interface.


7/PQRS/REC

Enter numeral 7 ;

Enter letters PQRS ;

Open the manual record interface.

8/TUV/PTZ

Enter numeral 8 ;

Enter letters TUV ;

Access PTZ control interface.

9/WXYZ/PRE

V

Enter numeral 9 ;

Enter letters WXYZ ;

Multi-channel display in live view.

0/A

Enter numeral 0 ;

Shift the input methods in the editing text field. (Upper and

lowercase, alphabet, symbols or numeric input).

Double press the button to switch the main and auxiliary output.




5




JOG SHUTTLE Control

Move the active selection in a menu. It will move the selection up

and down.

In Live View mode, it can be used to cycle through different

channels.

In the Playback mode, it can be used to jump 30s

forward/backward in video files.

In PTZ control mode, it can control the movement of the PTZ

camera.

6

POWER ON/OFF

Power on/off switch.

7

USB Interfaces

Universal Serial Bus (USB) ports for additional devices such as

USB mouse and USB Hard Disk Drive (HDD).

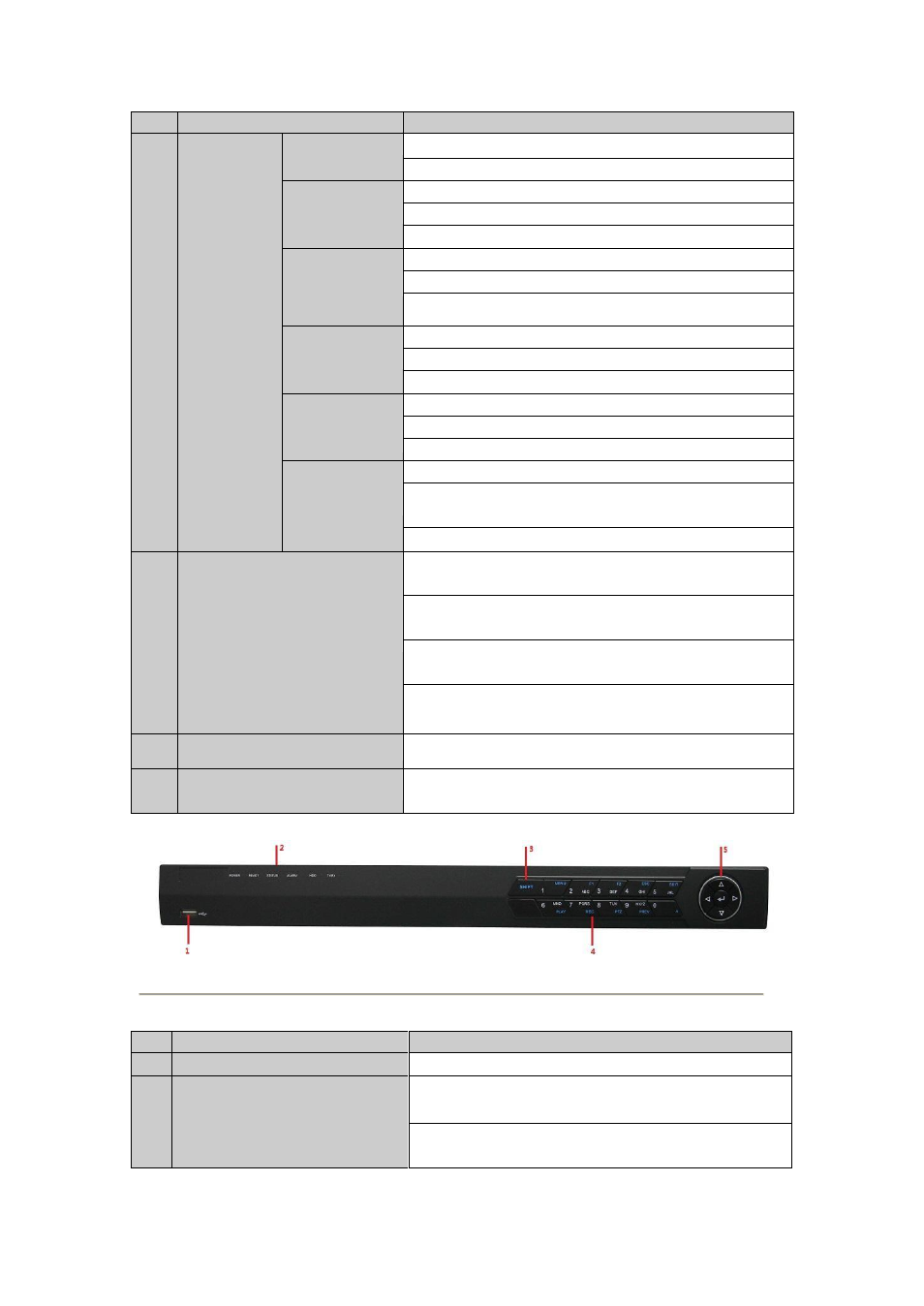

Figure 1. 3 NVR-5816P8

Table 1. 3 Description of Control Panel Buttons

No.

Name

Function Description

1

USB Interface

Connects USB mouse or USE flash memory devices.


2


Status Indicators

POWER: the POWER indicator turns green when NVR is

powered up.

READY: The indicator light is green when the device is running

normally.


16
