CANOGA PERKINS 6703 CWDM Transponder User Manual
Page 8
EdgeAccess Universal Chassis System
CWDM Transponder Model 6703
1-2
The 6703 front panel, shown in Figure 2, includes:
• Status LED
• Reset button
• TRM/MDM switch: Selects terminal emulation or a dial-up modem
• EIA-232 (Console) port with RJ-48 connector: Provides software management access
• Local port with Rx/Tx LEDs: Receives from/transmits to the local equipment; LEDs show port
status; optical interface can be fixed SC at 1310 nm (6703-0003) or SFP (6703-0000)
• Remote port with Rx/Tx LEDs: Receives from/transmits to the 6004 or 6008 Passive
Mux/Demux or remote site; LEDs show the transmitter and receiver status for the port; optical
interface is always an SFP
• LCDR/SC and RCDR/SC LEDs: Show CDR and SpeedCop status for local and remote ports

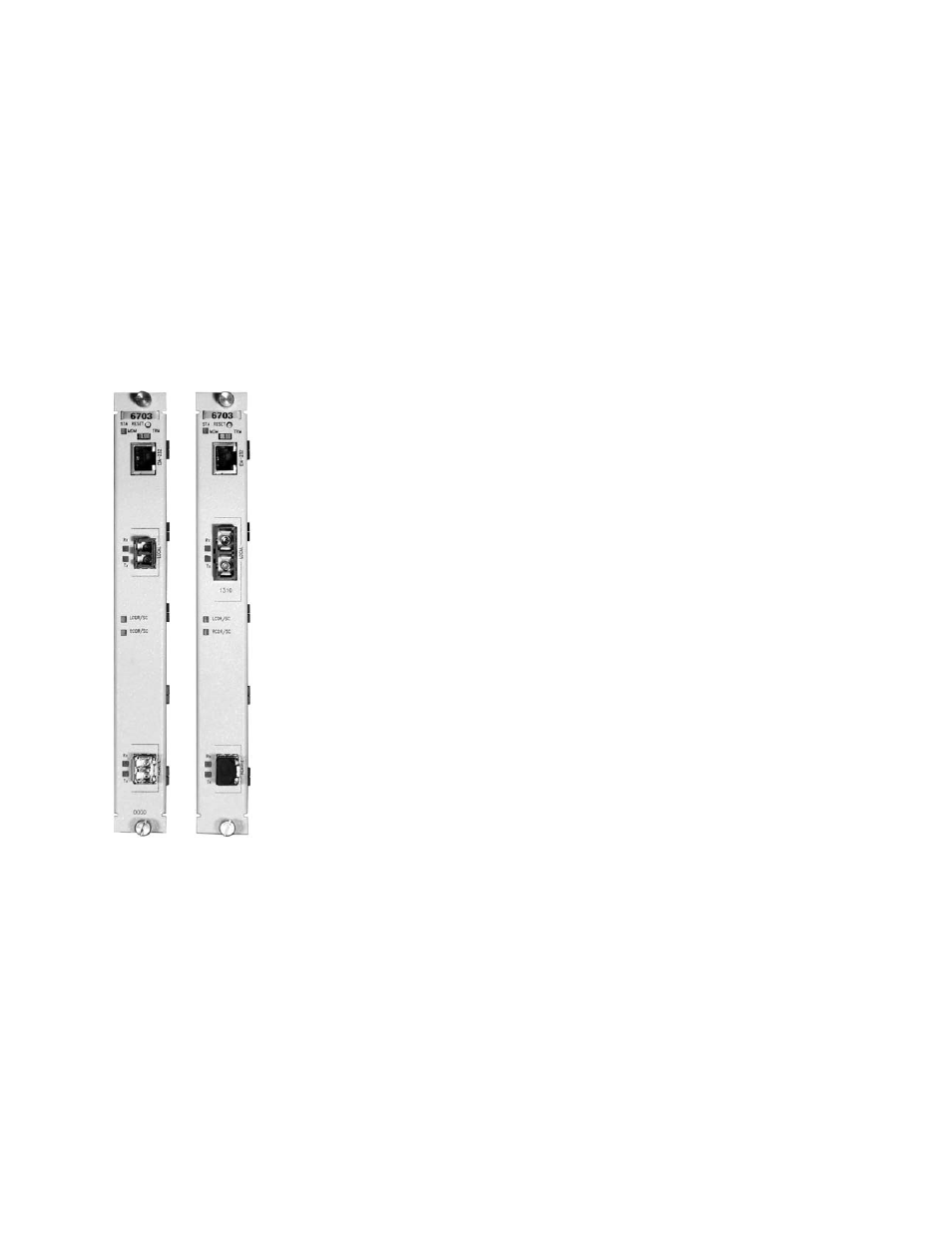

Figure 2. Front Panel, 6703 With Local Port Interface Options
