3.2 Management User Interface
The Management User Interface for the system provides screens for setup, monitoring, and
diagnostics. These sections discuss the screens for the system, using a Telnet session for access.
3.2.1 General Screen Format

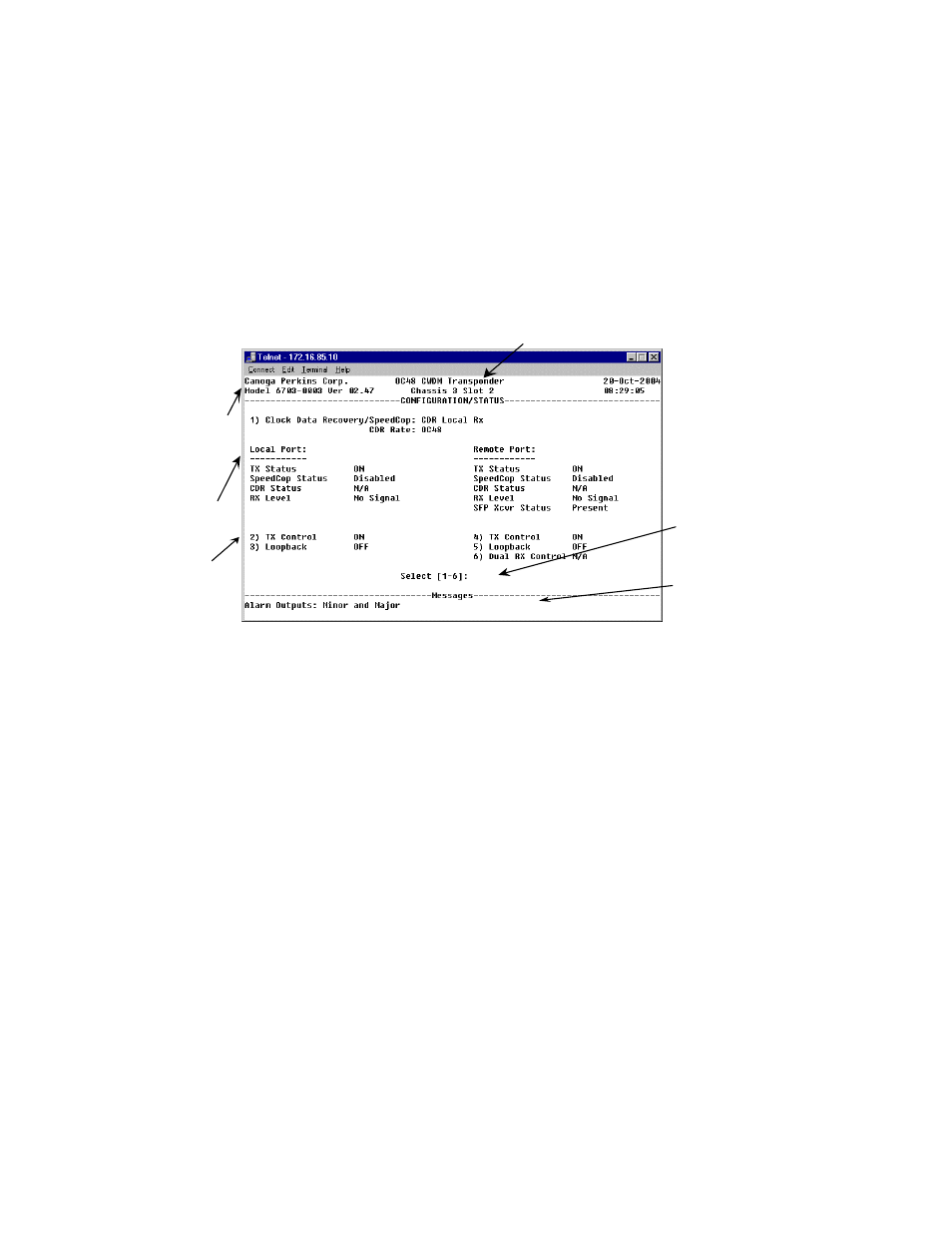

A typical 6703 screen includes standard screen descriptions and references. See Figure 3. All
screens use a common method for navigation.
Messages and
urgent status
Change options
Screen navigation
instructions
Status reports
Model number
Chassis and slot numbers
Figure 3. General Screen Navigation
Not all screens and menus provide options that you can modify. Some menu items reach screens that
only report status, such as revision number, module type, or alarms. On other screens, you can select
options and enter data.
Use these keys to navigate the screens:
• Spacebar When a menu item is highlighted, press to cycle through all options for that
menu item.
• Tab Press to move the highlight to the next column to the right.
• Enter Press to select the highlighted option for a menu item.
• Escape Press to return to the previous screen.
