CANOGA PERKINS 9135G SNMP Managed Gigabit Ethernet Switch - Manual (Page 20)

EdgeAccess Ethernet Switch
3.2 Operation of the 9135G Management Program
The first screen that will come up will be the Login Menu. If this is your initial setup and no password
has been set, press instead of a password. If a password has been set, enter the password for
Supervisor, Manager, or User, and press . The Main Menu screen appears. See Figure 14.
Note: Take care when setting the passwords. Each editable menu item has a minimum access level
that must be met in order to edit it. For example, if you are logged in as USER and try to change a
Spanning Tree parameter, you will see "ACCESS DENIED: SUPERVISOR LEVEL REQUIRED".
Refer to section 3.2.1.4, Passwords.

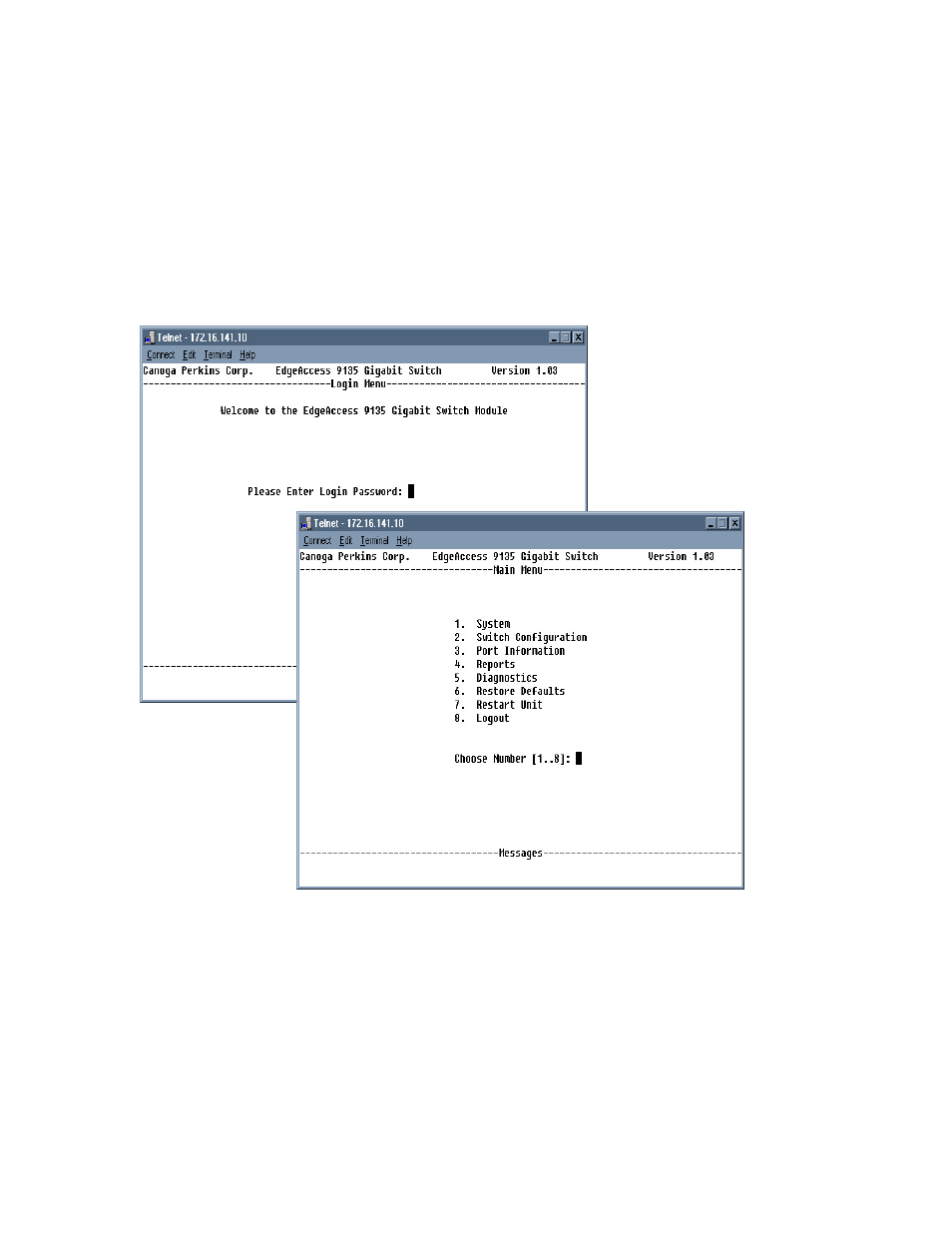

Figure 14. Main Menu
Note: The 9135G Management Program will automatically log the user out after 10 minutes of
inactivity.
Model 9135G SNMP Managed Gigabit Ethernet Switch 3-4
