WEBS-ZPS Zone Paging System Instructions
Copyright © 2011 Talk-A-Phone Co. All rights reserved.
Talk-A-Phone
Co.
• 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Rev. 1/6/2010
Phone 773.539.1100 • Fax 773.539.1241 • [email protected] • www.talkaphone.com
All prices and specifications are subject to change without notice.
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
I. Introduction
Model WEBS-ZPS Zone Paging System is a modular telephone zone paging and control system for use
with analog WEBS
®
stations (such as WEBS-MT/R, WEBS-WM and WEBS-PA-2A). It is expandable up
to 99 zones and can page individual zones, groups of zones (up to 32), or all zones at once.
II. Contents
Before beginning installation, make sure you have all the included components. The WEBS-ZPS
includes:
Qty.
Part
1 WEBS-ZPS
1 AC
Adapter
III. Mounting
The WEBS-ZPS is designed to be wall mounted with the modules side-by-side like books. They should
be oriented so the zone modules are on the right as shown in Figure 1(a) and 1(b). Figure 1(a) illustrates
a WEBS-ZPS unit with a 7-pin dual inline pin (DIP) switch on the first module and Figure 1(b) illustrates a
WEBS-ZPS unit without a 7-pin DIP switch on the first module. There is no functional difference between
the two.
A rack mounting kit is available as Model WEBS-RMKT.
This system is powered by plugging the AC adaptor into the module second from the left.

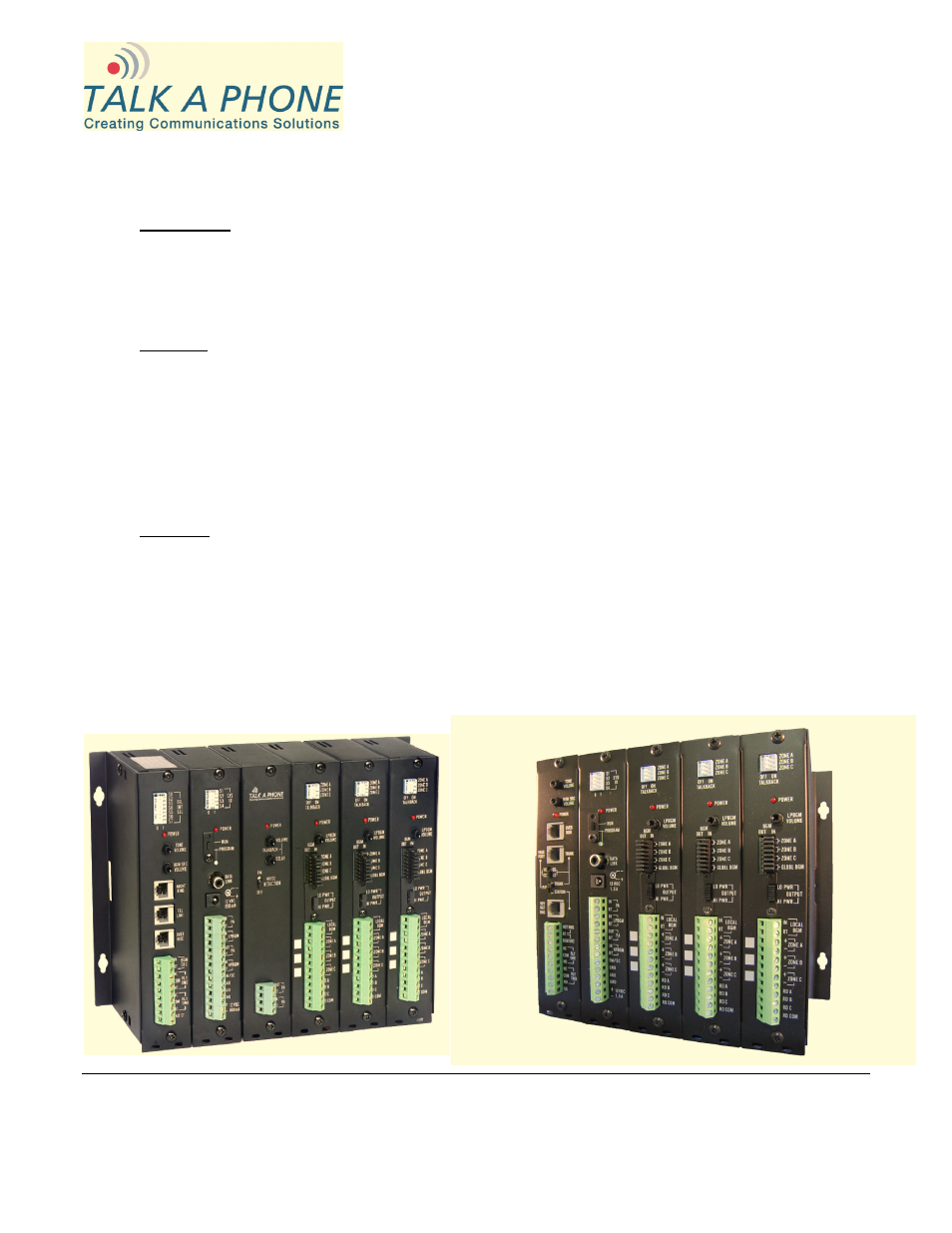

Figure 1(a). WEBS-ZPS (with 7-pin DIP switch).
Figure 1(b). WEBS-ZPS (without 7-pin DIP switch).
