ETP-DMRK Punch-Down Block Installation Instructions
Copyright 2009 Talk-A-Phone Co. All rights reserved.
Talk-A-Phone
Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804 Page 2 of 2
Phone 773.539.1100 • Fax 773.539.1241 • [email protected] • www.talkaphone.com
All prices and specifications are subject to change without notice.
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.

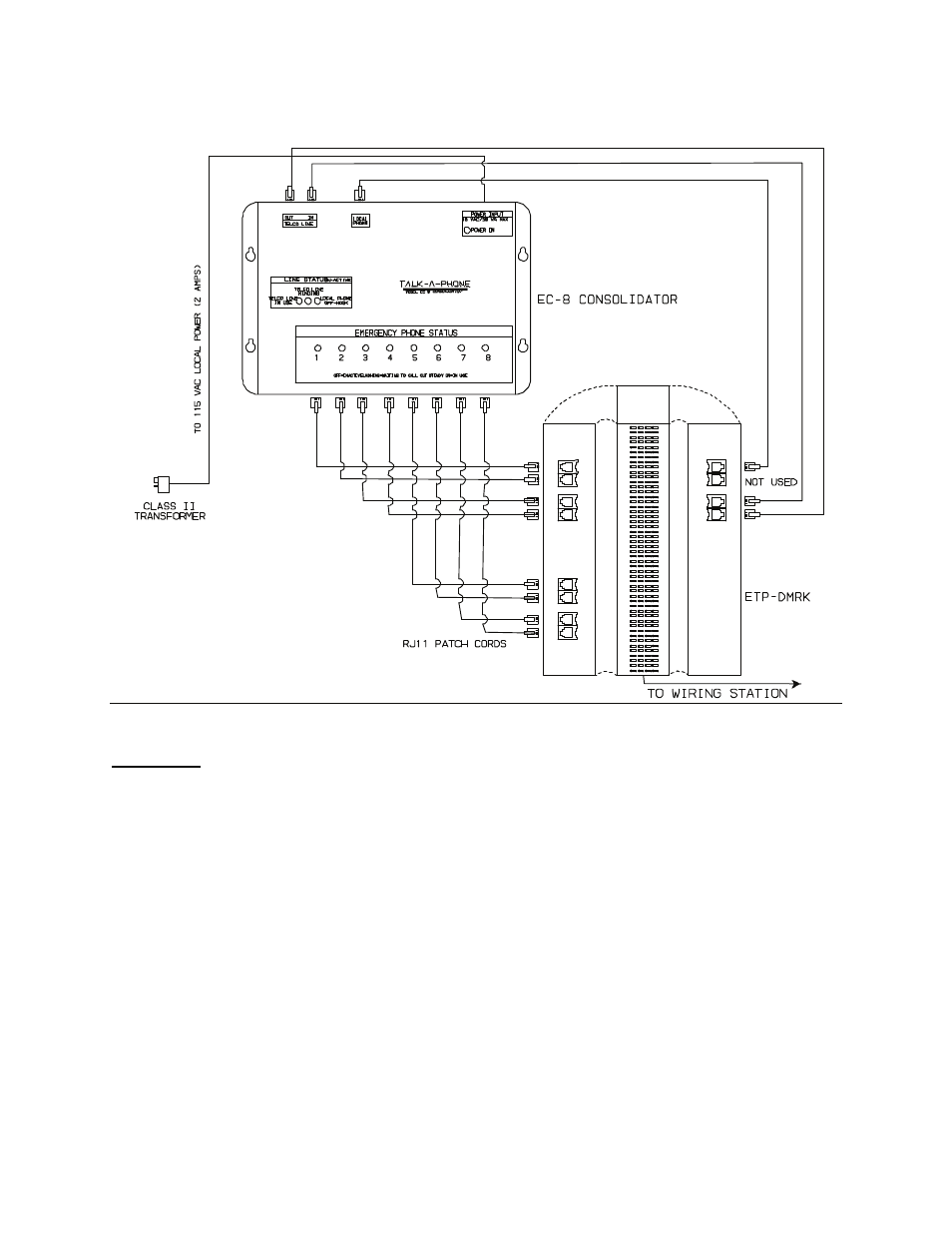

Figure 2. Mounting and Wiring Connections to EC-8
Instructions
1. All installations must comply with all Federal, State and Local Electrical and Building Codes. All
connections must test free of grounds, shorts and opens.
2. Place EC-8 Consolidator and ETP-DMRK Punch-Down Block on wall as shown in Figure 2 using
appropriate hardware for your application.
3. Attach all incoming lines from the ETP-Series phones to the ETP-DMRK Punch-Down Block
according to Figure 1.
4. Attach the eleven male/male RJ11 patch cords as shown in Figure 2.
