OFNA Racing Ultra LX Comp - Manual (Page 23)

Step 2
Step 1
Step 4
Step3 30800
2X4mm
Hex Screw
30800
2X4mm
Hex Screw
30800
2X8mm
Hex Screw
2X7x0.5mm
Washer
30800
2X7x0.5mm
Washer
30800
2mm
Tie-Rod
End
30800
2mm
Tie-Rod
End
30800
Adjust
Mount
30800
2mm
Adjust Mount
94033
3x3mm
Set Screw
30800
Servo
Mount
10768
Servo Hom
30800
2X65mm
Rod
30800
2X25mm
Hex Screw
30800
2X65mm
Rod
30800
2mm
Nut
10769
Servo Horn
Adapter
94033
3x3mm
Set Screw
30800
Alum
Stopper
94003
3x10mm
Hex Screw
94033
3x3mm
Set Screw
30800
Alum
Stopper
30800
2X65mm
Rod
30800
Throttle
Spring
USING BREAK ADJUST NUT
3X8mm
Hex Screw
94033
3x3mm
Set Screw
30800
Alum
Stopper
30800
Antenna Pipe
94033
x3mm
Set Screw
30800
Alum
Stopper
Snap On.
30800
Throttle
Ball End
Loose
Tighten
More Brake Less Brake
Tighten or loose the
adjuster nut will
change the brake.
3x10mm
Tapping Screw 10017
Air Filter
Cap
10016
Air Filter
Sponge
Refill
10021
Air Filter
Connector
10020
Nylon Strap
(Small)
Apply filter oil to the sponge
before use.
X2 2X4mm
Hex Screw
X2 2X8mm
Hex Screw
94033
M3x3
Set Screw
X3
X2 2X10mm
Hex Screw

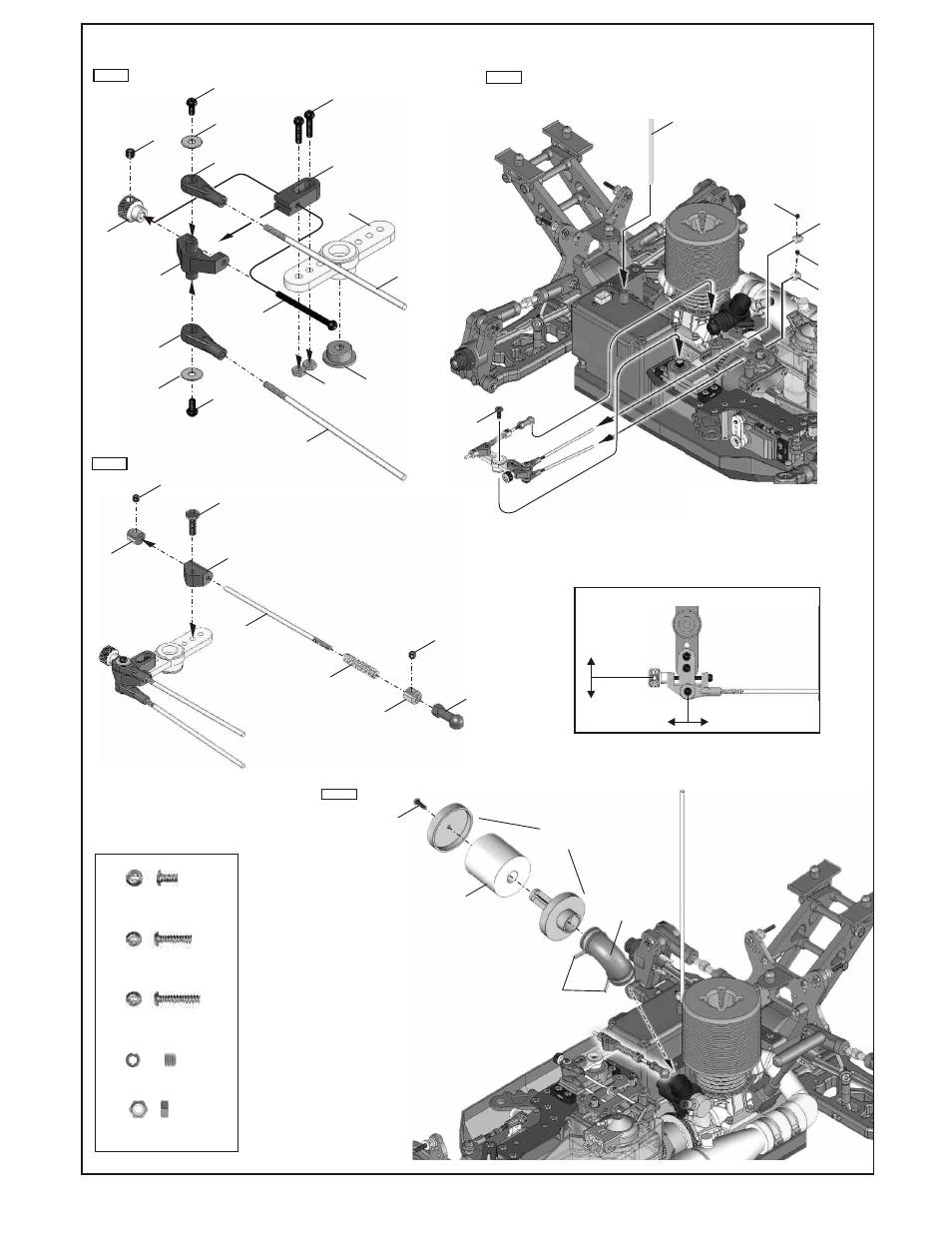

ASSEMBLY OF THE THROTTLE LINKAGE
M2 Nut X2
30800
Throttle
Slider
