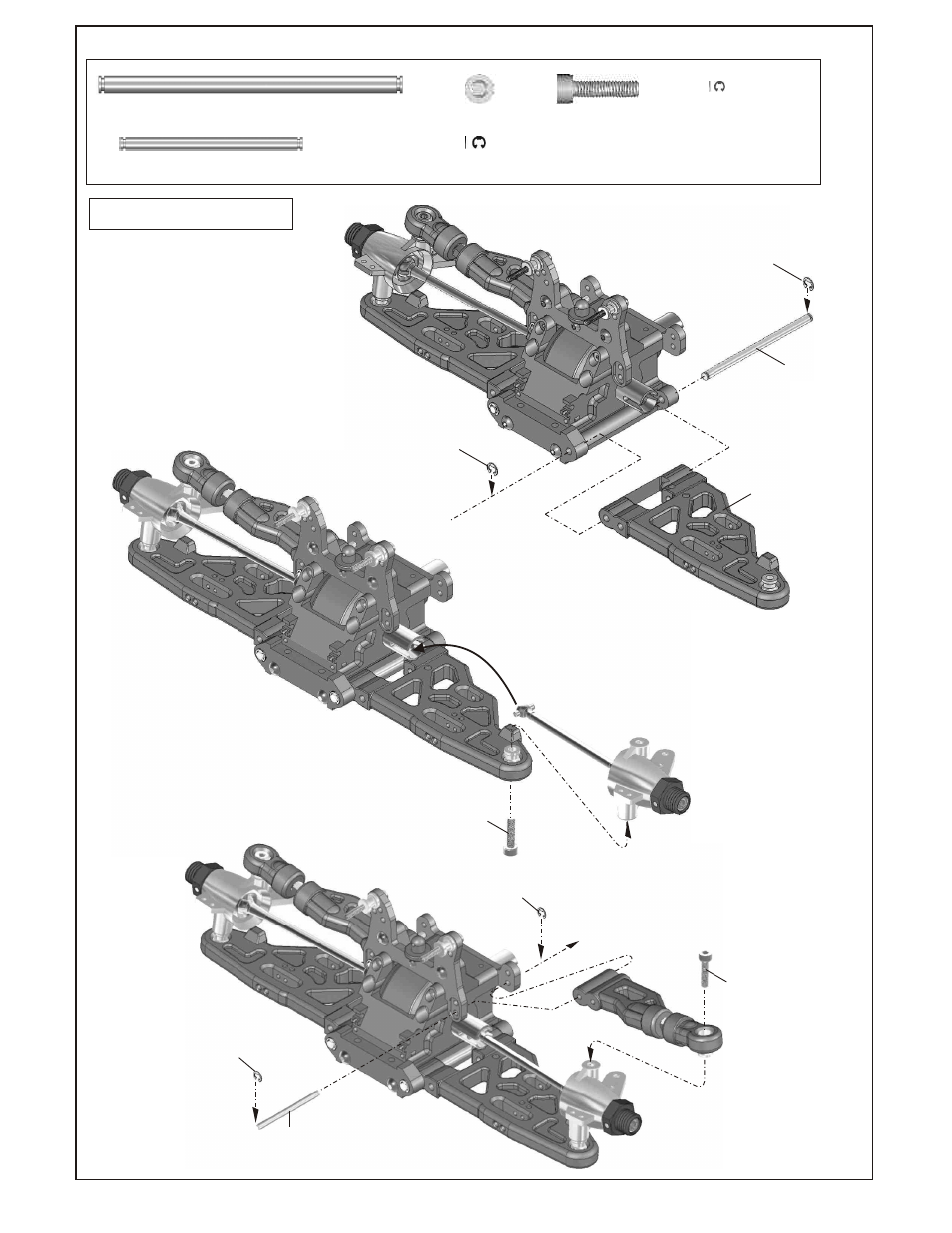

Assembly of the front arms – OFNA Racing Ultra LX Comp User Manual
Page 11
90020
2.5mm
E-Ring
90020
2.5mm
E-Ring
30151
4mm Arm Shaft
40104
4x16mm
Cap Screw
40104
4x16mm
Cap Screw
X2
X2
30151
4mm Arm Shaft
40104
4x16mm Cap Screw
90021
3mm E-Ring
X4
30152
3mm Arm Shaft
X2
90020
2.5mm E-Ring
X4
* Insert the rear drive shaft
into cap joint before assembly
the rear lower arm.
90021
3mm
E-Ring
90021
3mm
E-Ring
Assembly of the right and left hand side
are the same.
30152
Upper Arm Shaft
ASSEMBLY OF THE FRONT ARMS
40102
Front Lower Arm
