OFNA Racing Ultra LX Comp - Manual (Page 16)

x2 94006
3x18mm
Hex Screw
94003
M3x10mm
Hex Screw
30540
Front Plate
30380
Servo Saver
Post
34014
Front Stiffener
94005
3X15mm
Hex Screw
35318
M3 Nylon Nut x2
94005
M3x16mm Hex Screw
94003
3X10mm Hex Screw
94005
3X15mm Screw
x2
x3
x2
94006
M3x18mm
Hex Screw
36742
Servo Saver
Bushing
36750
Servo Saver
Connevtor
35313
3mm
Nylon Lock Nut
35313
3mm
Nylon Lock Nut
36743
6mm E-Ring x4
36740
Servo Saver
Top Adapter
36746
6mm
E-Ring
36740
Servo Saver
Horn B
36740
Plastic Tube
36740
Saver Saver
Shaft (Brass)
36743
6mm
E-Ring
36743
6mm
E-Ring
36743
6mm
E-Ring
36740
Saver Saver
Shaft (Brass)
36741
8x12mm
Washer
36741
Servo Saver
Spring
36740
Servo Saver
Hom A
36740
Servo Saver
Hom A
36700
7mm Steering
Ball End
36850
7mm
36850
7mm
36700
7mm Steering
Ball End
40018
4x56mm
Turnbuckle
36.5mm
*Made two steering rods
for left and right hand-side.
0 10 20 30 40 50
mm

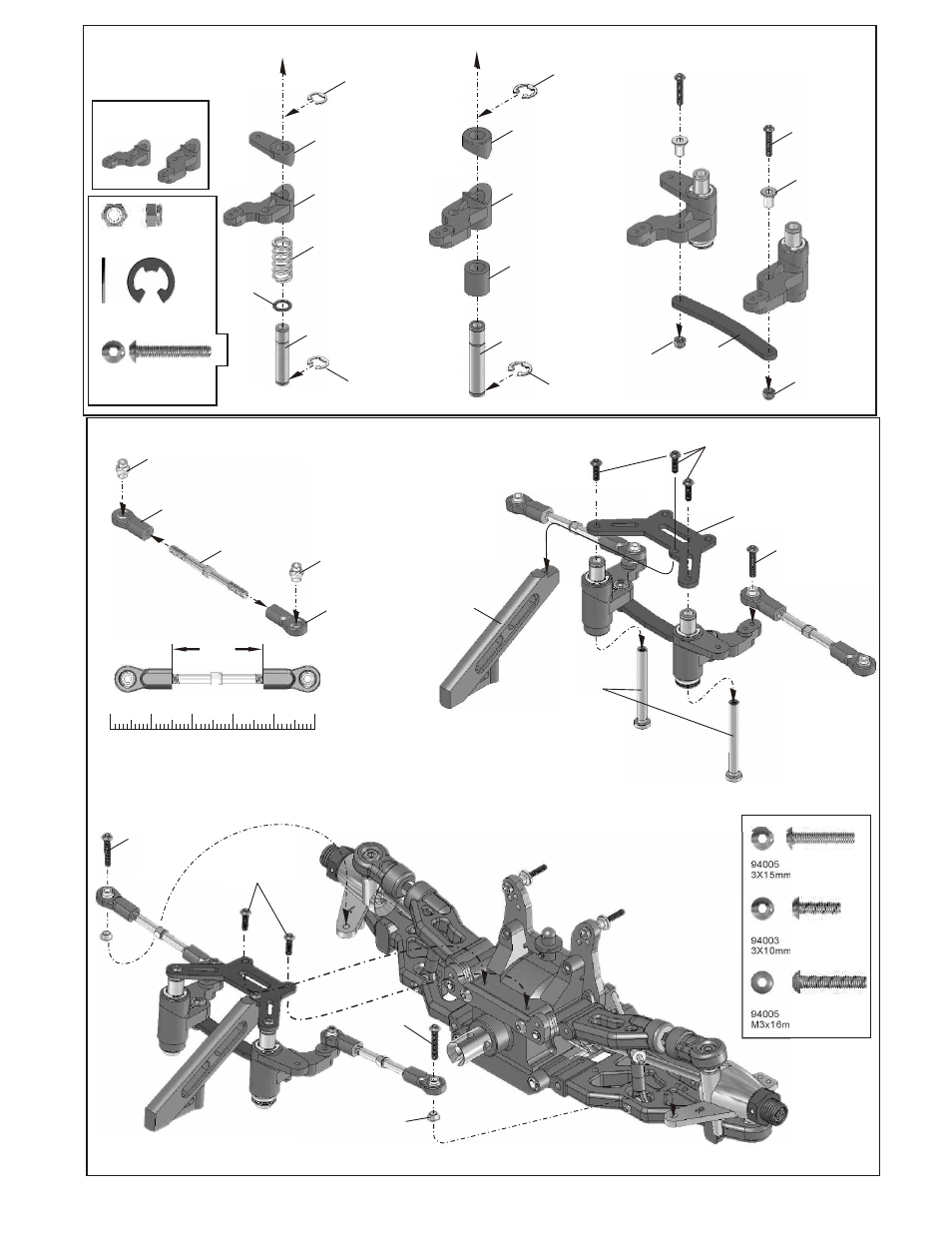

ASSEMBLY OF THE SERVO SAVER
ASSEMBLY OF THE STEERING TIE-ROD
40039
3mm
Tapered Washer
94005
M3x16mm
Hex Screw
94005
M3x16mm
Hex Screw
94003
M3x10mm
Hex Screw
36740
Servo Saver"A" and" B"
Plastic Set
