Assembly of the gear box onto chassis – OFNA Racing Ultra LX Comp User Manual
Page 17
30240
Front Bumper
94027
4x16mm
Flat Head
Hex Screw
94023
3x25mm
Flat Head
Hex Screw
94027
4x16mm
Flat Head
Hex Screw
94026
4x12mm
Flat Head
Hex Screw
94019
3x10mm
Flat Head
Hex Screw
36100
Center Drive
Shaft(Front)
94027
4x16mm
Flat Head
Hex Screw
940276
4x16mm
Flat Head Hex Screw
x8
94019
3x10mm
Flat Head Hex Screw
x2
94023
3x25mm
Flat Head Hex Screw
94026
4x12mm
Flat Head Hex Screw
x2
x2
*Insert drive shaft into
cap joint
A
A
Center Diff.
Assembly
* Insert the front
bumper before
assembly.

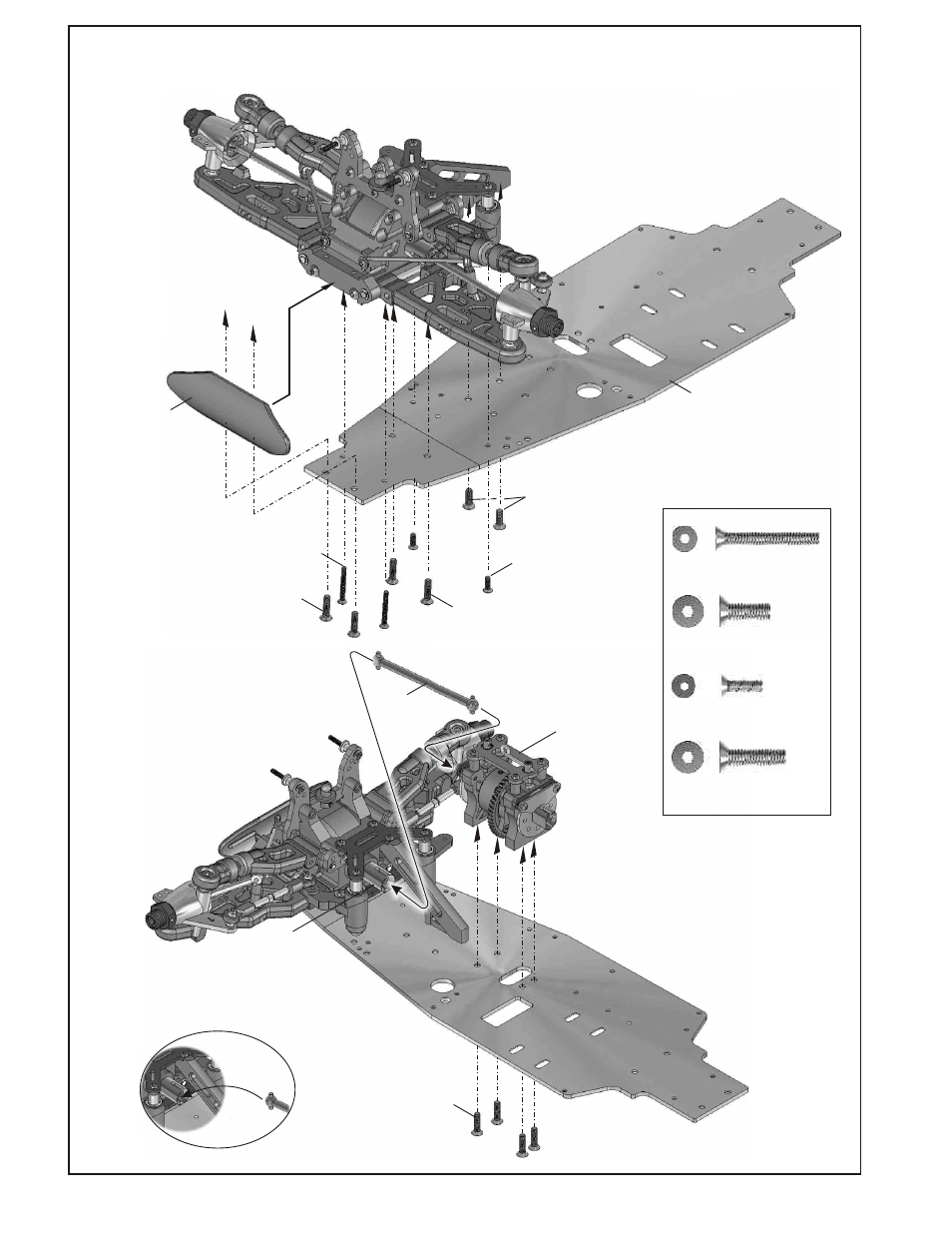

ASSEMBLY OF THE GEAR BOX ONTO CHASSIS
34016
Chassis
