Clip the caster adjuster in front upper arm, Assembly of the front stabilizer – OFNA Racing Ultra LX Comp User Manual

Page 12

background image

D

C

B

A

D

C

B

A

3x8mm
Hex Screw

X2

X2

3x8x0.8mm
Washer

3x8mm Hex Screw

40029
Stabilizer
Ball End

3x8x0.8mm
Washer

30341
Stabilizer Ball

30403
6mm Ball

40029
Stabilizer
Ball End

94035
M3x8mm
Set Screw

94006
3x18mm Hex Screw

M3x8mm Set Screw

X2

X2

94006
3x18mm
Hex Screw

A

B

94033
M3x3 Set Screw

X2

94033
M3x3
Set Screw

* Cut the plastic as shown.

40101
Caster Adjuster
(in Arm Parts Bag)

* Change the caster angle by
moving the caster adjuster in
different place..

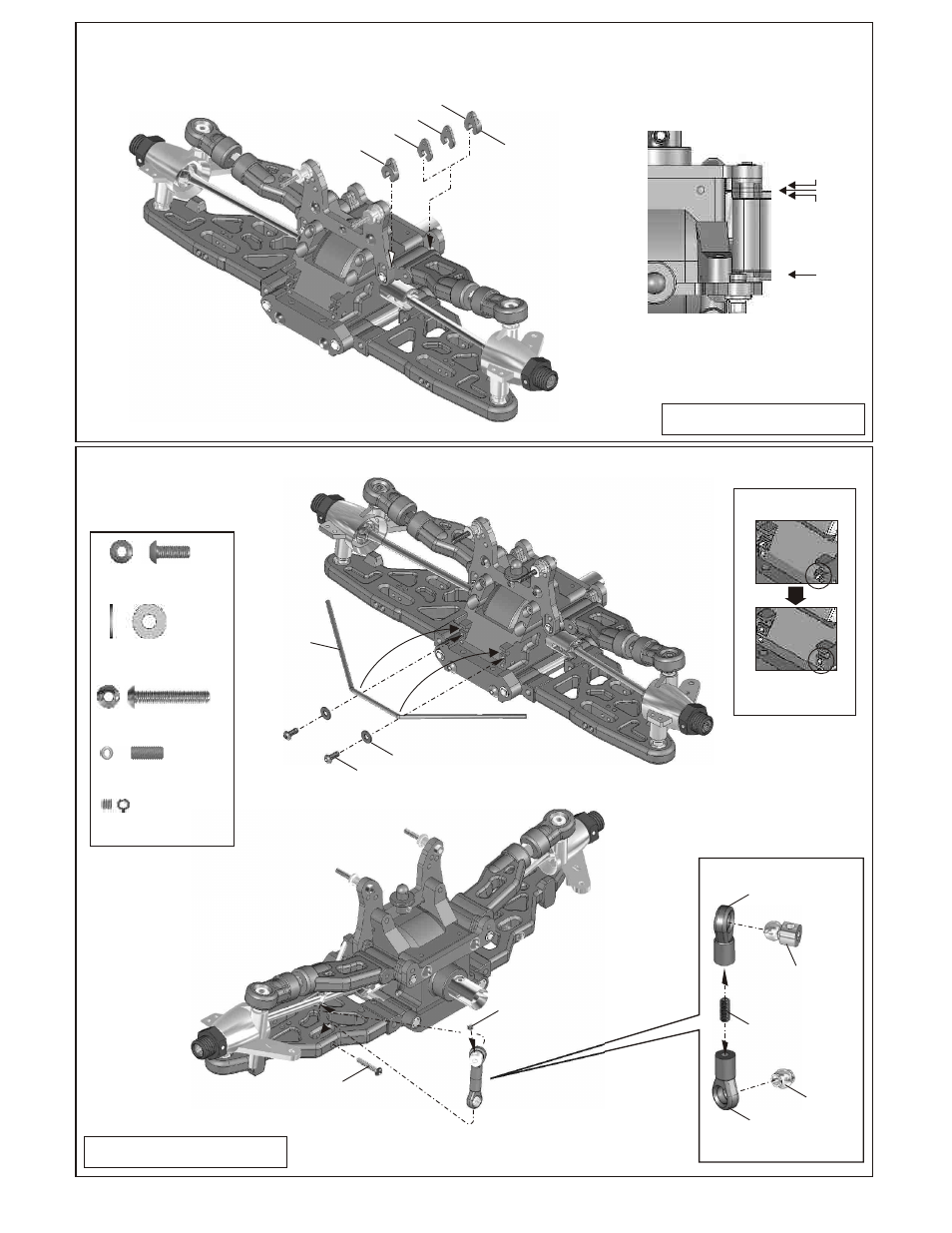

CLIP THE CASTER ADJUSTER IN FRONT UPPER ARM

Assembly of the right and left hand side
are the same.

Assembly of the right and left hand side
are the same.

ASSEMBLY OF THE FRONT STABILIZER

34027
Stabilizer
Kit
