OFNA Racing Ultra LX Comp User Manual
Page 21
30280
Turnbuckle
3X12mm
Hex Screw
Use the screw
provided with
your servo.
10114
5X12mm
Hex Screw
10114
5X12mm
Hex Screw
10711
Servo Horn
37370
6mm
Ball & Socket
37370
6mm
Ball & Socket
3X12mm
Hex Screw
10711
Servo Horn
Adapter
X2
3X12mm
Hex Screw
5X12mm
Hex Screw
4x12mm
Flat Head Screw
X1
40104
4x12mm
Flat Head
Hex Screw
40199
Plastic Ball
End
40199
Plastic Ball
End

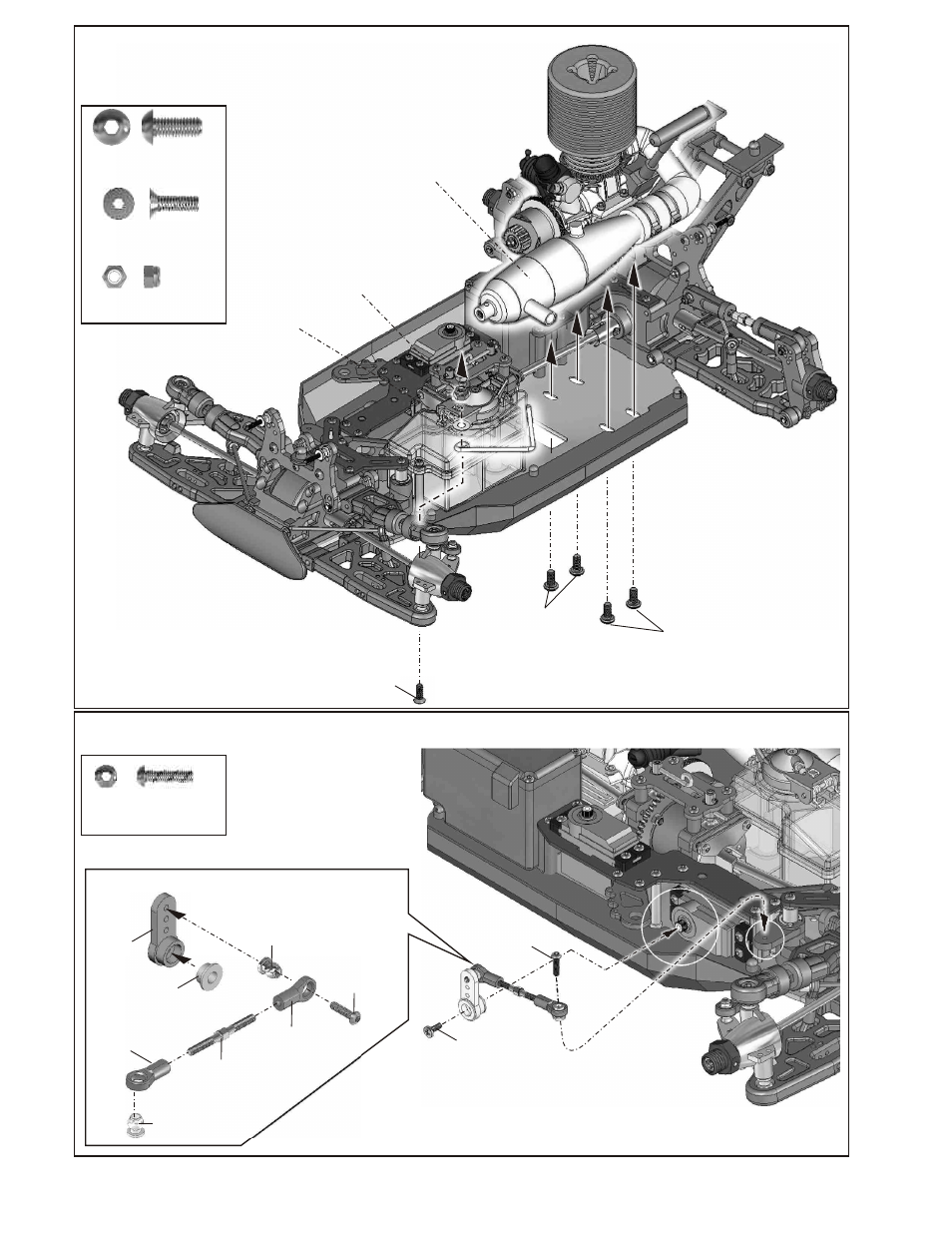

ASSEMBLY OF THE ENGINE ONTO CHASSIS
ASSEMBLY OF THE FRONT STEERING ROD
35314
M3 Nylon Nut
X1
3mm
Washer
35314
3mm
Nylon Nut
31990
Muffler Assembly
