OFNA Racing Blazer SST - Manual (Page 23)

Option:
10182
Silicone Tube, Red
10183
Silicone Tube, Yel.
10184
Silicone Tube, Blue
Step 1 Step 2
..........X1
10060
Manifold
10120
Manifold
Spring
5x4mm
Set Screw
Spur Gear
Clutch Bell
Loose or tighten 3x20mm cap screw
and 5x10mm hex screw to align spur
gear and clutch bell gear to 90 degree.
90 degree
Use note book paper to set gear
backlash between spur gear and
clutch bell gear. If the space is not
correct the spur gear will be
damaged.
10068
Manifold Adapter
31992
Pipe
10184
Silcone Tube
40050
Muffler Stay
Post
Nylon Straps
(Middle)
3x3mm
Set Screw
40051
Muffler
Stay
10114
Engine Mount
Screw

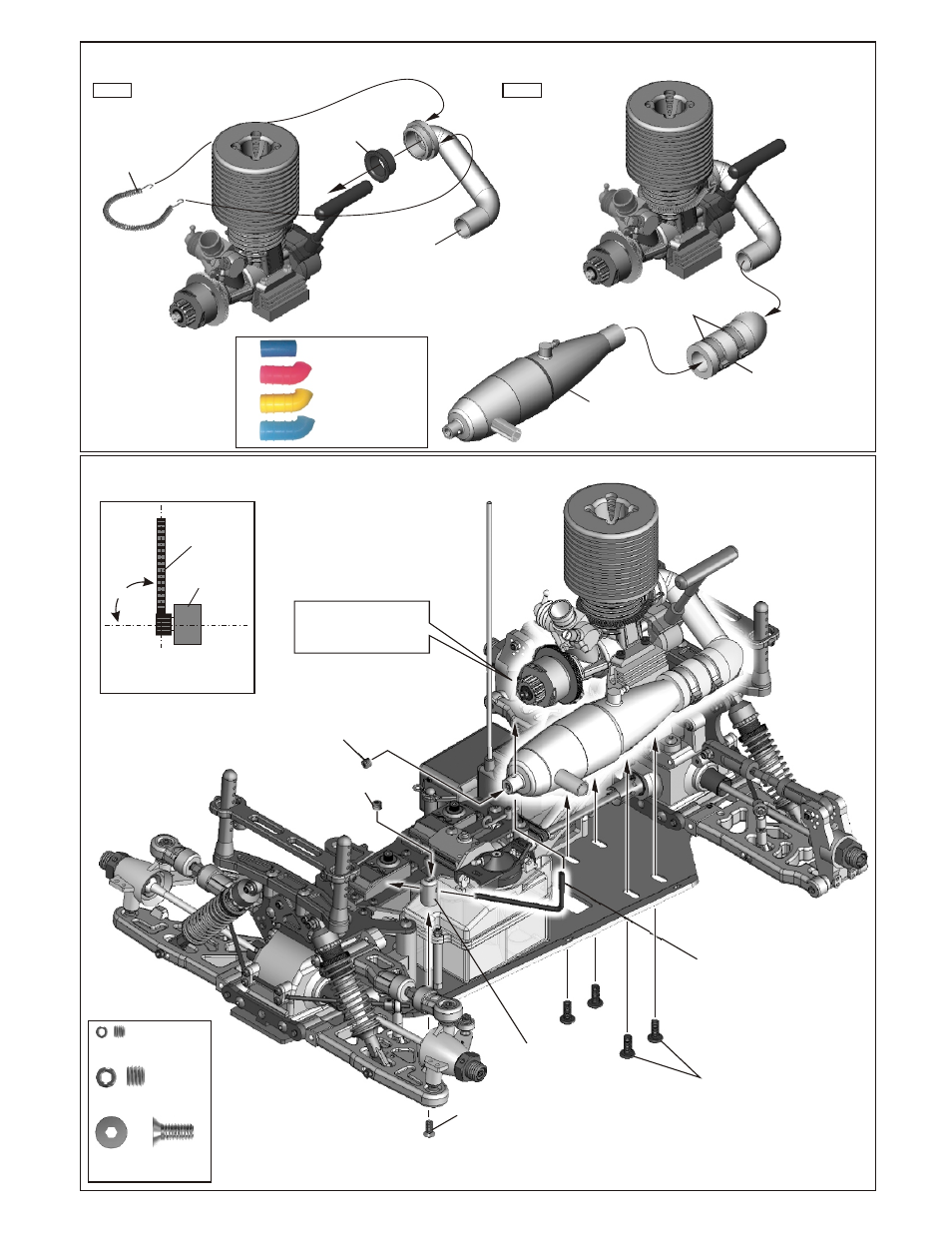

ASSEMBLY OF THE MANIFOLD AND MUFFLER
4x10mm
Flat Head Screw
4x10mm
Flat Head Screw
ASSEMBLY OF THE ENGINE ONTO CHASSIS
5x4mm
Set Screw
3x3mm
Set Screw
..........X1
..........X1
94036
94033
94033
94036
94026
94026
