OFNA Racing Blazer SST - Manual (Page 19)

..........X2
..........X2
..........X2
..........X2
..........X2
..........X2
Step 1
40058
Shock Shaft
Dust Cover

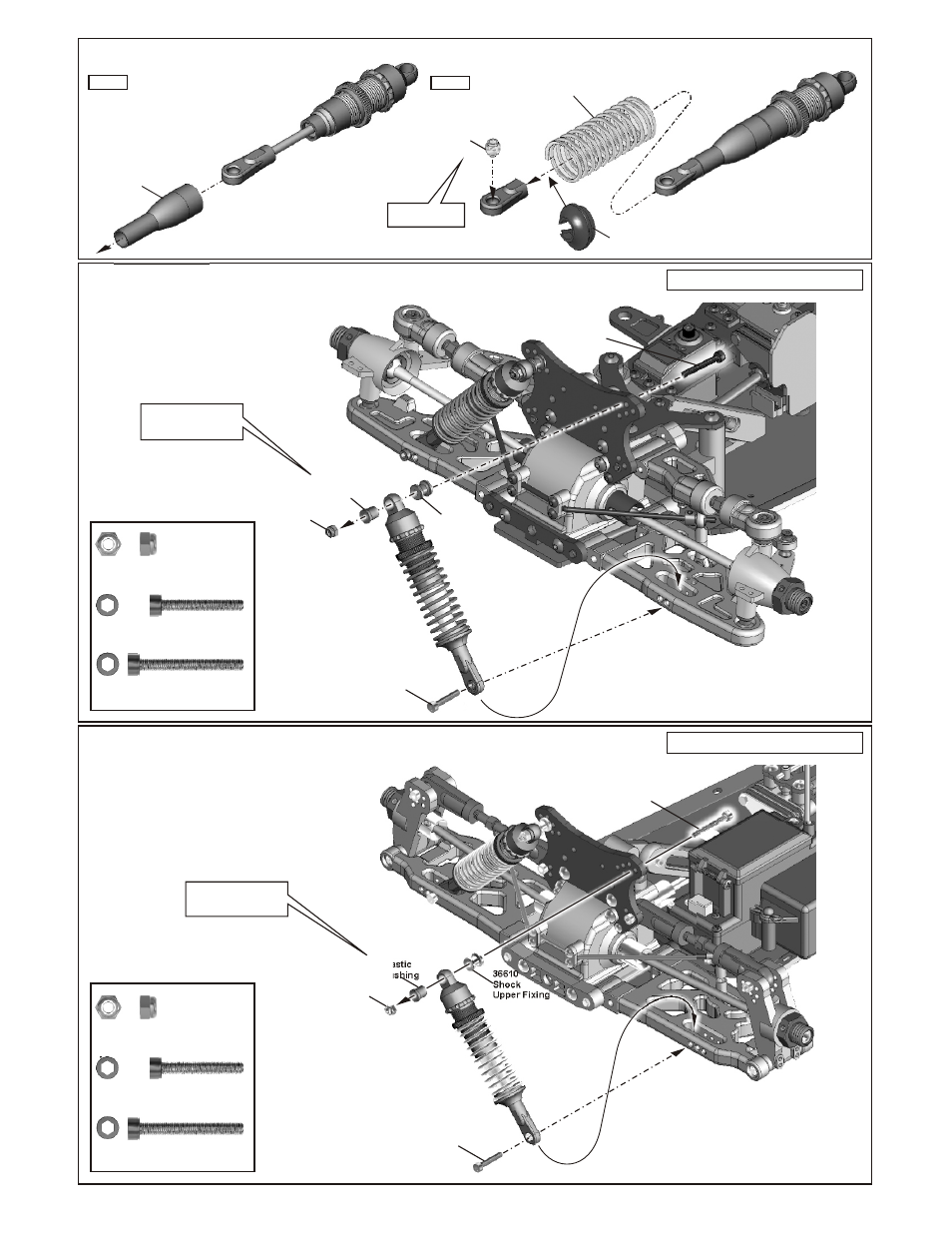

ASSEMBLY THE DUST COVER AND SHOCK SPRING
Step 2
30411
6mm
Ball
Push 6mm ball
joint into ball end.
40089
Shock Spring
(Black)
40063
Spring Holder
Plastic
Bushing
Plastic
Bushing
36610
Shock
Upper Fixing
36610
Shock
Upper Fixing
ASSEMBLY OF THE FRONT SHOCK ABSORBERS
ASSEMBLY OF THE REAR SHOCK ABSORBERS
Take the plastic bushing
from the shock plastic
parts tree.
Take the plastic bushing
from the shock plastic
parts tree.
M3
Nylon Nut
M3
Nylon Nut
M3
Nylon Nut
M3
Nylon Nut
3X20mm
Cap Screw
3X20mm
Cap Screw
3X20mm
Screw
3X20mm
Screw
3X25mm
Cap Screw
3X25mm
Cap Screw
3X25mm
Screw
3X25mm
Screw
Assembly of the right and left hand side are the same.
Assembly of the right and left hand side are the same.
30702
40056
35313
90018
90018
30702
35313
40056
35313
35313
30702
90018
90018
