Assembly of the fuel tank, Assembly of the clutch – OFNA Racing Blazer SST User Manual

Page 21

background image

Step 1

Step 3

Step 4

Step 2

Step 1

Step 2

..........X4

..........X1

..........X4

40047
Fuel Tank
Post

40047
Fuel Tank
Post

* Take the fuel tank
post from J-42
plastic parts tree.

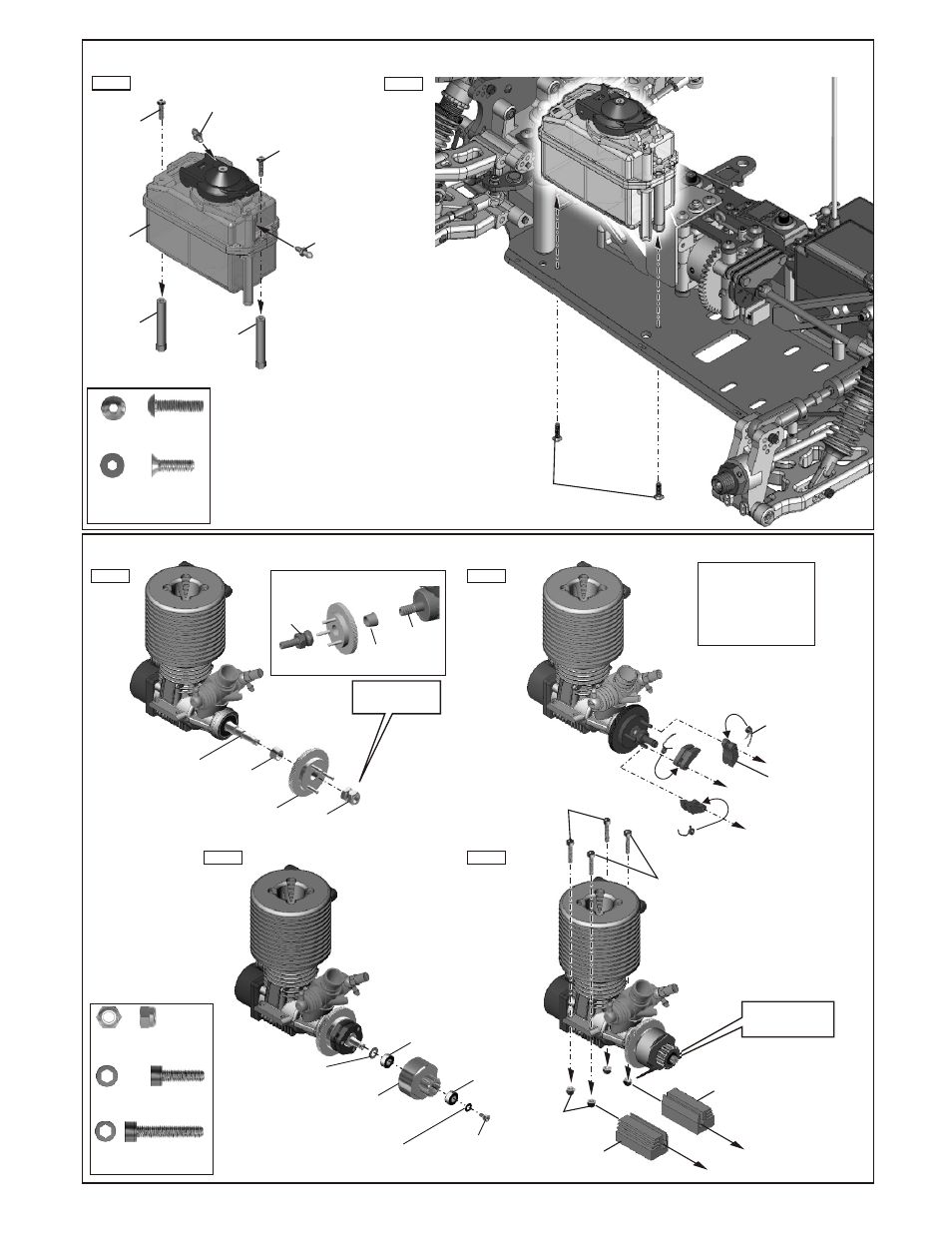

ASSEMBLY OF THE FUEL TANK

3x15mm
Hex Screw

3x15mm
Hex Screw

Pressure Nipple

Pressure Nipple

3x15mm
Hex Screw

40109
Fuel Tank

..........X2

..........X2

3x10mm
Flat Head Hex
Screw

3x10mm
Flat Head Hex
Screw

10330
7mm
Tapper Corn

10040
3 Pin
Flywheel

10098
SG Clutch Nut

Fit the flywheel using
a pair of the plier and
cross wrench.

Place the clutch shoes with
the clutch springs over the
3 pins of the flywheel.
Using a phillips screw driver
or needle nose pliers and
bend the small end of the
clutch spring behind the
pilot shaft 10091 or 10098
than press down.

10100
Clutch Spring

10010
Clutch Shoes

5x9x0.3mm
Washer

34010
5x10x4mm
Ball bearing

34010
5x10x4mm
Ball bearing

1039
13T
Clutch Bell

5x9x0.3mm
Washer

3x10mm
Cap Screw

M3
Nylon Nut

3x16mm
Cap Screw

3x10mm
Cap Screw

ASSEMBLY OF THE CLUTCH

Only use this 6.3mm tapered cone for
threaded crank shaft with drive nut..

SG Type
Crank Shaft

10091
Pilot Shaft

10330
6.3mm
Tapper Cone

Threaded
Crank Shaft

30480
Engine Mount

30480
Engine Mount

M3
Nylon nut

3x16mm
Cap Screw

3x16mm
Cap Screw

Put the nylon nut into
the groove of the
engine mount.

94005

94005

94005

94019

94019

30481

30481

30481

10099

10099

10099

30481

10099

30481
