OFNA Racing Blazer SST - Manual (Page 10)

36081
Wheel
Rear Hub
36053
8x16x5mm
Ball Bearings
36054
Alum.
Wheel Hub 8mm
36053
8x16x5mm
Ball Bearings
5X4mm
Set Screw
Do not tighten
set screw over tighten.
36850
7mm Ball
36850
7mm Ball
36860
5x60mm
Turnbuckle
5x4mm
Set screw
40065
Upper arm
Plastic Rod End
40065
Upper arm
Plastic Rod End
36055
2.5x16.8mm
Pin
36082
Rear Wheel
Axle Shaft
26mm

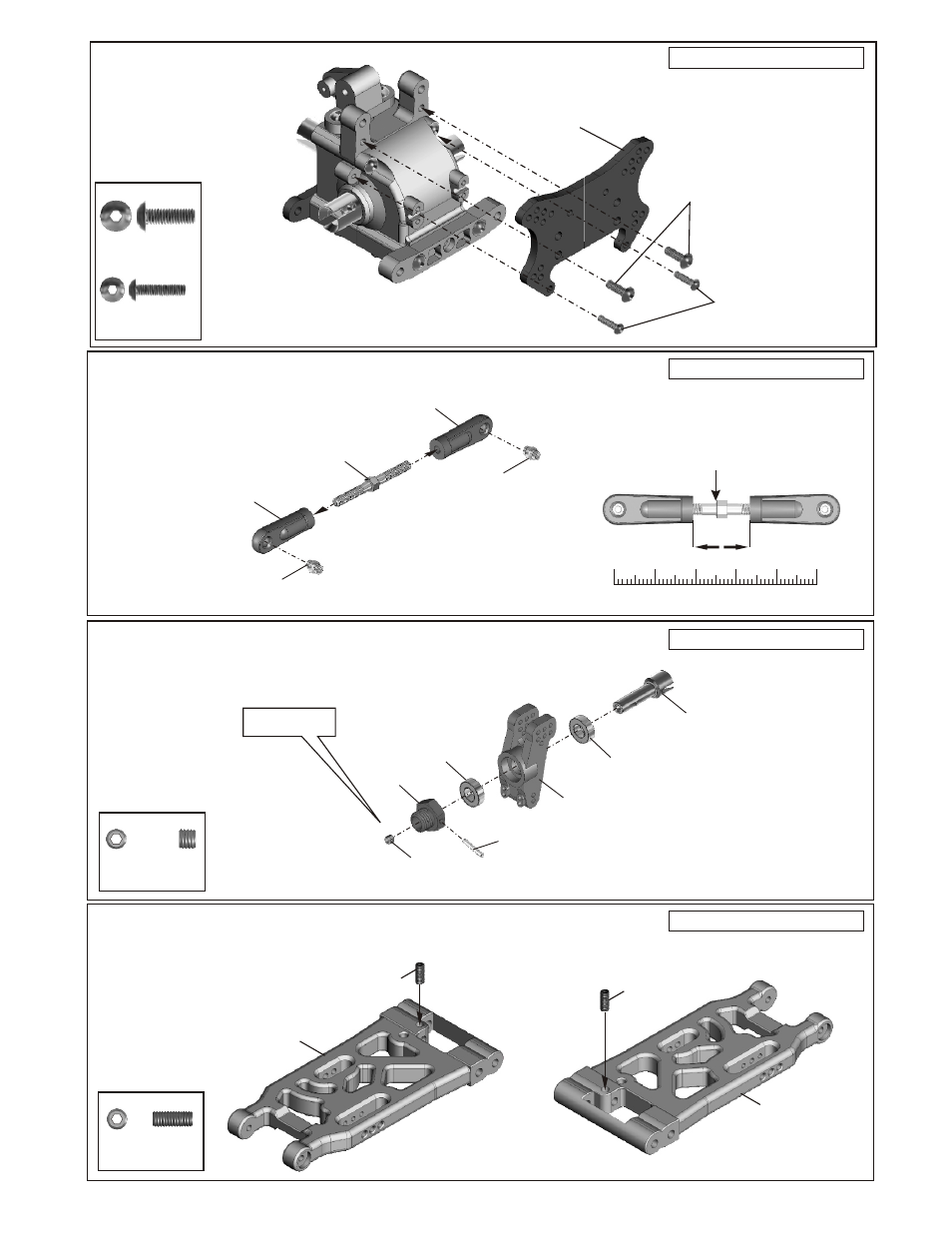

ASSEMBLY OF THE REAR WHEEL HUB
ASSEMBLY OF THE UPPER ARM ROD
*Builds two rear wheel hubs for use.
* Builds two upper arms for left and right hand-side.
* Anticlockwise mark.
0 10 20 30 40 50
mm
ASSEMBLY OF THE REAR SHOCK STAY
4x12mm
Hex Screw
4x12mm
Hex Screw
40116
Shock Tower
3x12mm
Hex Screw
3x12mm
Hex Screw
..........X2
..........X2
..........X2
ASSEMBLY OF THE FRONT LOWER ARMS
* A 4x10mm set screw is
used to adjust the ride
height.
4x10mm
Set Screw
4x10mm
Set Screw
40102
Rear Lower Arm
40102
Rear Lower Arm
4x10mm
Set Screw
..........X2
Assembly of the right and left hand side are the same.
Assembly of the right and left hand side are the same.
Assembly of the right and left hand side are the same.
Assembly of the right and left hand side are the same.
94010
94004
94010
94004
90026
90026
36870
36870
36870
