Assembly of the body post, Front) (rear) – OFNA Racing Blazer SST User Manual
Page 20
40117
Body Support
Plastic
40117
Body
40117
Body
40117
Body
40117
Body Post
Plastic

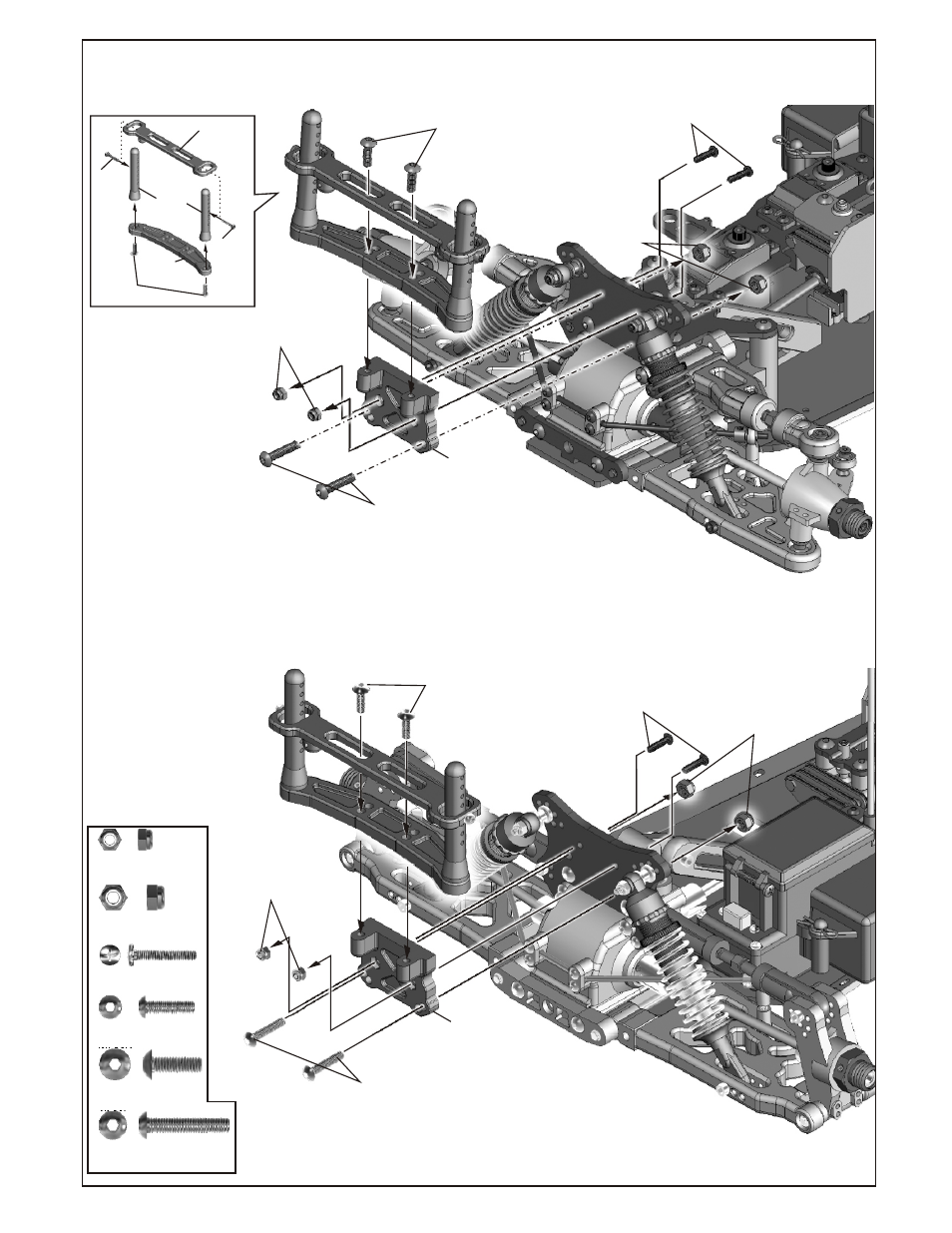

ASSEMBLY OF THE BODY POST
4x12mm
Hex Screw
4x20mm
Hex Screw
4x20mm
Hex Screw
4x20mm
Hex Screw
4x12mm
Hex Screw
4x12mm
Hex Screw
4x12mm
Hex Screw
3x12mm
Hex Screw
3x12mm
Hex Screw
3x12mm
Hex Screw
..........X4
..........X2
..........X2
..........X2
2.6x15mm
Screw
2.6x15mm
Screw
2.6x15mm
Screw
..........X2
..........X2
M4
Nylon Nut
M4
Nylon Nut
M4
Nylon Nut
M3
Nylon Nut
M3
Nylon Nut
M3
Nylon Nut
(FRONT)
(REAR)
94004
94010
35313
94010
94042
94012
35313
94042
94004
94010
94012
35313
94012
94010
94042
94004
