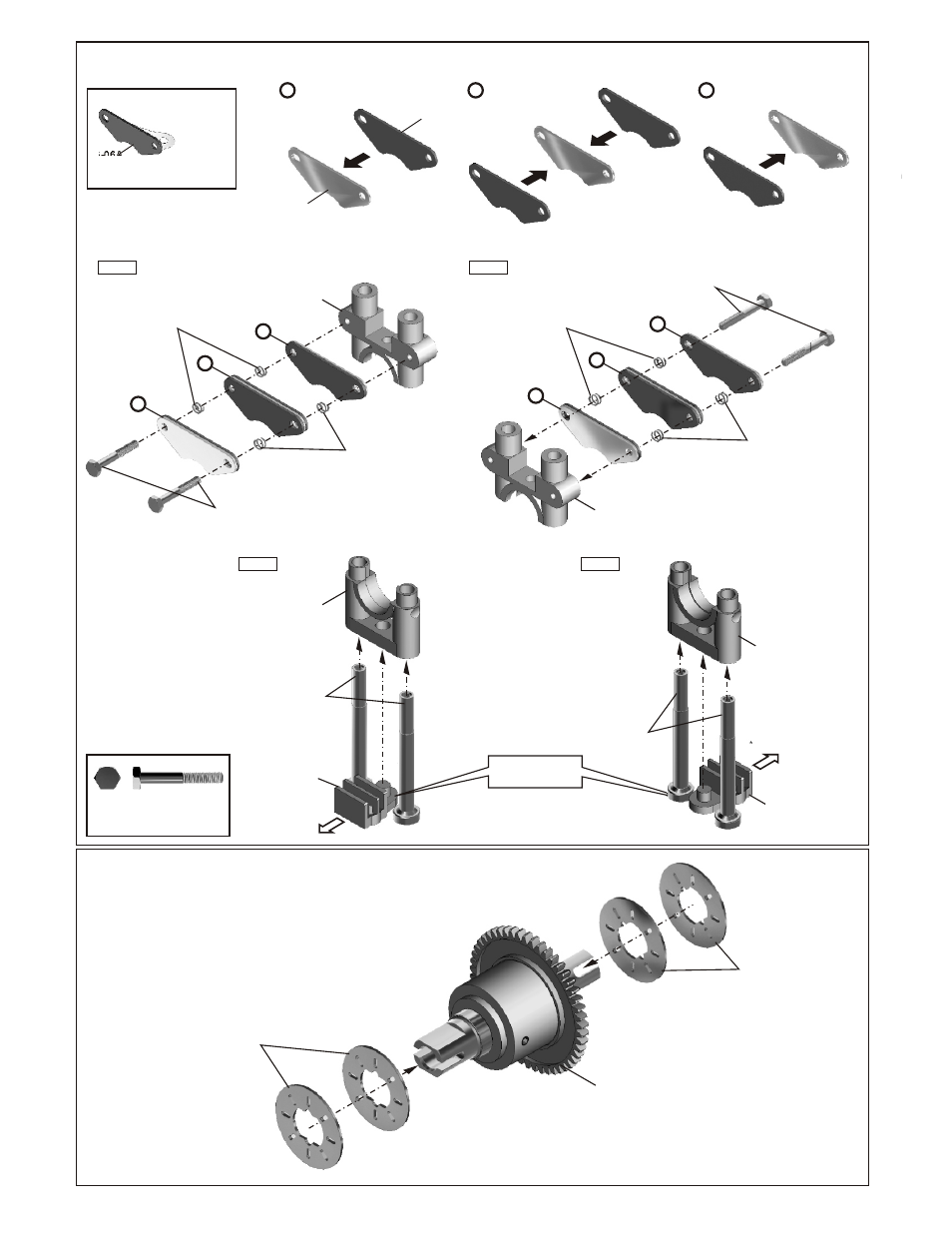

ASSEMBLY OF THE BRAKE AND CENTER DIFF. MOUNT
ASSEMBLY OF THE CENTER DIFF. INTO BRAKE DISK
36660
Brake Pad
40044
Brake Pad
Spring
40044
Brake Pad
Spring
40045
Brake Pad
Adjustment Screw
40045
M3x20L
Brake Pad Adjustment Screw
40043
Center Diff.
Mount Post
40043
Center Diff.
Mount Post
40040
Brake Disc
Holder
40040
Brake Disc
Holder
40040
Center Diff.
Mount
40040
Center Diff.
Mount
40040
Center Diff.
Mount
Assembly the brake disc
holder in the direction
shown.
*Towards the front.
*Towards the Rear.
36661
Brake Pad
Linings
G-06A
Brake Pad
Linings
Remove the double-side
tape before assembly.
A
A
B
C
B C
40044
Brake Pad
Spring
40044
Brake Pad
Spring
40045
Brake Pad
Adjustment Screw
40040
Center Diff.
Mount
A
B
C
40042
Brake Disk
40042
Brake Disk
Center Diff.
Assembly
