Assembly of the rear stabilizer, Assembly of the rear gear box onto chassis – OFNA Racing Blazer SST User Manual
Page 12
Step 1
Step 2

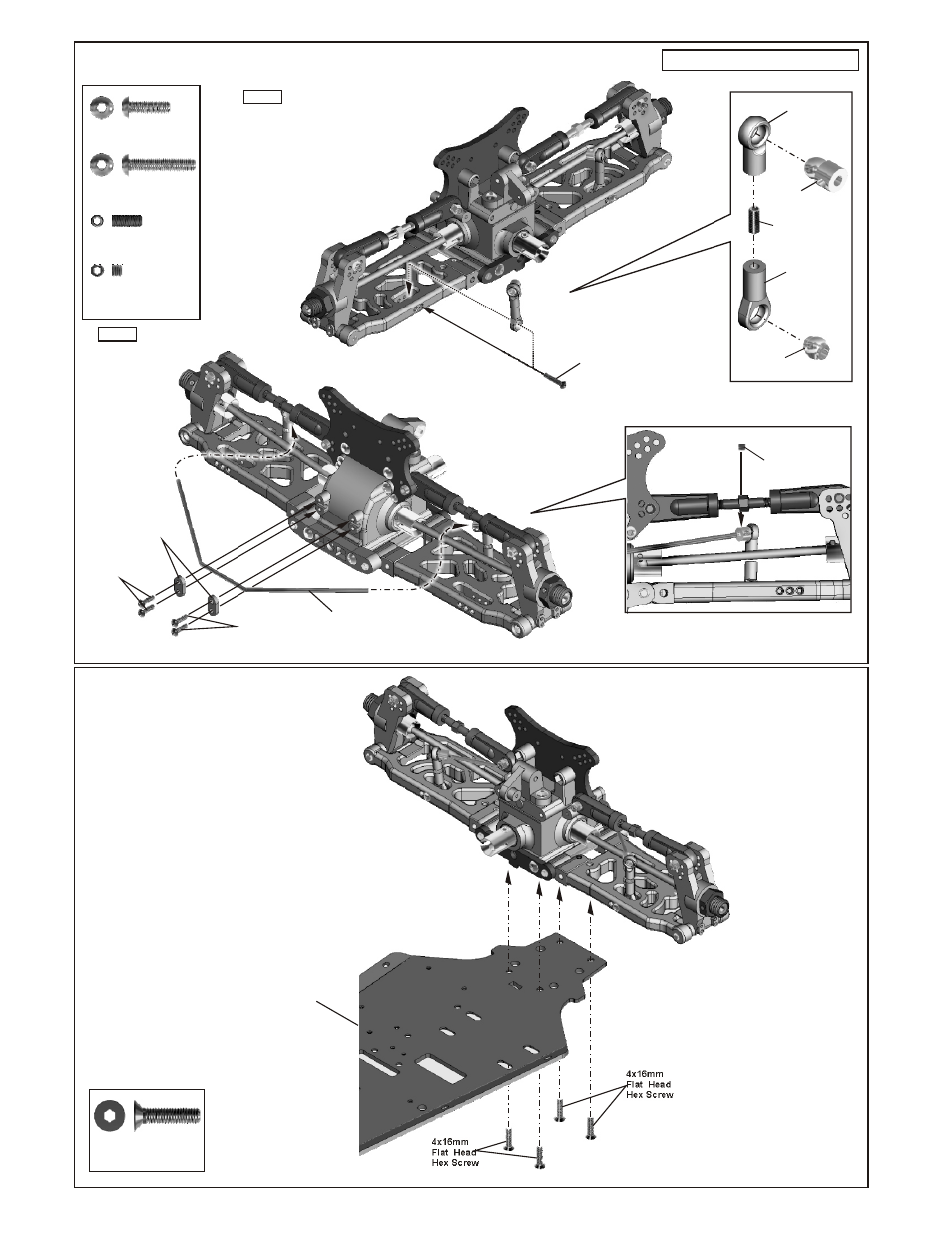

ASSEMBLY OF THE REAR STABILIZER
3x8mm
Set Screw
40029
Stabilizer
Ball End
30401
6mm
Ball End
30341
Stabilizer Ball
40199
Stabilizer
Ball End
..........X4
..........X2
..........X2
..........X2
3x10mm
Hex Screw
3x16mm
Hex Screw
3x16mm
Hex Screw
M3x8mm
Set Screw
M3x3
Set Screw
ASSEMBLY OF THE REAR GEAR
BOX ONTO CHASSIS
40019
Stabilizer
3x10mm
Hex Screw
40290
Stabilizer
Mount Plastic
3x10mm
Hex Screw
M3x3
Set Screw
4x16mm
Flat Head
Hex Screw
4x16mm
Flat Head
Hex Screw
4x16mm
Flat Head
Hex Screw
..........X4
40064
Chassis
Assembly of the right and left hand side are the same.
40290
94005
94035
94035
94005
40290
40290
94027
94027
94027
94033
94033
