Rane SR 4 - Manual (Page 3)

Manual-3

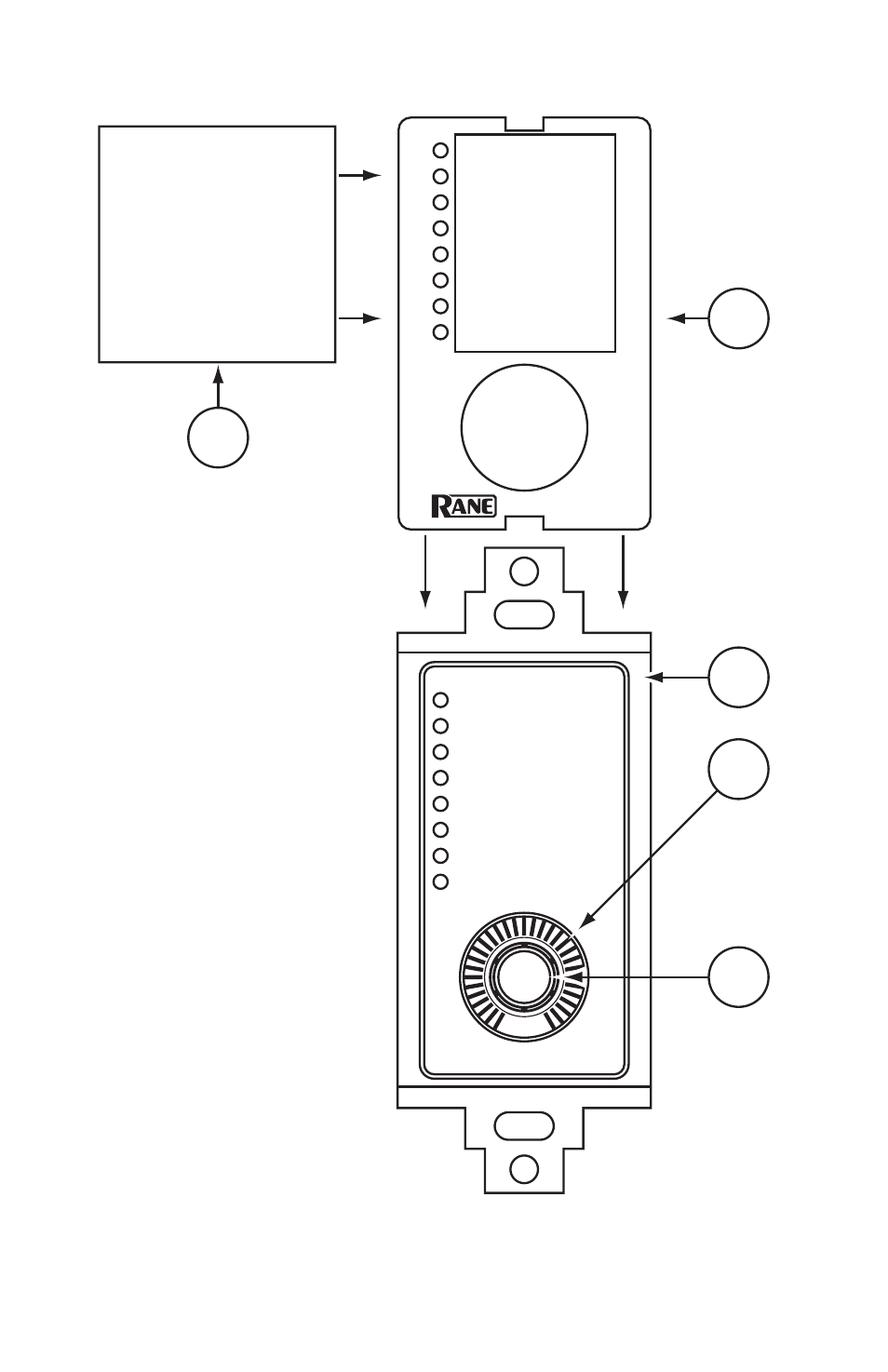

Front Panel Description
1 Paper insert lays behind the
Lexan label, and may be cre-
ated with a Microsoft Word™
template or the SR Label
Maker application. These are
found on the Drag Net CD-
ROM or downloadable at
www.rane.com/sr4.html .
2 Lexan label 3 colors in-
cluded: white (w/black logo),
almond (w/black logo) and
black (w/white logo).
3 Clear lens helps support dif-
ferent color templates which
mount behind the lens.
4 LED indicators . Indicate the
current “level” of the linked
parameter(s).
5 Encoder Knob with mo-
mentary push switch is the
user input to the SR 4.
2
1
3
5
4
Custom
paper
insert
slips
behind
the
Lexan
window
