Manual-2

SR 4

SMART REMOTE OPERATORS MANUAL

Reception
Theater
Office
Boardroom
Balcony
Production
Projection
Vineyard

Office
Small Dogs
Medium Dogs
Big Dogs
Chicken Coop
Pig Sty
Horse Barn
Goat Pen

Office
Foyer
Kitchen
Maid Quarters
Veranda
Dining Hall
Billiard Room
Cat Box

Quick Start

How many knobs does it take to turn on eight green LEDs? One...but at least

read this section to avoid unwelcome jokes.

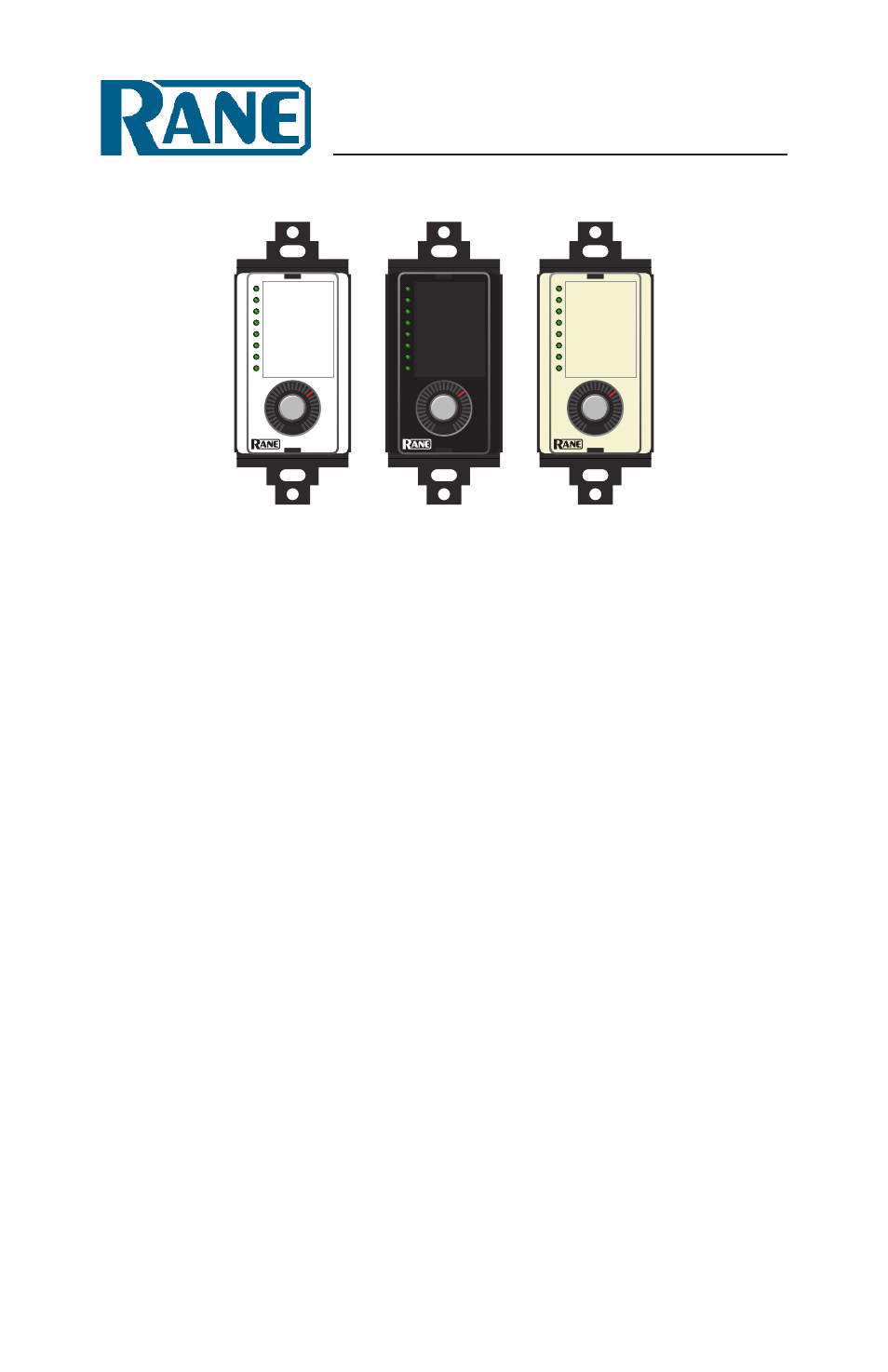

Architectural look.

Since Decora plates come in different colors, each SR

4 is shipped with 3 different color labels for installation behind the lens (we

ship them without an insert installed). Colors included are white (w/ black

logo), almond (w/ black logo) and black ( w/ white logo) which accommodate

most applications. The label has a transparent window so custom selection

lists can be seen. Custom selection lists are easily created using a Microsoft

Word™ template or the SR Label Maker application included on the Drag Net

CD-ROM or downloadable from www.rane.com/smart.html.

Address.

Set the Device Address rotary switch on the side of the SR 4;

addresses from 0 through 7 are valid. Each device connected to the same RS-

485 bus must have a unique address.

Wiring.

Use CAT 5 cable with a minimum of 2 twisted pairs to connect

to the SR 4. The use of DOG 4 cable may cause random barking in high traf-

fic areas (sorry, couldn't resist). Connect one twisted pair of wires to the “-V”

and “+V” terminals: “-V” must connect to the power supply ground and “+V”

must connect to +8 to +15 volts. Connect the second twisted pair of wires to

the “A” and “B” terminals: “A” connects to the RS-485 “data +” connection

and “B” connects to the RS-485 “data –” connection. When shielded CAT 5

cable is used, a chassis terminal is provided for shield termination.

Setup software.

The SR 4 is configured using Drag Net software included

in the box or available at www.rane.com/dragnet. See “Working with Smart

Remotes” on page 5.
WEAR PARTS: This product contains no wear parts.
