Carrier 48HJ004---007 - Manual (Page 53)

53
C06141

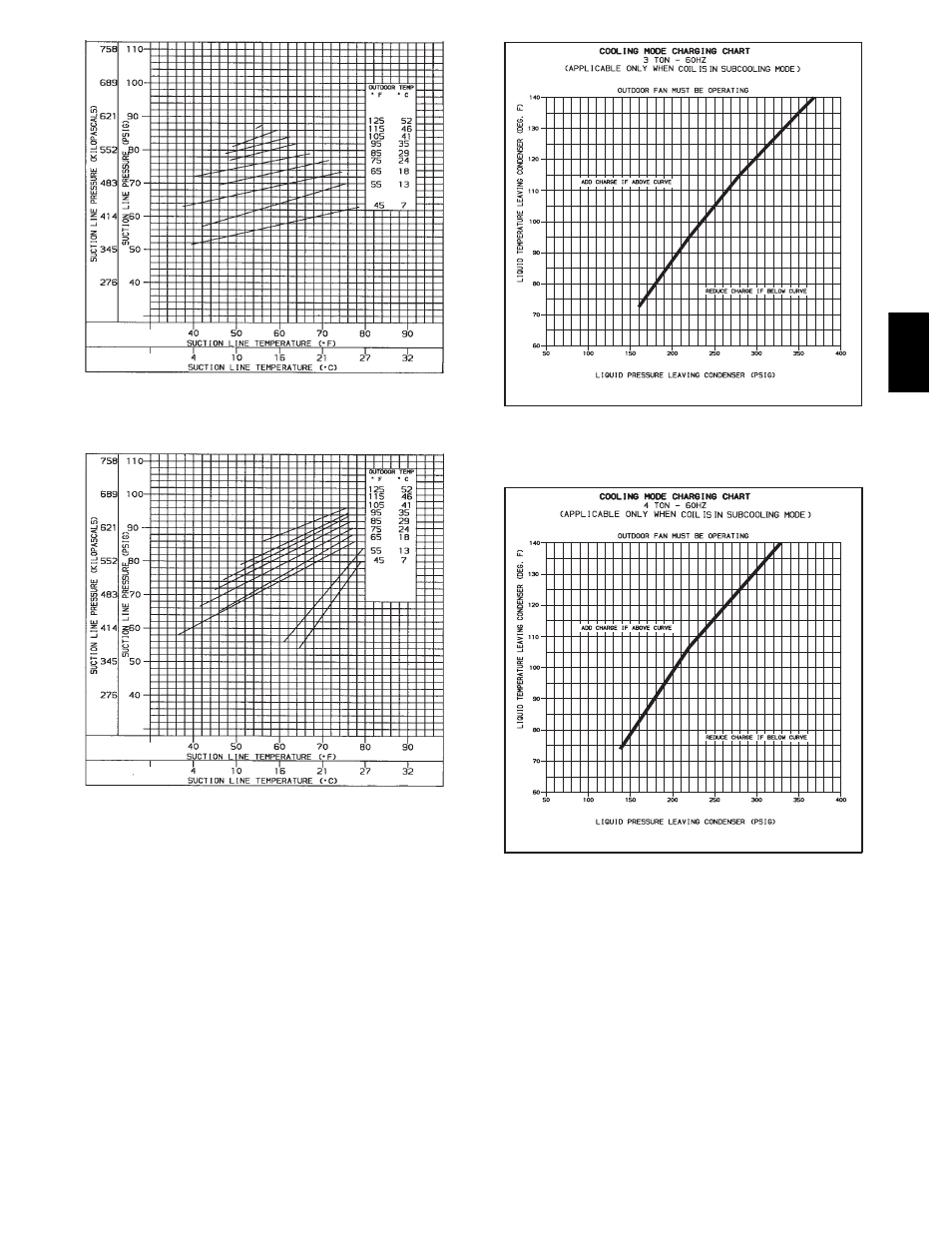

Fig. 62 --- Cooling Charging Chart,
Standard 48HJ006
C06142
Fig. 63 --- Cooling Charging Chart,
Standard 48HJ007
C06143
Fig. 64 --- Cooling Charging Chart, 48HJ004 with
Optional Humidi--MiZer Adaptive Dehumidification System
C06144
Fig. 65 --- Cooling Charging Chart, 48HJ005 with
Optional Humidi--MiZer Adaptive Dehumidification System
NOTE: When using the charging charts, it is important that only
the subcooling/reheat dehumidification coil liquid line solenoid
valve be energized. The subcooling/reheat dehumidification coil
liquid line solenoid valve MUST be energized to use the charging
charts and the outdoor motor speed controller jumpered to run the
fan at full speed.
