30

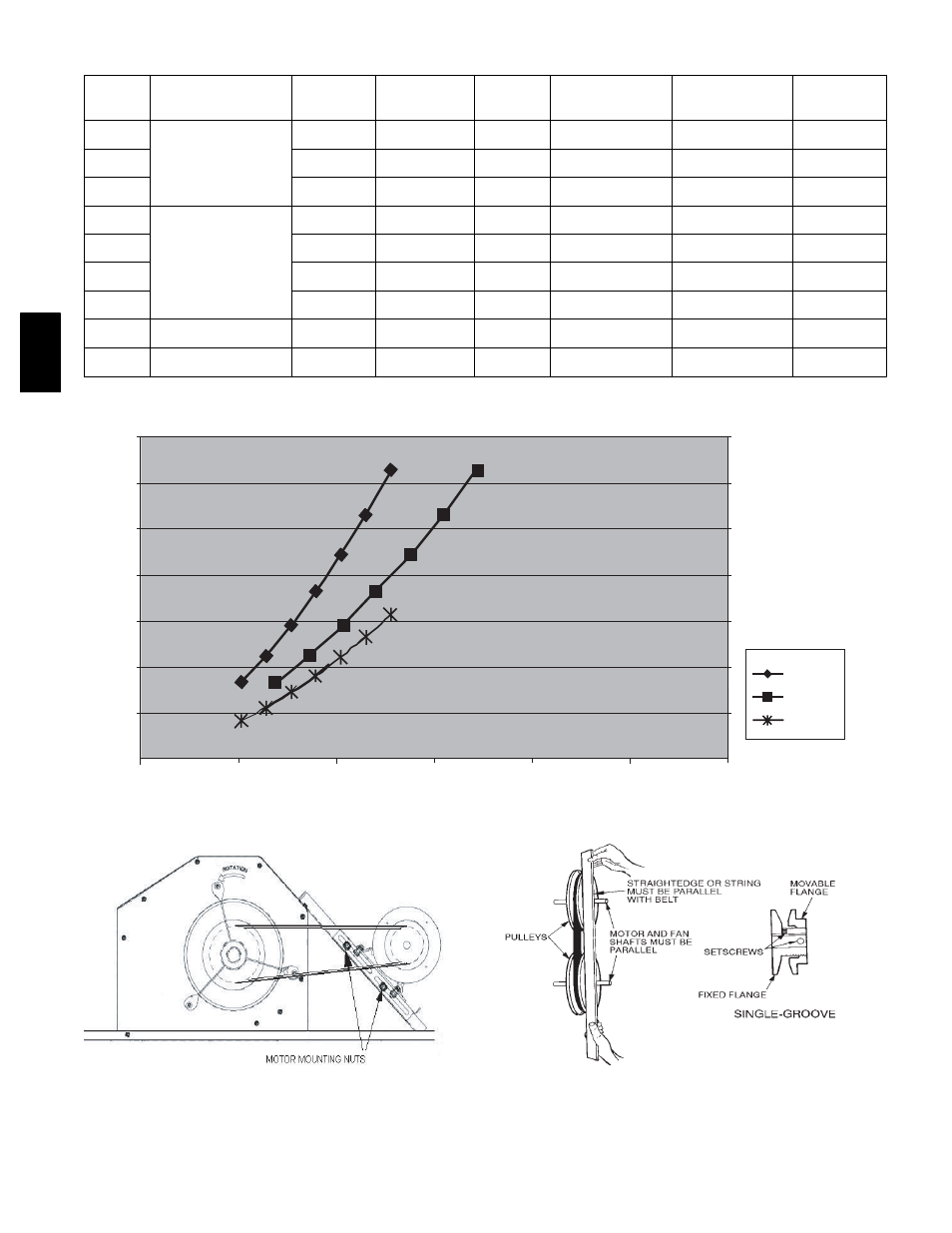

Table 8—CO
2
Sensor Standard Settings
SETTING EQUIPMENT OUTPUT
VENTILATION
RATE
(cfm/Person)
ANALOG
OUTPUT
CO
2
CONTROL RANGE
(ppm)
OPTIONAL
RELAY SETPOINT
(ppm)
RELAY
HYSTERESIS
(ppm)
1
Interface w/Standard
Building Control System
Proportional Any
0-10V
4-20 mA
0-2000 1000 50
2 Proportional Any
2-10V
7-20 mA
0-2000 1000 50
3 Exponential Any
0-10V
4-20 mA
0-2000 1100 50
4
Economizer
Proportional 15
0-10V
4-20 mA
0-1100 1100 50
5 Proportional 20
0-10V
4-20 mA
0- 900 900 50
6 Exponential 15
0-10V
4-20 mA
0-1100 1100 50
7 Exponential 20
0-10V
4-20 mA
0- 900 900 50
8 Health & Safety Proportional —
0-10V
4-20 mA
0-9999 5000 500
9
Parking/Air Intakes/
Loading Docks
Proportional —
0-10V
4-20 mA
0-2000 700 50
LEGEND
ppm — Parts Per Million
6000 5000 4000 3000 2000 1000 0
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
DEL
TA
P
IN.
WG
4 & 5 ton
6 ton
3 ton
C06133
Fig. 48 --- Humidi--MiZert Adaptive Dehumidification System Static Pressure Drop (in. wg)
C06134
Fig. 49 --- Belt Drive Motor Mounting
C06041
Fig. 50 --- Indoor--Fan Pulley Adjustment
