9
3. Setup Network Share
Overview:
•
Determine ECG Storage Location
•
Share Folder
•
Enable User Access
•
Enable Read/Write Permissions
3.1 To set up the LAN Server for access by the Clients the “ECG Data Storage” folder must be shared and given access to users on the network.

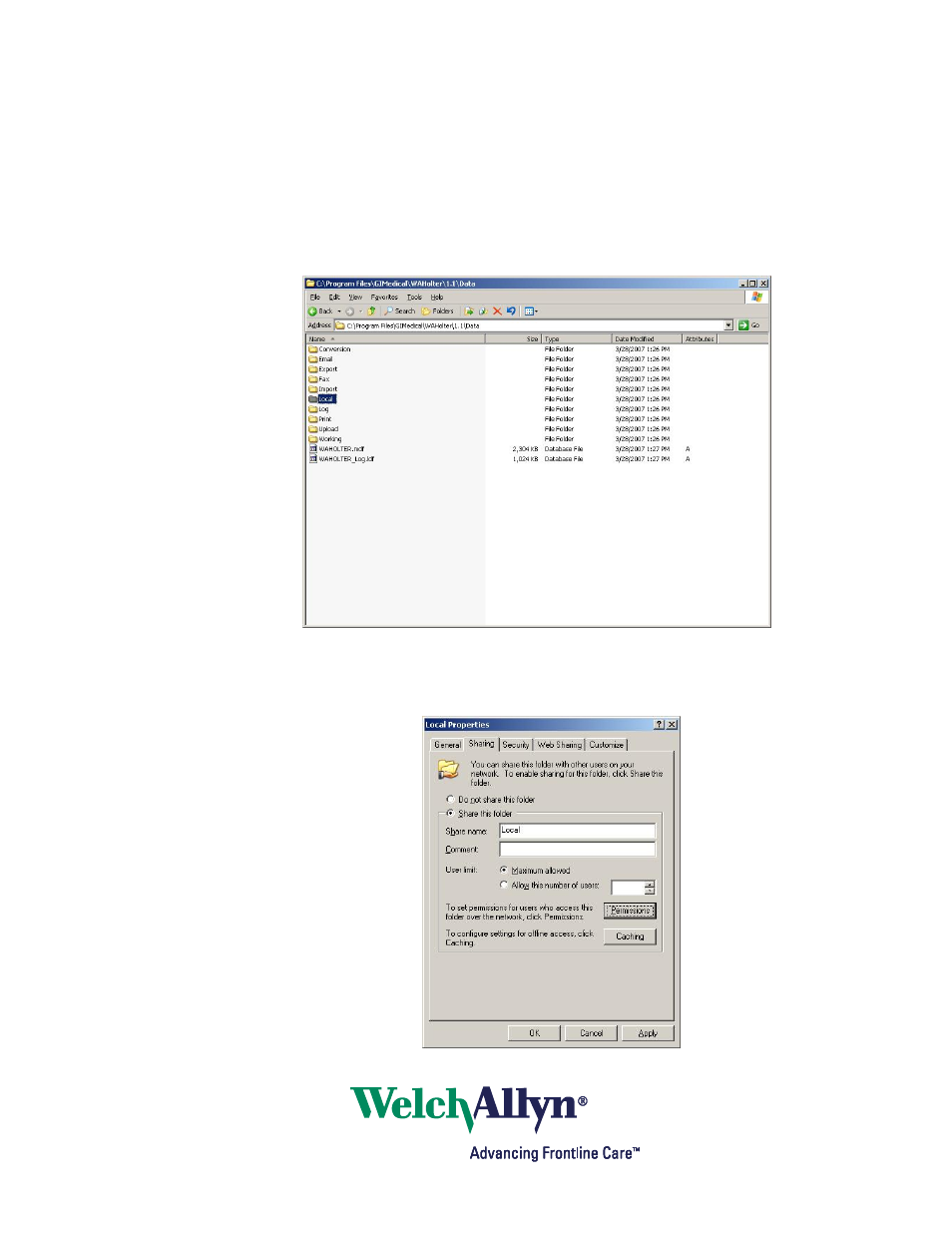

3.2 Navigate to the “ECG Data Storage” folder selected in step 2.3 above. By default this is “C:\Program
Files\GIMedical\WAHolter\1.1\Data\Local\”.
3.3 Right Click on this folder and choose “Sharing and Security…”. This will give the admin the ability to share this folder on the network.
Enable this by clicking the “Share this folder” button. The default name will be the name of the folder for example “Local” as seen below. It
is recommended to give a more descriptive share name such as “WAShare” but this is not required. This share name will be used later when
configuring the application settings.
