Welch Allyn Holter Software PCH100 and PCH200, LAN - Installation Guide - Manual (Page 8)

8
2. Installing the LAN Server
Overview:
•
Start installation guide beginning with step 2 Install Holter Application
•
Select LAN system type
•
Select LAN Server install folders
•
Complete installation guide.
Note: Prior to re-installing a LAN server, the user will be required to remove the registry entry for WAHolter.
2.1 Refer to document 006-700-0075 (WA Holter System Instruction Guide) for installing the application. Follow the instructions for
Standalone Installation (section 2.2 and 2.3) and stop when the following screen is displayed.

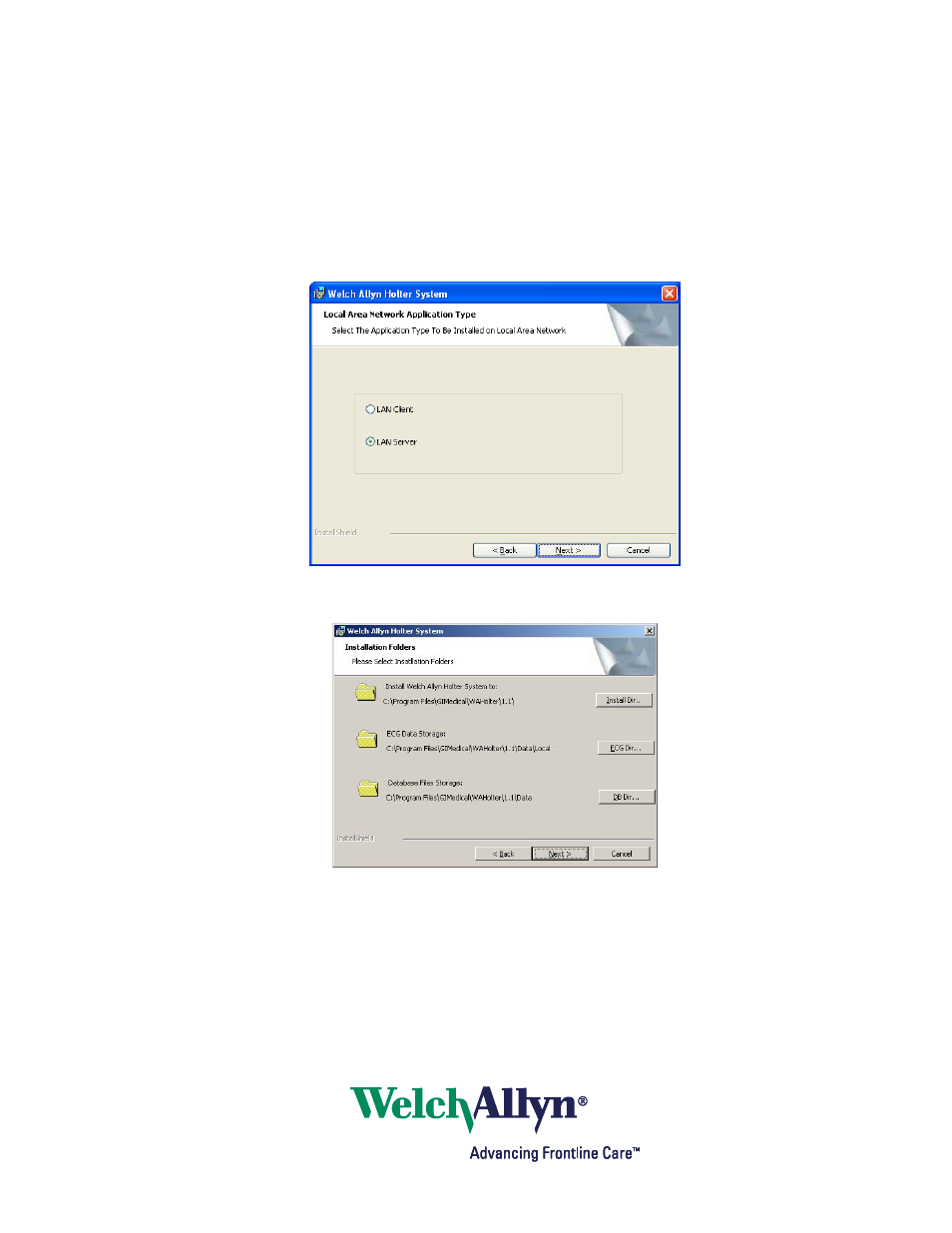

2.2 This screen will appear prompting the user to select which product to install. Select LAN Server then proceed by clicking “Next”.
2.3 For the LAN Server, a different screen will appear for folder directories as shown below.
2.4 The Server installation provides a way for the user to customize where the application, database, and data files are located. Each directory
location will have a button across from it allowing the user to navigate to and change the default installation directory. Note that the “ECG
Data Storage” location is very important and must be set to a location that will be made accessible to all Client users. Finish this step by
clicking “Next”.
2.5 Using 006-700-0075(WA Holter System Instruction Guide) complete the Standalone Installation instructions following any additional
instructions required by the guide.
