34
Patient monitoring
Welch Allyn Propaq Encore Vital Signs Monitor
Impedance pneumography selections
If your Propaq Encore includes the Impedance Pneumography Option, the following
selection is also available:
The Size function “increases” and “decreases” the ECG or RESP waveform size. Each
time you press a SIZE button, the waveform approximately doubles in height. When you
reach the largest waveform size, the next press displays the smallest size.

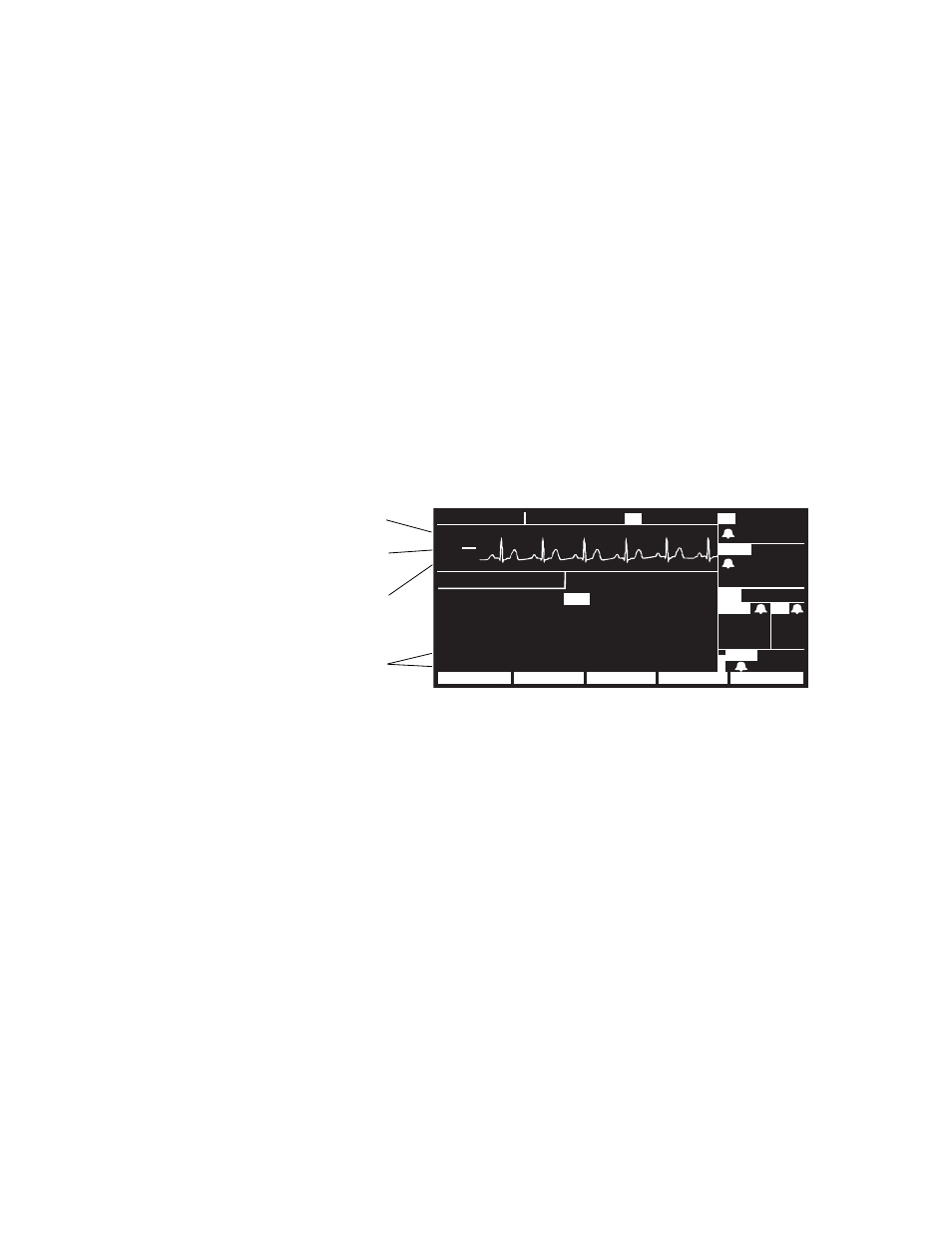

When you press MORE in the first ECG/RESP Menu, a status window appears showing
you the current ECG/RESP settings and additional selections.
The Size function “increases” or “decreases” the ECG or RESP waveform size. Each time
you press a SIZE button, the waveform approximately doubles in height. When you reach
the largest waveform size, the next press displays the smallest size.
ECG SIZE
Selects the ECG waveform size; sizes are shown in millivolts per
centimeter (.2, .5, 1, 2, or 4 mV/cm) to the left of the waveform.
ECG LEAD
Selects the ECG lead. The available leads are lead I, II, III, aVR, aVL,
aVF, or V. The Propaq's factory default lead setting is Lead II.
RESP SZE
Selects the RESP waveform size.
HR/PR TONE
Sets the heart tone loudness to LOW, MEDIUM, HIGH, or OFF. If
SpO
2
is monitored, the pitch of the tone varies with the SpO
2
value.
PACER
DISPLAY
Turns on and off the pacer indicator in the ECG waveform.
ECG
BANDWIDTH
This selection allows you to determine the bandwidth for the data
sent to the display and the printer. If the selection is Extended, the
bandwidth is 0.05-40 Hz. If the selection is Monitor, the bandwidth is
0.5-40 Hz.
Note
The QRS detector sensitivity threshold is not affected by changing the ECG
display size. Likewise, the RESP breath detector threshold is not affected by
changing the RESP display size.
RESP LEAD
Selects the RESP lead. Choices are RA-LA and RA-LL, and choice is
independent of ECG lead selection. Experiment with placement for
best signals.
RESP
Turns impedance pneumography (RESP channel) on or off.
NIBP
mmHg
NEXT
PREV MENU
CHANGE
MCO
2
BR
SpO
2
PA
HR
T
1
NIBP
18:45:28
III
1
mV
cm
MON
ECG/RESP
HR/PR TONE :
LOW
PACER DISPLAY: ON
ECG BANDWIDTH: MONITOR (0.5-40Hz)
RESP LEAD : Ld1 (RA-LA)
RESP : ON
102.3
¡
F
35/ 18
35 12
92
80
( 85)
122
58
Selected ECG lead
Sensitivity factor
Bandwidth Selection
Available with the Impedance
Pneumography Option
