Reference Guide Getting started 13
Patient connections

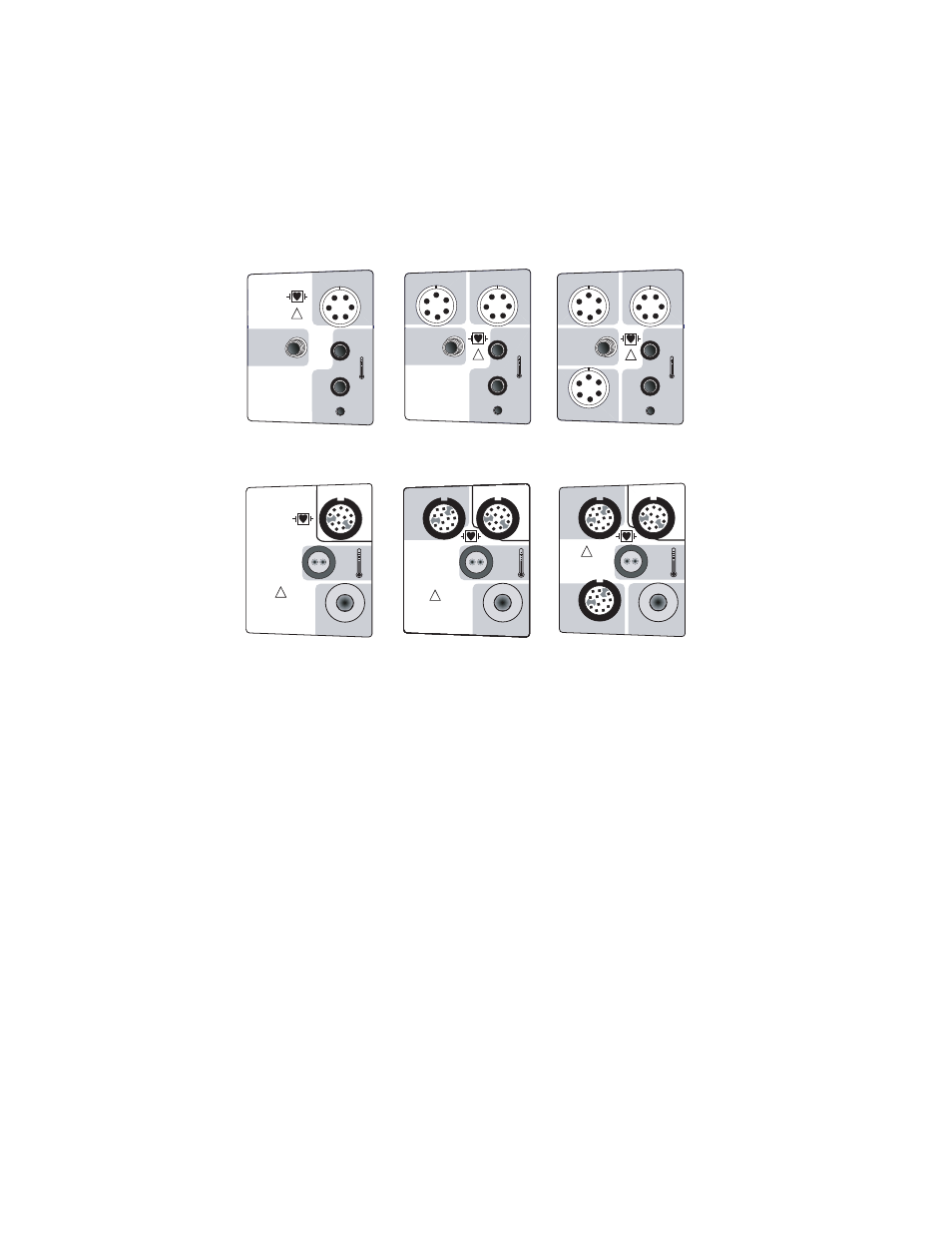

The left side panels differ depending on the Propaq Encore model. All models have ECG,
NIBP, and two temperature connectors. The Propaq Encore 204 left side panel includes
one invasive-pressure connector, and the Propaq Encore 206 includes two invasive-
pressure connectors.
On Propaqs with the Hewlett-Packard connector option, all models have only one
temperature connector, the YSI 400 connector.
