CardioPerfect Workstation

PEDMEANS ECG Interpretation Module Physicians Manual

DIR 80015051 Rev. C

54 / 55

Continuous age-dependent normal limits

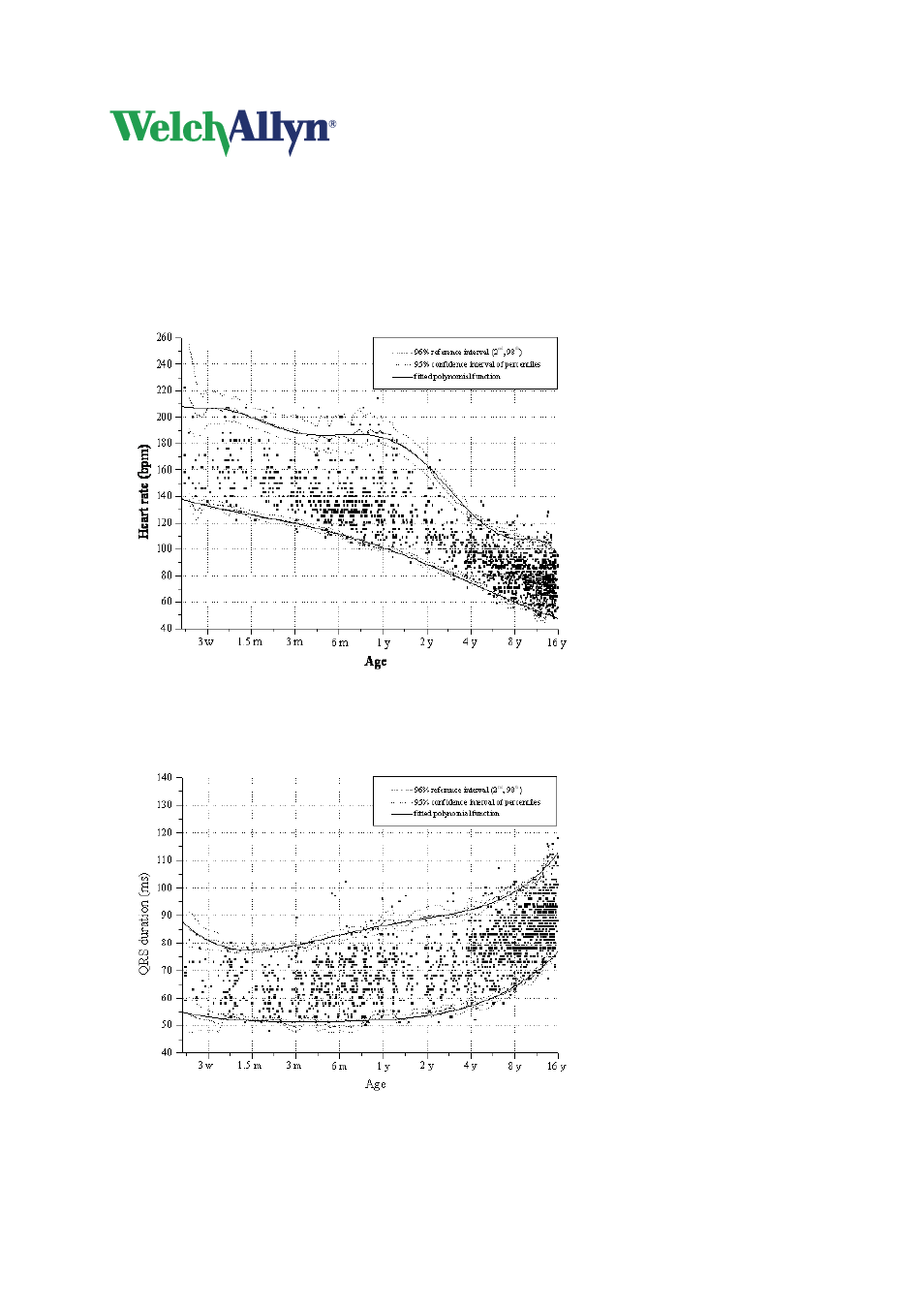

The figures show continuous normal limits for heart rate and QRS duration, as an illustration of the
age-dependent curves used in the PEDMEANS program.

Figure A1. Continuous age-dependent normal limits for heart rate.

Figure A2: Continuous age-dependent normal limits for QRS duration.
