Directions for Use Connections and Assembly 17

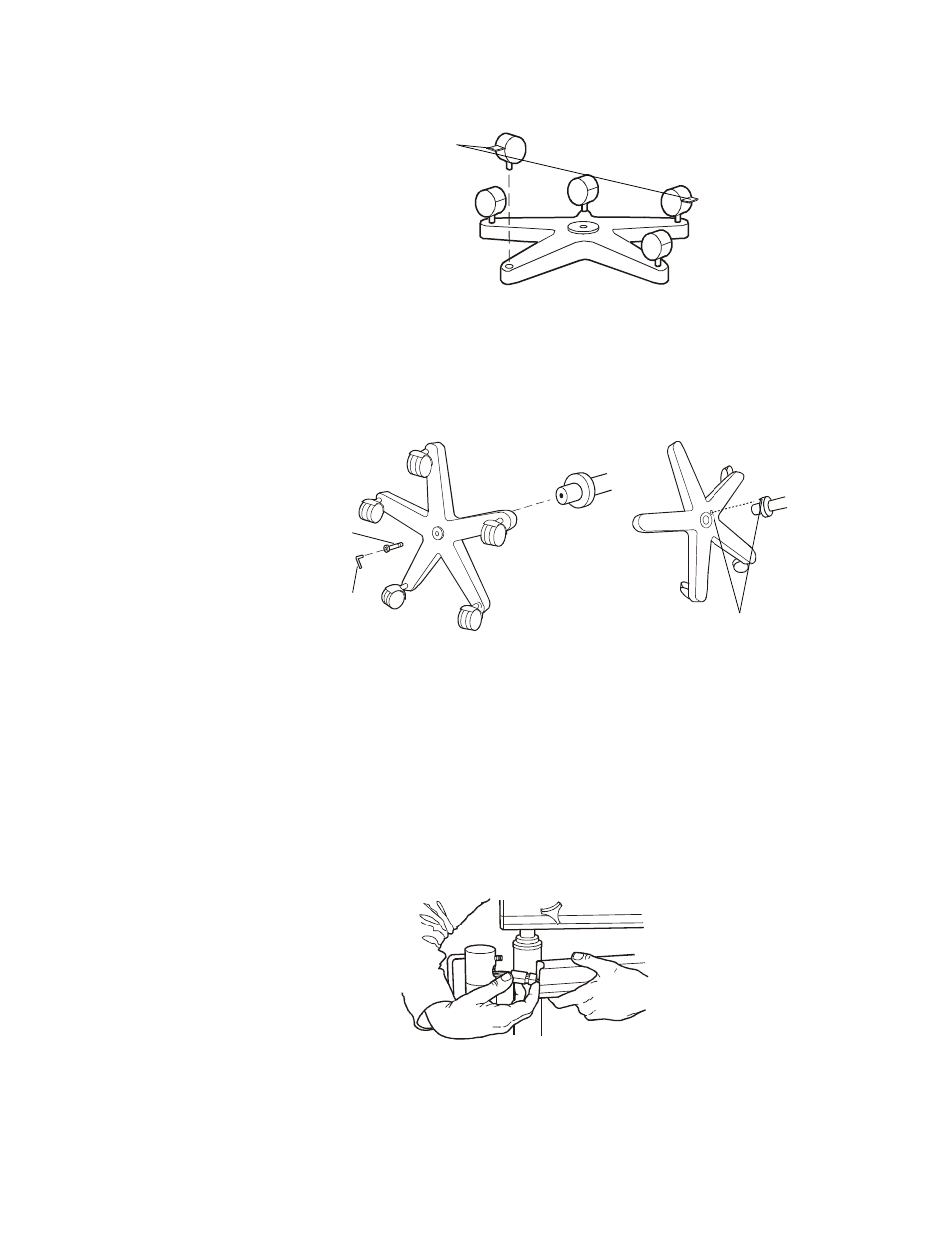

2. Place base upside down on the floor and insert casters into holes on the bottom of
the base. (Do not place two locking casters next to each other.)
3. Place the base on the floor with casters down. Lock the two locking casters.
4. Place the vertical pole section of the assembly into the base, aligning the pin on the
flange with the pin hole in the base.
5. Locate the packaged bolt.
6. Place the bolt through the bottom of the pole. (The assembly may need to be tilted.)
7. Tighten securely with the enclosed Allen wrench.
8. Remove the bolt from the arm of the colposcope assembly and insert it through the
hole near the top of the pole.
9. Position the pole and the arm of the remaining colposcope assembly in close
proximity.
10. Connect the two wire harnesses via their connectors. (This may require assistance
for proper assembly.)
.
11. Bring the colposcope swing arm assembly to the pole while at the same time pushing
the electrical connectors into the colposcope arm.
Locking caster
Hex Bolt
Allen Wrench
Align pin with hole
