Directions for Use Components 11
Monitor
WARNING If peripheral devices (example: monitor, video printer, VCR ,other) do
not comply with IEC 60601-1-1, they must be kept out of the patient area (6 feet
minimum from patient).
WARNING All signal input and output (I/O) connectors are intended for
connection to only peripheral devices (example: monitor, video printer, VCR) that
are in compliance with IEC 60601-1 (General Requirements for Safety, Medical
Electrical Equipment) or other IEC standards (for example IEC 60950, Information
Technology Equipment - Safety) as appropriate to the nature of the peripheral
device. Connecting additional peripherals to the Video Colposcope may increase
the risk associated with chassis or patient leakage currents. To maintain operator
and patient safety, the User should consider the system leakage current
requirements of IEC 60601-1-1 (Medical Electrical Equipment, Safety
Requirements for Medical Electrical Systems). The user should measure leakage
currents accordingly to confirm that no electric shock hazard exists. An isolation
transformer that is in compliance with IEC 60601-1 used to power the additional
peripherals may be used to control the system leakage current to comply with the
requirements of IEC 60601-1-1.

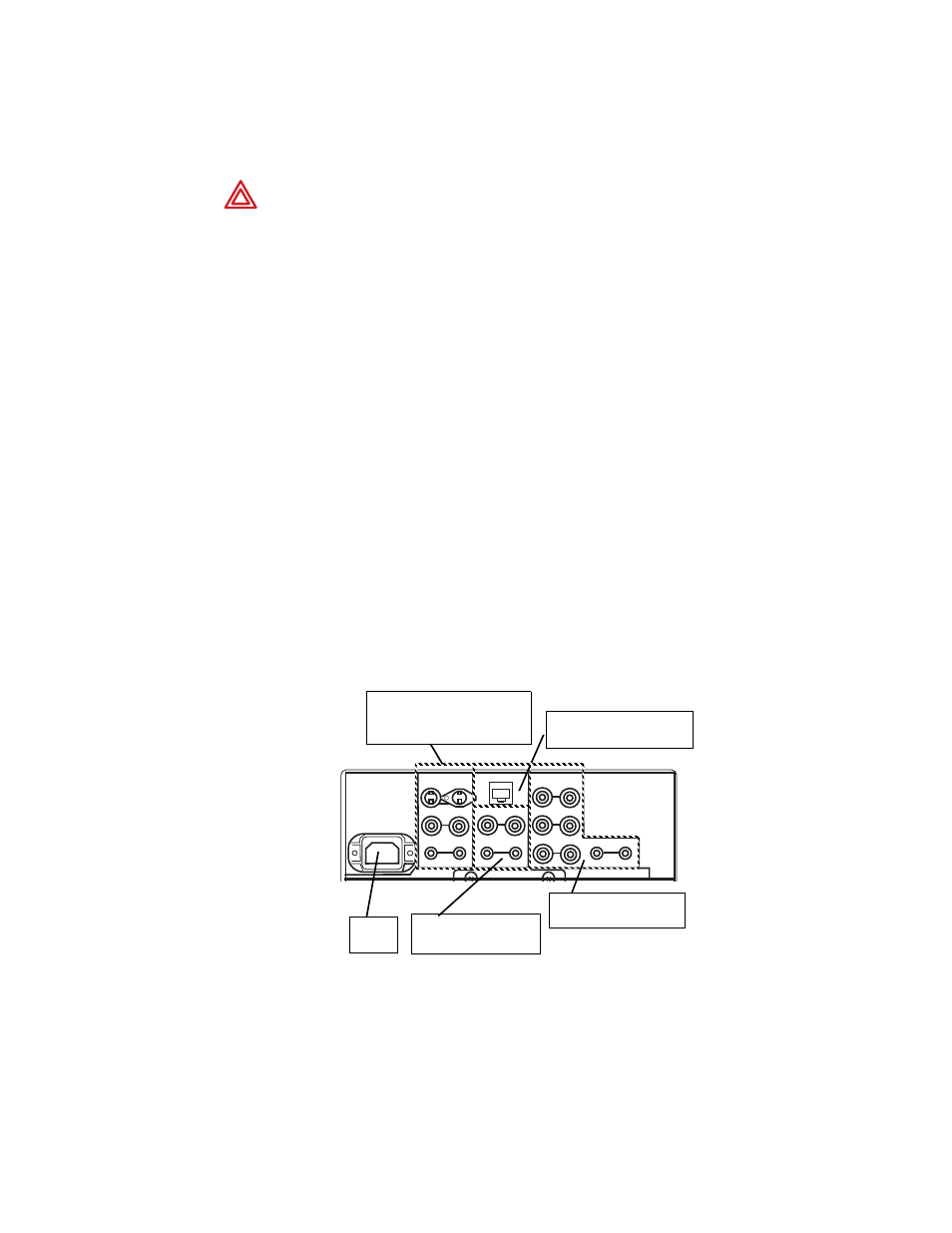

Note Image is for reference only. Actual monitor may vary. Monitor shown is SONY
LMD-1410.
Use the video monitor provided by Welch Allyn or any video monitor that meets
the specifications listed on page 30.
For detailed instructions, please refer to the provided manufacturer’s operation
manual.
LINE A PARALLEL REMOTE RGB/COMPONENT
LINE B
~AC IN
IN
IN
IN
IN
IN
IN IN IN IN
OUT
OUT
OUT
OUT
OUT
OUT OUT OUT OUT
VIDEO
S-VIDEO G/Y
B/Pb
R/Pr
VIDEO
AUDIO AUDIO AUDIO
AC IN
socket
LINE A [S-Video composite
(BNC), (4 pin mini-DIN), Audio
(RCA pin)]
LINE B [composite
(BNC), Audio (RCA pin)]
PARALLEL REMOTE
(modular connector)
RGB/COMPONENT (BNC),
Aduio (RCA pin)
