Directions for Use Components 9

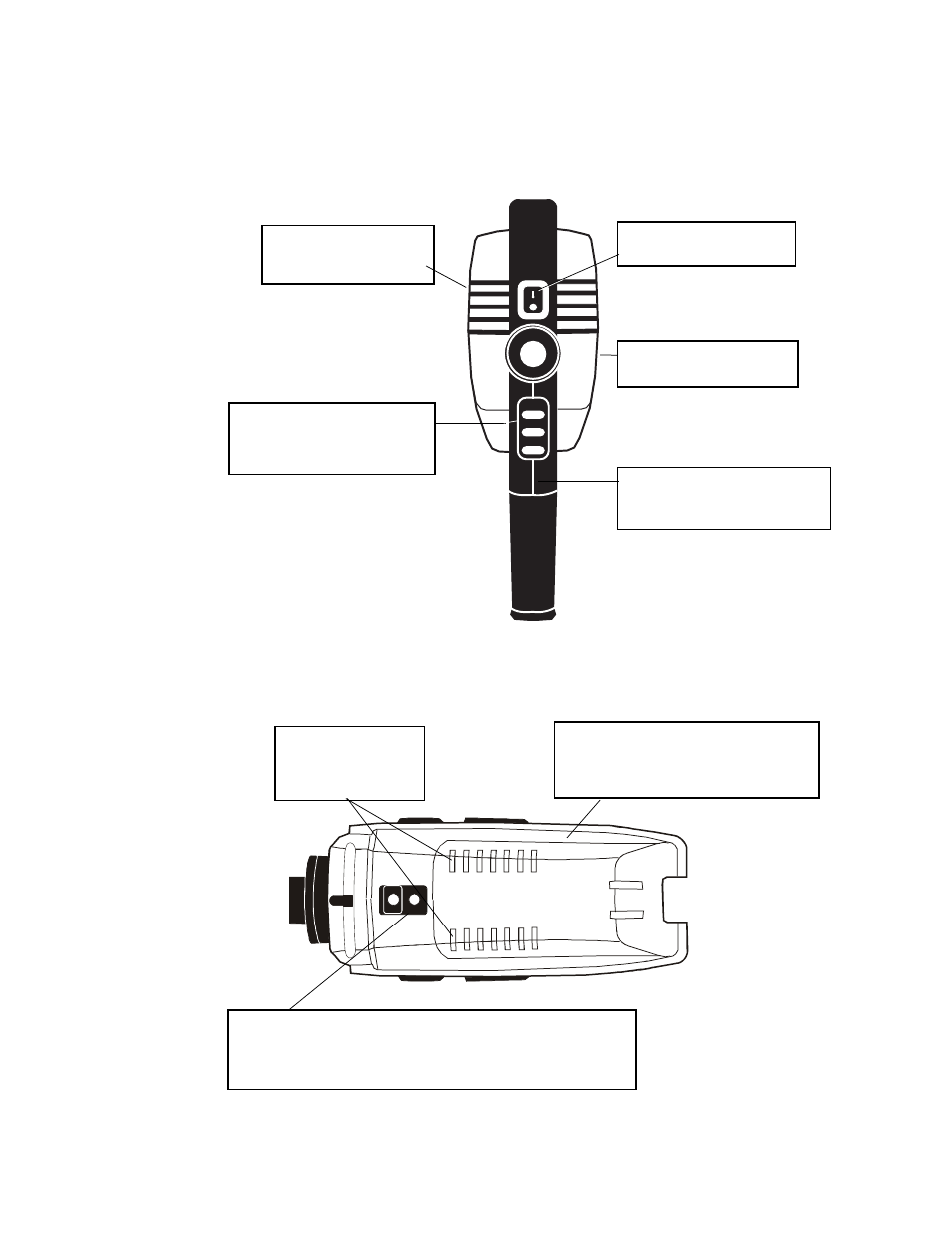

Back View
Bottom View
F
C
V
Attachment knob. Fastens
handle to Video Colposcope.
Video Colposcope handle. For
positioning the colposcope in the proper
up/down, left/right position.
Remote video function buttons.
Allows use of remote printing and
saving functions with appropriate
accessory device.
Ventilation slots. Allow air to
enter and leave unit, cooling
internal components. Power switch. Power control
for the Video Colposcope.
Lamp access door. Removes for lamp
replacement. (Note: If door is not properly closed,
interlock power switches will not activate and the
lamp will not start.)
Mounting piece. Allows the Video Colposcope to attach to the stand. On the
swing arm model, the mounting piece is located at the top of the colposcope.
On the vertical stand model, the mounting piece is located at the bottom of the
colposcope.
Ventilation slots. Allow
air to enter and leave unit,
cooling internal
components.
