8 Components Welch Allyn Video Colposcope

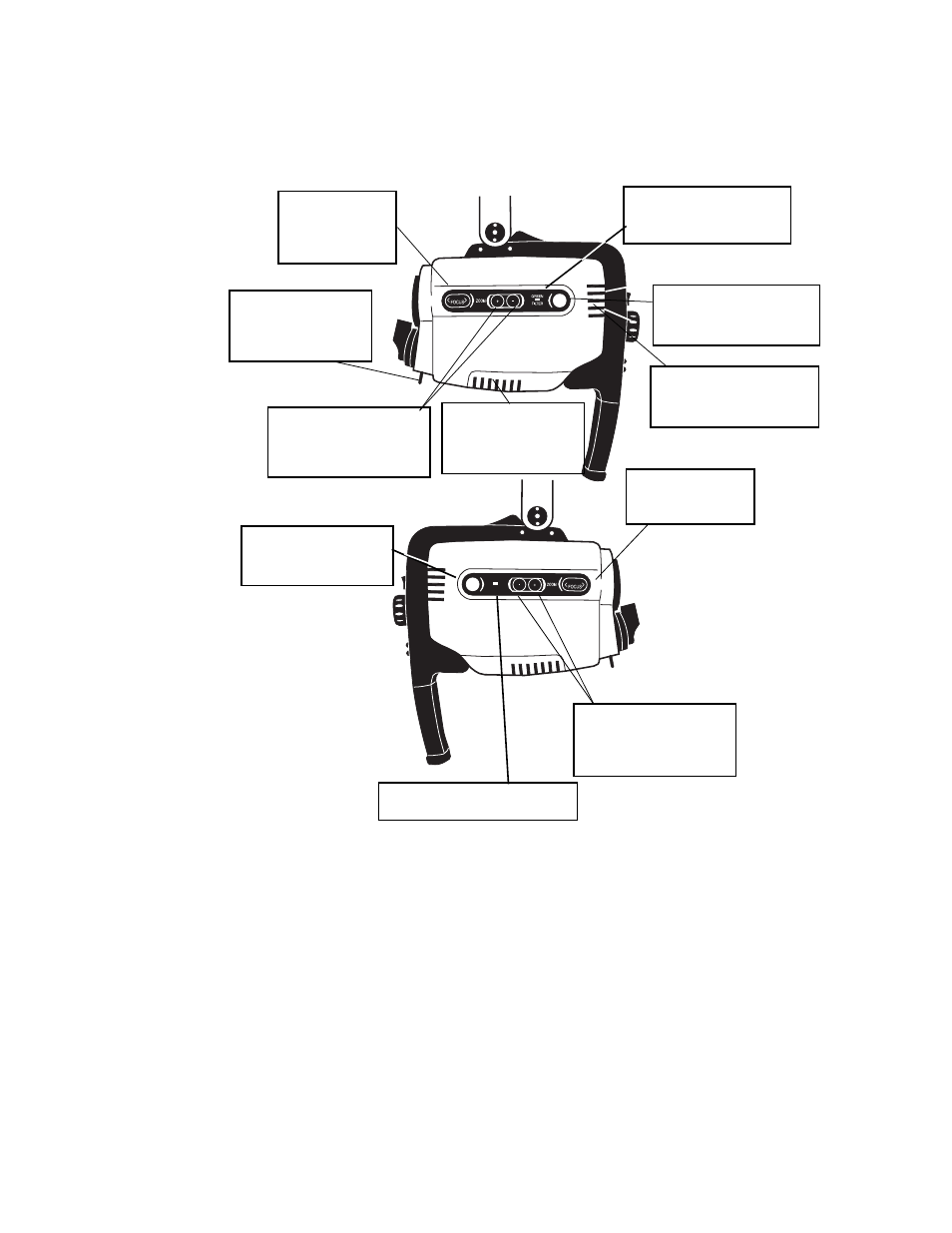

Side Views
FINE
FINE MAG
INDEX
Zoom control button.
Pressing + or - increases or
decreases magnification
accordingly.
Ventilation slots. Allow
air to enter and leave unit,
cooling internal
components.
Green filter LED indicator.
Illuminates if the electronic
green filter is on.
Ventilation slots. Allow air to
enter and leave unit, cooling
internal components.
Green filter button. Pressing
turns the electronic green filter
on or off.
Fine Focus control
button. Pressing < or
> adjusts the focus.
Zoom control button.
Pressing + or - increases or
decreases magnification
accordingly.
Fine Focus control
button. Pressing < or >
adjusts the focus.
Polarization filter
control. Adjusts the
proportion of glare
removed from the image.
Mag button. Displays
magnification index on
screen.
Mag LED indicator. Illuminates if
Mag Index is on.
