Vintage Cellars Wine Guardian Ducted System Manual User Manual
Page 34

34

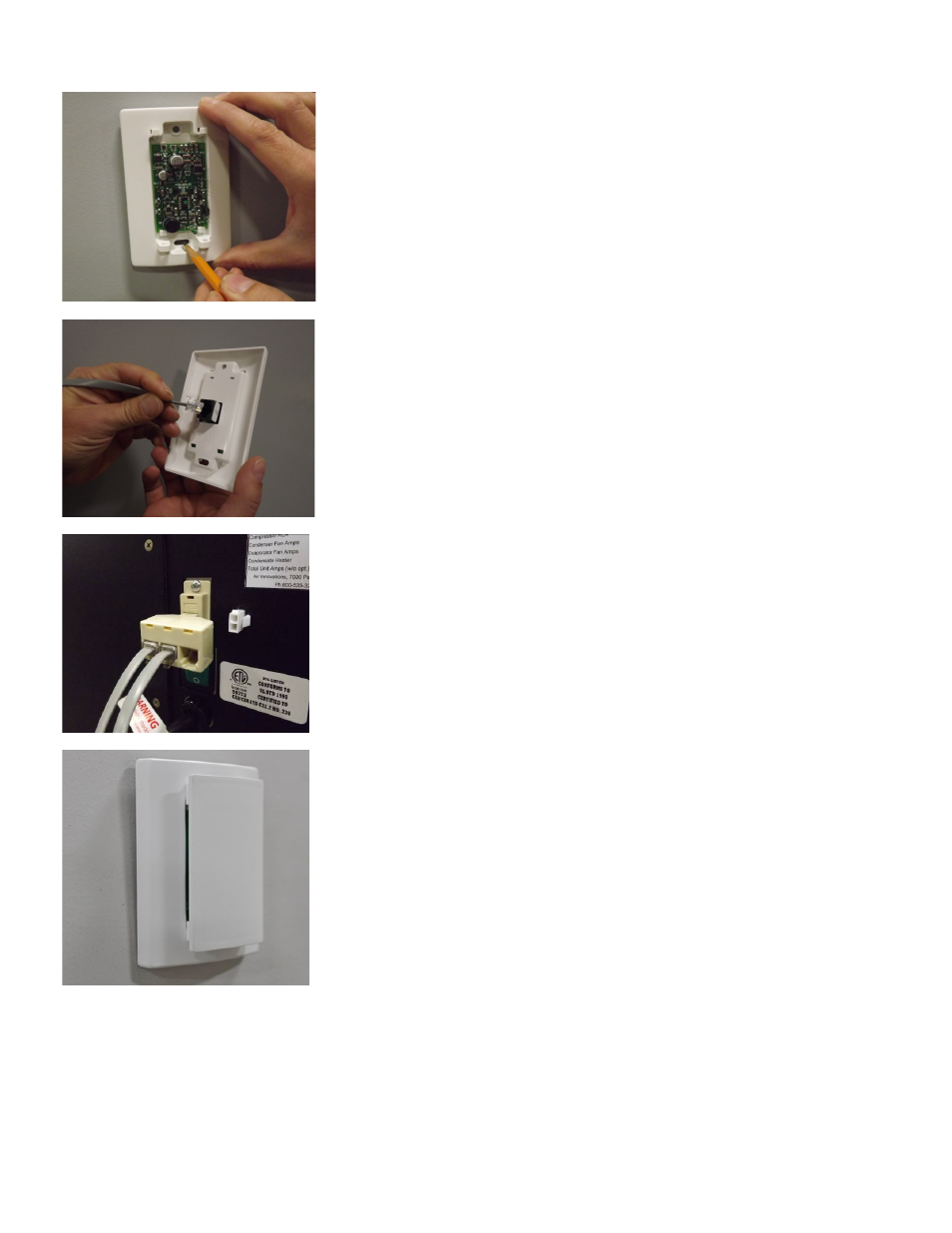

4. Drill two one-eighth inch holes and insert anchors
(provided) within the mounting surface. Anchors
may not be required if securing to a wall stud or
racking system. (Fig.3)
5. Plug in the communication cable to the back of
the remote sensor and attach to the wall using
the two screws provided in the kit. (Fig.4)
6. Plug the remote sensor cables into the splitter
device at the Wine Guardian unit along with the
communication cable for the remote interface
controller. (Fig.5)
NOTE: If using multiple remote sensors in one
wine room continue to mount the remaining
sensors before installation of the sensor cover
plates. When multiple sensors are used the sensor
jumper position must be adjusted in order for
proper averaging of temperature and humidity
readings. See page 35 for jumper set up.
Fig. 3
Fig. 4
Fig. 5
Fig. 6
