3. Operation of Pipe and Test Sealing Bags
This chapter informs you about which compressed air sources you
can use with the Vetter pipe and test sealing bags.
Observe the corresponding pressure level with
operation of pipe and test sealing bags

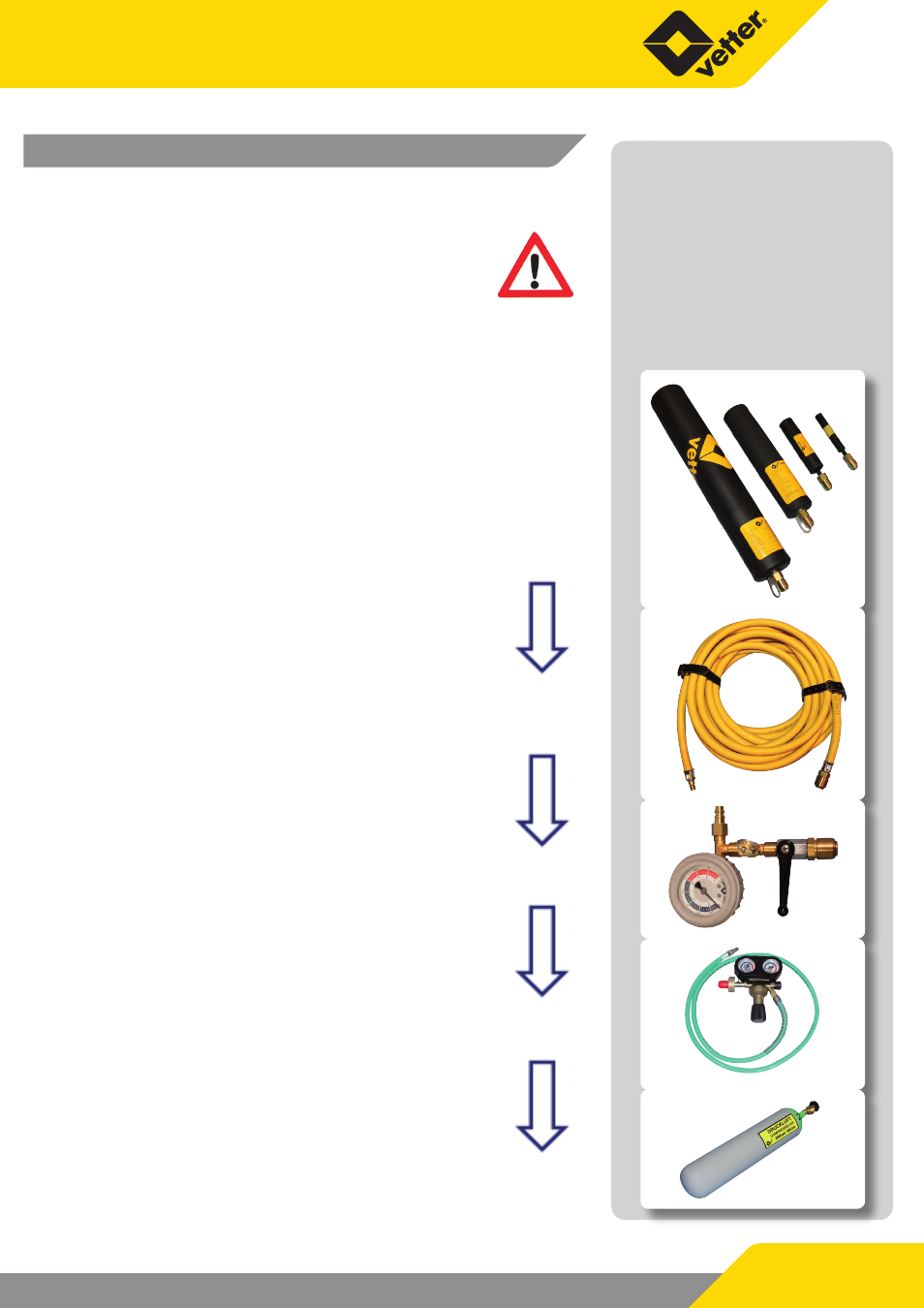

3.1 Operation with controller, inflation hose
and compressed air bottle
Note! In the following presented figures the sequence of
events uses the pressure level of 2.5 bar as an example.
The corresponding bags and accessories must be used
for other pressure levels and other sources of air.
Pipe and test sealing bags
9 Step 1
Connect pipe and test sealing bags 2.5 bar to the
inflation hose.
Inflation hose
9 Step 2
Connect the inflation hose to the controller.
The inflation hose, the sealing bag and the controller
must have the same pressure level.
Controller
9 Step 3
Connect the connection hose of the pressure
regulator to the inlet coupling of the controller.
In doing this it is imperative that the permitted inlet
pressure of the controller is observed
Pressure regulator
9 Step 4
Screw-in the connection thread of the pressure
regulator into the inside thread of the valve on the
compressed air bottle.
Compressed air bottle
