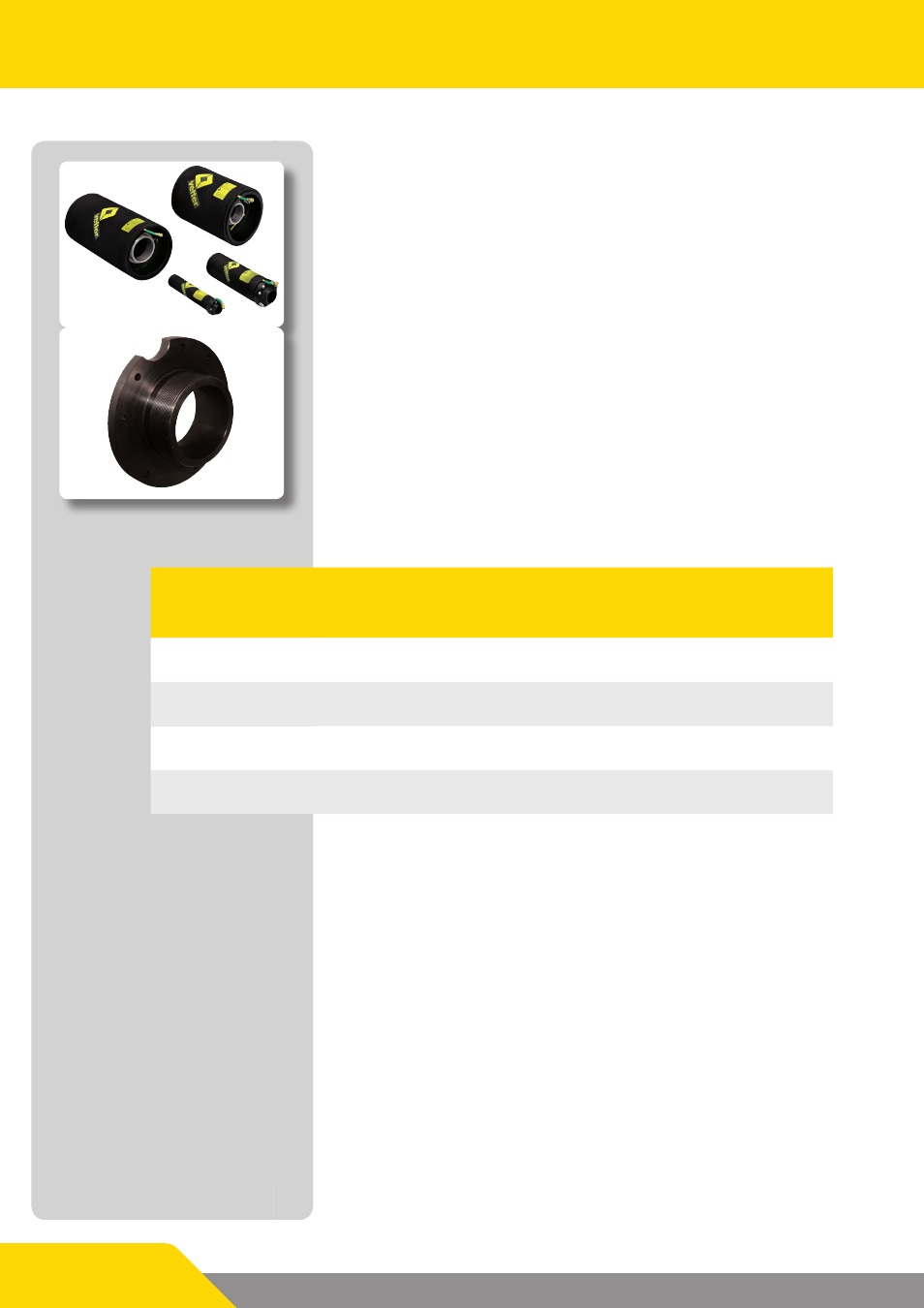

6.5 Vetter Bypass Bags 1.5 bar
Description
Vetter 1.5 bar bypass bags can be used for creating a bypass with
defective channels. They can also be used for channel repairs and re-
construction as two-sided, temporary blocking with conduction and
pressure relief from the incoming pipeline to the outgoing pipeline.
9 Please observe the permitted maximum counter-pressure of 5 m
water column, resp. 0.5 bar, when using bypass bags.
9 Connect the inflation hose, 1.5 bar, to the bypass bag and the
single controller, 1.5 bar fitting.
9 Insert the bypass bag along its full length into the pipeline and
secure it against catapulting out using suitable devices, e.g. a
structure support.
9 Inflation of the bypass bag can then be made as described in
chapter 4.
Technical Data
Bypass Bags
1.5 bar / 21.75 psi
Pipe
diameter
mm / inch
Diameter
mm / inch
Cylinder
length
mm / inch
Total length
mm / inch
Air
requirement
litres / cu. ft.
Weight,
approx.
kg / lbs
PDK 10/20 PE core
1481004400 1 x 2 1/2“ AG
100 - 200
3.9 - 7.8
97
3.9
485
19.1
545
21.7
27
0.95
2.2
4.9
PDK 20/50 PE core
1481005000 1 x 4“ AG
200 - 500
7.8 - 20
195
7.7
550
21.7
610
24
143
5
7
15.4
PDK 50/80 PE core*
1481006900 1 x 4“ AG
500 - 800
20 - 31.5
450
17.7
565
22.2
580
22.8
310
10.9
32
70.6
PDK 50/120 PE core*
1481008000 1 x 4“ AG
500 - 1.200
20 - 47.2
450
17.7
920
36.2
935
36.8
1,420
50.1
42.5
93.7
* A 6“ or 8“ duct can be supplied when required.
Standard test counterpressure of 5 m WC / 7.25 psi.
All rights reserved for technical changes within the scope of product improvement.
