Vetter Pipe and Test Sealing Bags - Manual (Page 25)

Page 25/33

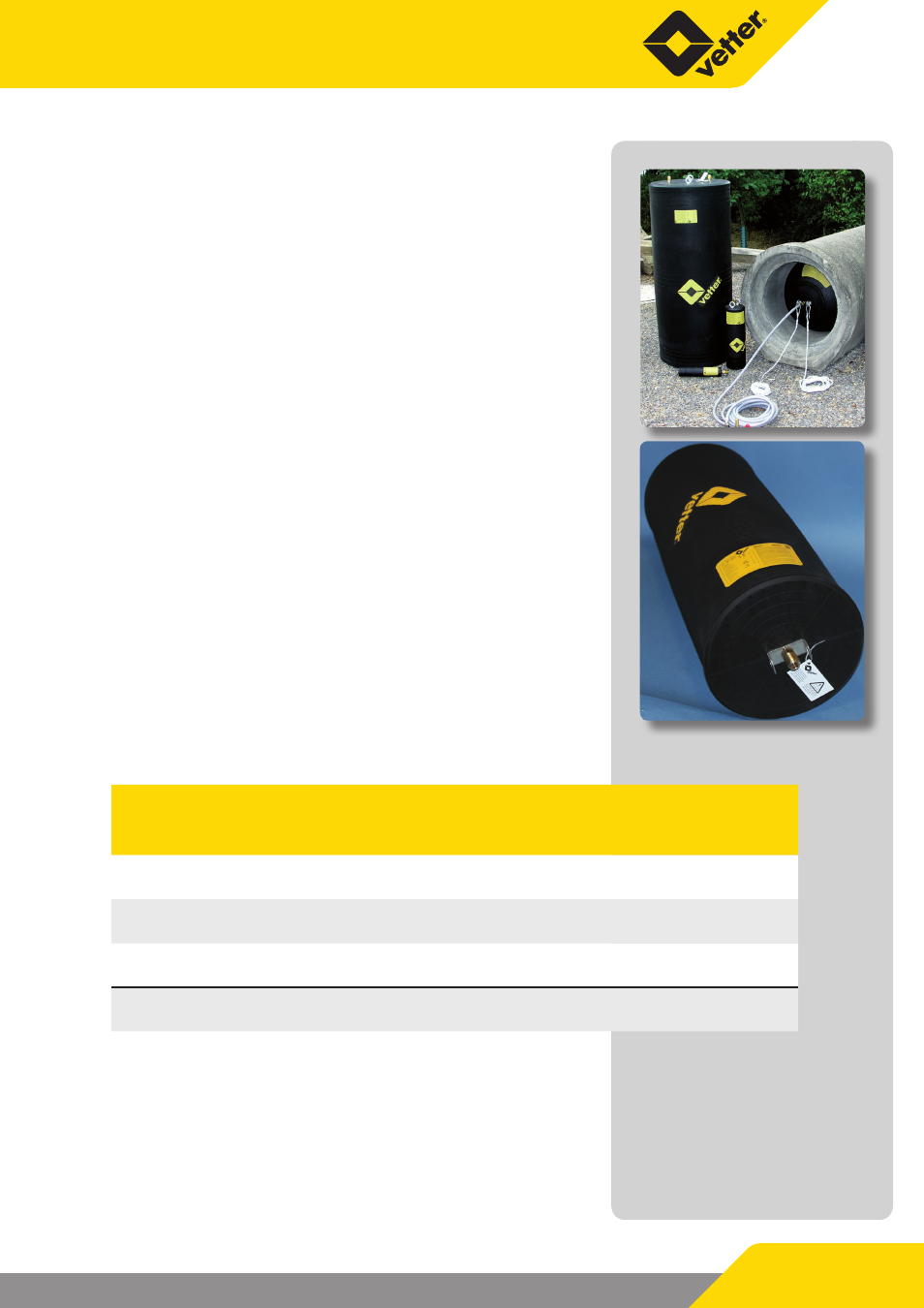

6.8 Vetter Pipe Sealing Bags CR
Description
Vetter pipe sealing bags CR can be floated into the pipeline with the
liquid flow. The material ensures good resistance against chemicals.
9 Connect the inflation hose(s) to the pipe sealing bag CR and the
single or double controller of the selected pressure level.
9 Attach the spring hooks of the securing lines to the securing lugs.
9 Position the pipe sealing bag CR in the direction of flow into a
shaft and let it float with the liquid flow into the pipe.
9 In doing this, observe the selected diameter and the buoyancy of
the sealing bag.
9 When the sealing bag has been floated in to its full length then
inflation can begin as described in chapter 4.
9 The pipe sealing bag CR is to be fastened during the float-in pro-
cedure and the inflation sequence.
9 Final securing of the bag is only made when the permitted maxi-
mum operating pressure is reached.
Technical Data
Pipe Sealing Bag CR
Pipe
diameter
mm / inch
Diameter
mm / inch
Cylinder
length
mm / inch
Total length
mm / inch
Air
requirement
litres / cu. ft.
Weight,
approx.
kg / lbs
RDK 7/15
1440008100
2.5 bar
(36.25 psi)
70 - 150
2.8 - 5.9
68
2.7
300
11.8
345
13.4
14
0.5
0.6
1.3
RDK 15/30
1440008000
2.5 bar
(36.25 psi)
150 - 300
5.9 - 11.8
145
5.7
465
18.1
510
20
80
2.8
2.5
5.5
RDK 30/60
1440007900
2.5 bar
(36.25 psi)
300 - 600
11.8 - 23.4
295
11.6
735
28.9
780
30.4
508
18
7.3
16.1
RDK 60/120
1480004800
1.5 bar
(21.75 psi)
600 - 1,200
23.4 - 47.2
580
22.8
1,320
52
1,365
53.7
2,475
87.4
27
59.5
RDK 2,5 bar / 36.25 psi - Test counter pressure 10 m WC / 14.50 psi
RDK 1,5 bar / 21.75 psi - Test counter pressure 5 m WC / 7.25 psi
All rights reserved for technical changes within the scope of product improvement.
