3-6 Adit 3104 - Release 1.6
Electrical Installation & Cabling
Interface Connectors
RS-232 Craft Port (Female DB-9)
The RS-232 craft port connector (female) is for connection to an external PC or Hayes-compatible
modem for local or remote configuration, management, and performance monitoring using the Adit
3000 Command Line Interface (CLI).

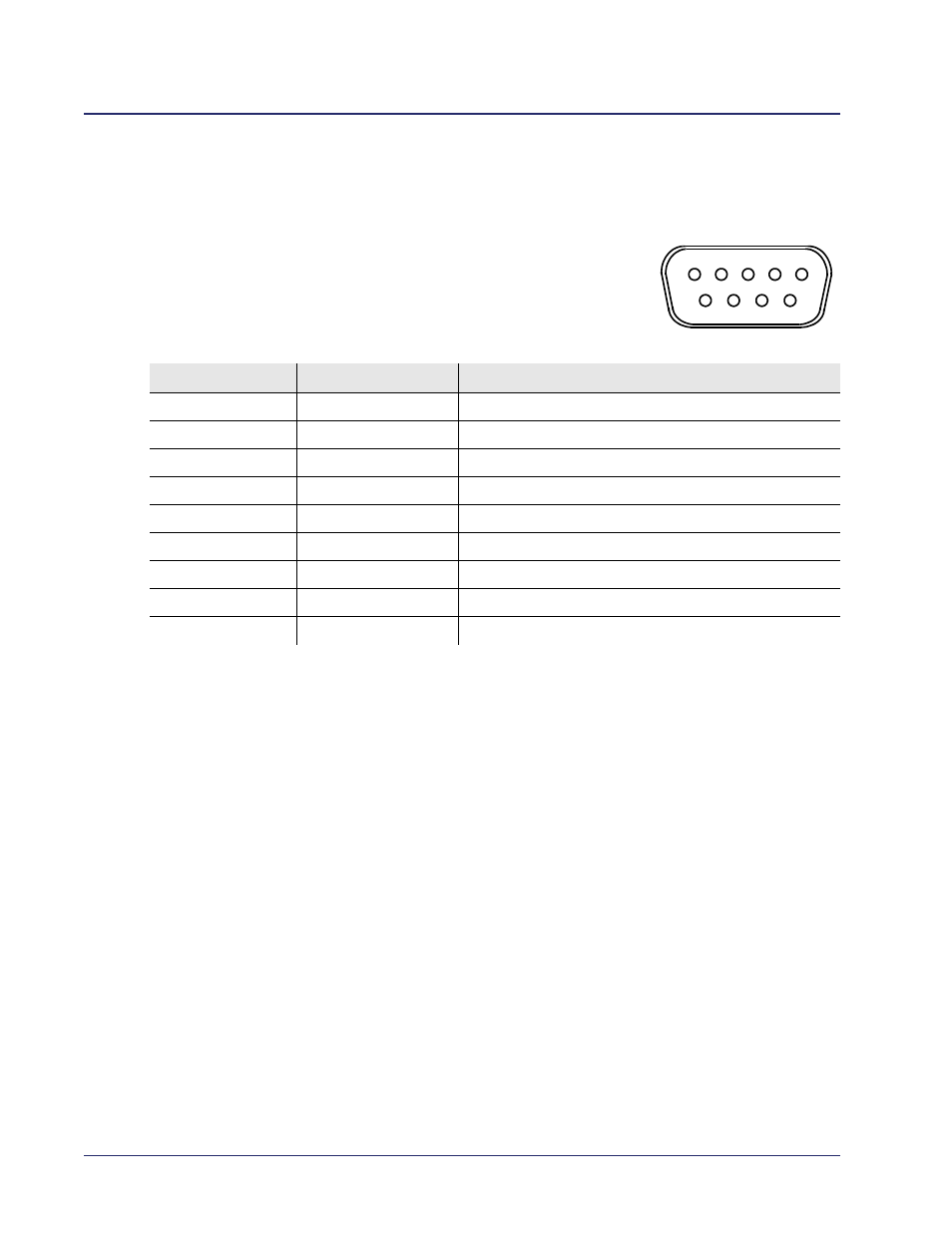

The RS-232 craft port connects via a female DB-9 connector on the Adit
3000.
The pinouts are as follows:
Pin Number Direction Description
1 Outbound Carrier Detect
2 Outbound Receive Data
3 Inbound Transmit Data
4 Inbound Data Terminal Ready
5 N/A Signal Ground
6 Outbound Data Set Ready
7 Inbound Request to Send
8 Outbound Clear to Send
9 N/C Not connected
1 5
6 9
