Physical Installation
Rack Mounting

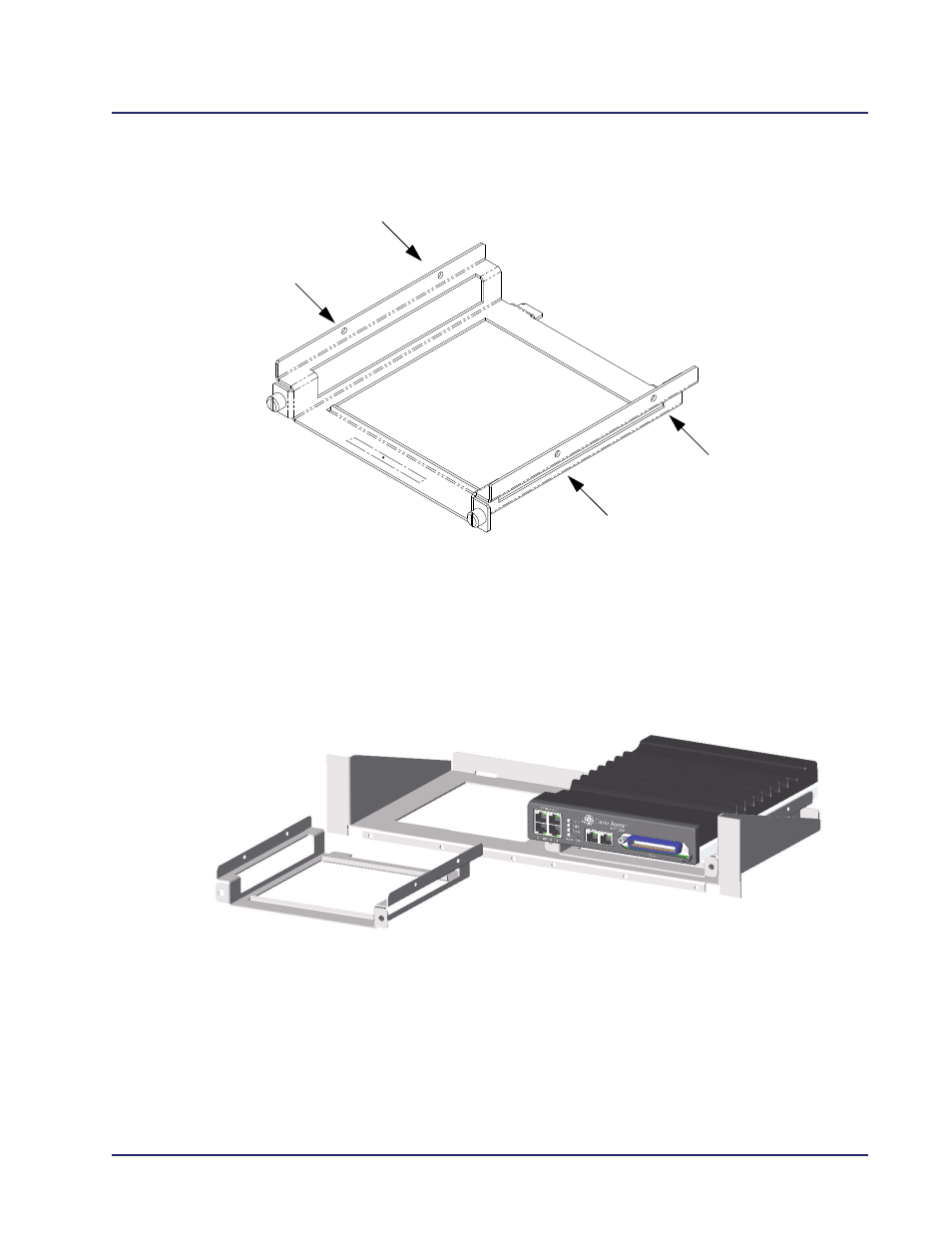

4. Place the Adit on the Tray Slide and attach with 4 screws removed in step 2.
5. Slide the assembled piece (Adit 3000 and Tray Slide) onto the installed Rack Mounting Tray.
6. Secure the Tray Slide to the Rack Mounting Tray with the attached screws on the Tray Slide.
Tray Slide
screws
screws
