Adit 3104 - Release 1.6 3-3
Electrical Installation & Cabling
Interface Connectors
Interface Connectors
The following are the Adit 3104 interface connectors:
Front of Adit
(1) DS1 WAN port (RJ-48C). Note: E1 will be in a future release.
(1) 10/100Base-T WAN port (RJ-45)
(4) 10/100Base-T switched LAN ports (RJ-45)
Tip and Ring Analog Interface equipped with standard 25-pair Telco Connector
Back of Adit
RS-232 craft port connector for local management
Power input connector
Ground connector
Grounding the Unit
WARNING! T HE A DIT 3104 ARE REQUIRED TO BE PERMANENTLY GROUNDED FOR THE
PROTECTION OF USERS AND SERVICE PERSONNEL .
Chassis ground is located on the back of the unit.
To ground the unit:
1. Connect a minimum 14 AWG ground
wire with a #8 ring tongue terminal (not
included) to the chassis ground on the
back of the unit. Secure with the 8-32
screw and lock washer provided.
2. Connect the opposite end of the ground
wire to a suitable earth grounding point
such as a building grounding electrode,
metal water pipe, or metal building
structure that is in compliance with article 250 of NEC.

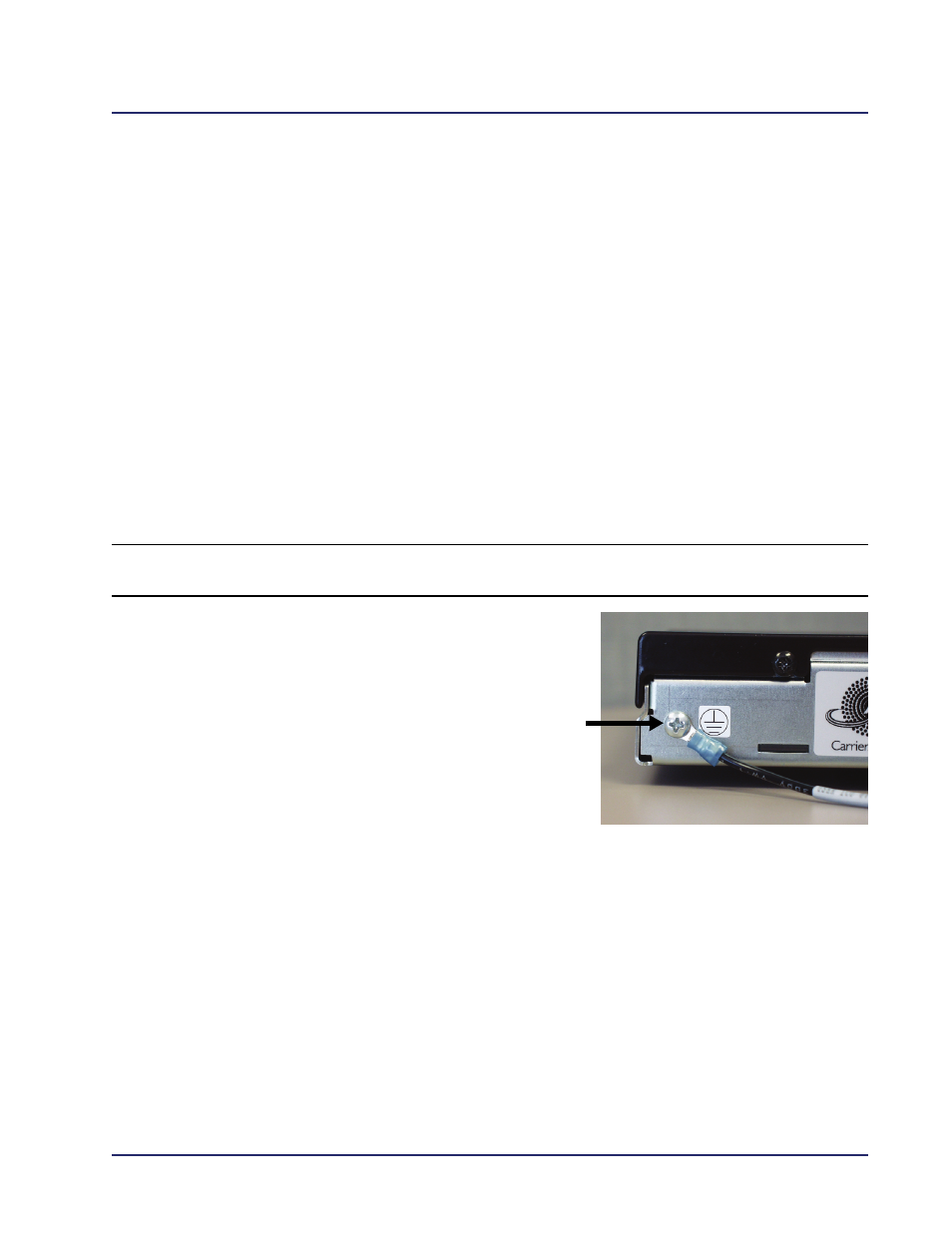

Chassis
Ground
