14
slots in Mechanism Plate.
8. Unhook right-side Cable from Water Valve Actuator. Discard
Cable.
9. Insert new Cable end in Water Valve Actuator. Snap Cable
Sheath fitting firmly into right-side slot in Mechanism Plate
(Fig. D).
10. Remove left-side Cable. Unhook from Blade actuator and
discard. Replace with new Cable in same position as before.
Snap Cable firmly into left-side slot in Mechanism Plate (Fig.
D).
11. Replace standoff screw (Fig. D).
12. Replace 3 other screws (Fig. C) to resecure Mechanism to
Mechanism Plate.
11. Snap Cable Sheath Fittings into slots on Pedal Bracket (Fig.
B). Secure by tapping into place with screwdriver.
12. Rotate Blade Actuator (Fig. D) to open valve and give slack
on Cable. Engage Cable end to left Pedal Arm and release
Blade Actuator.
13. Rotate Water Valve Actuator(Fig. D) to open Valve and give
slack on Cable. Engage Cable end to Pedal Arm and release
Water Valve Actuator.
To Reinstall Toilet To Floor
1. Install new Closet Flange Seal to Toilet Mounting Flange,
lip side outward. Friction holds it in place.
2. Keeping Mechanism Blade open to assure holes line up,
position Toilet over Closet Flange.
3. Reconnect Water Supply Line.
4. Bolt Toilet to floor with Lag Screws. Tighten.
5. Turn on RV’s water supply. Flush test. Fill bowl and make
sure it holds water.
6. Install Bolt Caps.
1. Remove Cables from Cam Arms.
2. Facing front of toilet, use screwdriver to pry out left side of
Pedal Arm at pivot point in Pedal Bracket.
3. Remove Pedal. Discard.
2. Position Toilet over Flange.
3. Reconnect Water Supply Line.
4. Secure to floor with Lag Screws. Tighten.
5. Turn on RV’s water supply. Flush test.
6. Resecure Bolt Caps.

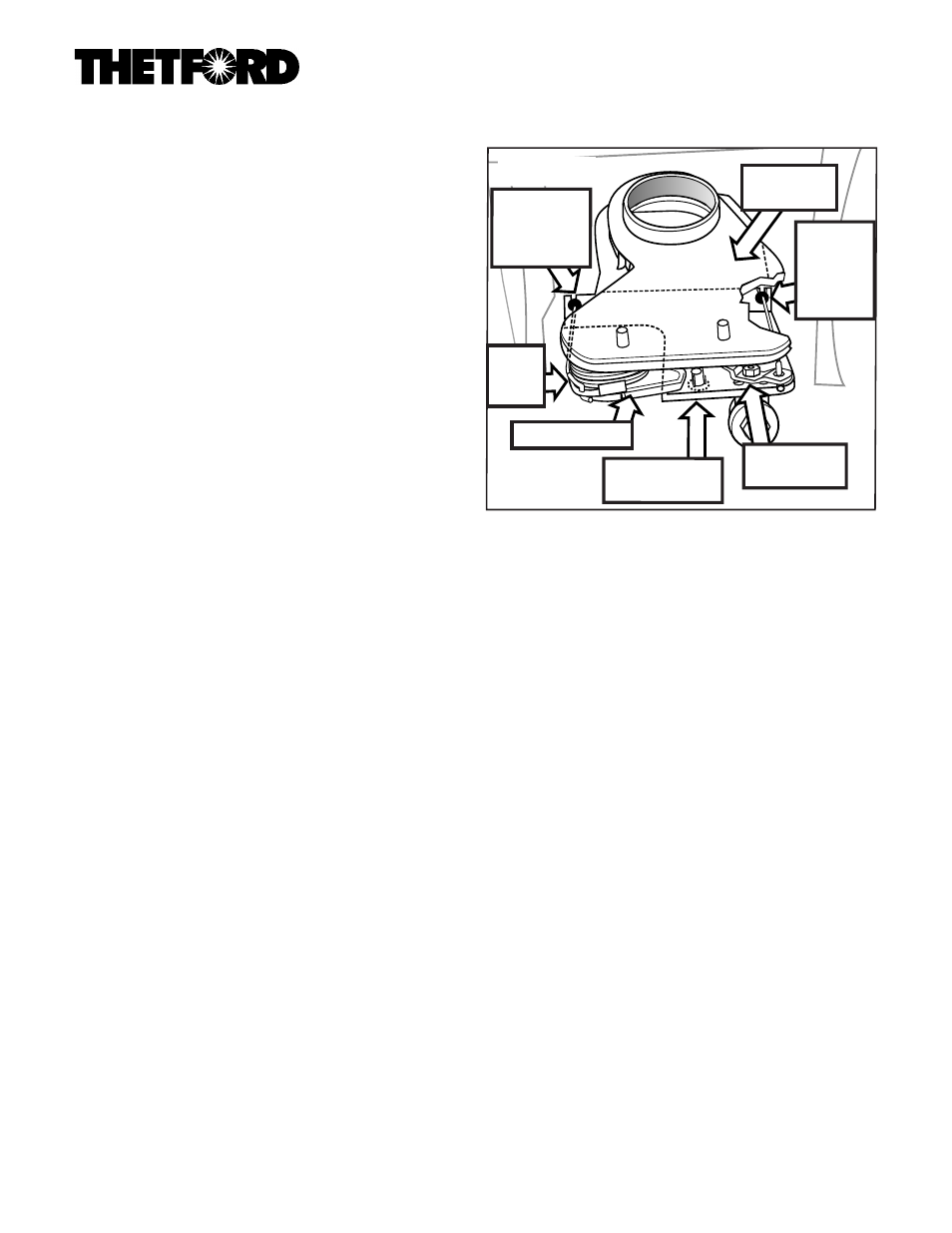

Fig. D
Mechanism
(cutaway)
Cable Sheath
in left-hand
Mechanism
Plate Slot
Cable
End
Elbow
Blade Actuator
Standoff Screw
(dotted oval)
Water Valve
Actuator
Cable
Sheath in
right-hand
Mechanism
Plate Slot
Part No. 19835/6 Cable Package, continued
