Thetford 19289 - RV Water Saver User Manual

Aurora, Aqua-magic, Style

background image

Made in U.S.A./Fabriqué aux É.-U./Hecho en EE.UU.

Parts/Pièces/Particulos

Thetford Corporation

Ann Arbor, MI 48106 •

1-800-521-3032

• www.thetford.com

Part No.

No de pièce

particulo No.

RV Toilets/cabinets permanents/inodoros

19289

Water Saver

Trousse pour économiseur d’eau

Juego del economizador de agua

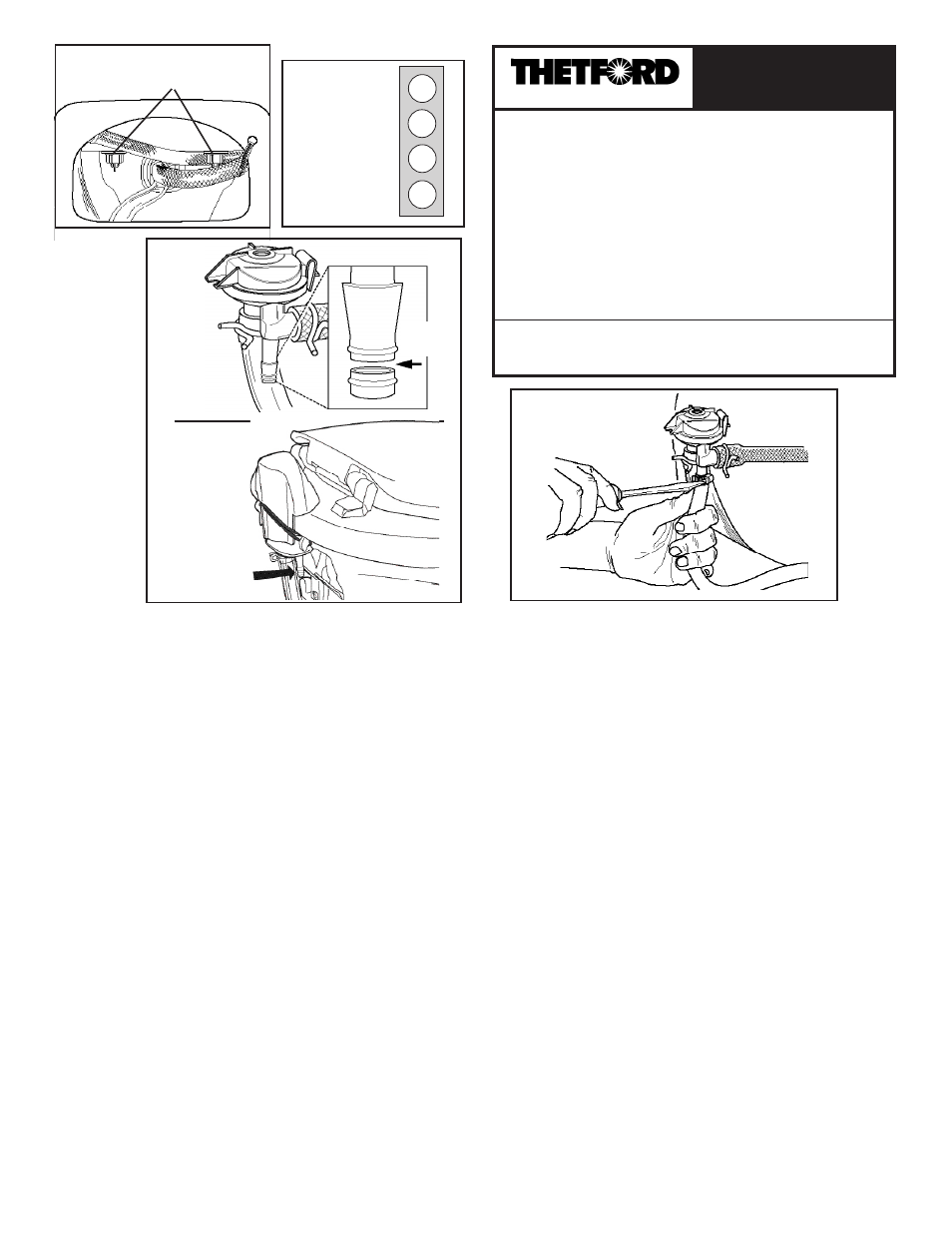

Fig. 1 (Aurora only)

Fig. 2

(Aurora only)

Hinge Posts/Nuts

Tie-

Down

Strap

Fig. 3

Fig. 4

Installation Instructions

Tools Needed

• 1/2" Wrench • Channel Locks
• Flat-Head Screwdriver
• Knife, wire cutters or squeeze-type tubing cutters
• 13/16-inch, 12-pt. Socket

NOTE: Not all parts in package may be needed.

Toilet Removal (if necessary)

1. Turn off water supply to toilet (see vehicle Owner’s Manual).
2. At back of toilet, remove water line from Water Valve.
3. (Aurora) Remove Side Access Covers. (Style Plus) Remove

plastic shroud from around base.

4. Remove nuts holding toilet to floor.
5. Lift toilet from floor.
6. Remove old Closet Flange Seal.

Removing Existing Water Saver

1. (Aurora) Remove left side Hinge Post Nut (as viewed from back,

Fig. 1) to release Tie-Down Strap (Fig. 2). (A 13/16-inch socket

may be needed.)

2. Access vacuum breaker.
3. Loosen screw on old Clamp. Pull off hose. Remove and save

clamp. Discard old Water Saver (Fig. 4).

F# 33069

8/05

Installing New Water Saver

1. Access Hose Barb (Fig. 3).
2. If not already cut, use knife or wire cutters to cut between two

ribs on sealed end.

3. (Aurora only) Place Tie-Down Strap (Fig. 2) on Hand Spray

hose.

4. Place Clamp over spray hose and push spray hose up onto Hose

Barb. Tighten Clamp (Fig. 4).

5. (Aurora only) Push Vacuum Breaker back into toilet.
6. (Aurora only) Remove left Hinge Post Nut. Attach Tie-Down

Strap. Re-tighten Hinge Post Nut with 13/16-inch socket. Do not

overtighten (12 in.-lb. max.).

7. Install wall bracket in desired location (close to toilet).

Toilet Installation

1. Install new Closet Flange Seal in bottom of toilet with lip

oriented down. NOTE: use thicker lip seal for Aurora. For all oth-

ers, use seal with smaller lip.

2. Reinstall toilet, reversing “Toilet Removal” steps above.
3. Flush test. Check for leaks.

Cut

Here

Aurora

®

,

Aria

®

CLASSIC

,

Aqua-Magic

®

STYLE

TM

LITE

, STYLE

TM

PLUS

Style

Lite

(Style

Plus

similar)

Cut

Here
