Tools Required

• Phillips Head Screwdriver

• Adjustable wrench – if Toilet must be removed from floor

Instructions

1. Shut off water supply to Toilet.

2. Disconnect water supply line from Toilet.

3. Remove Toilet from floor if necessary.

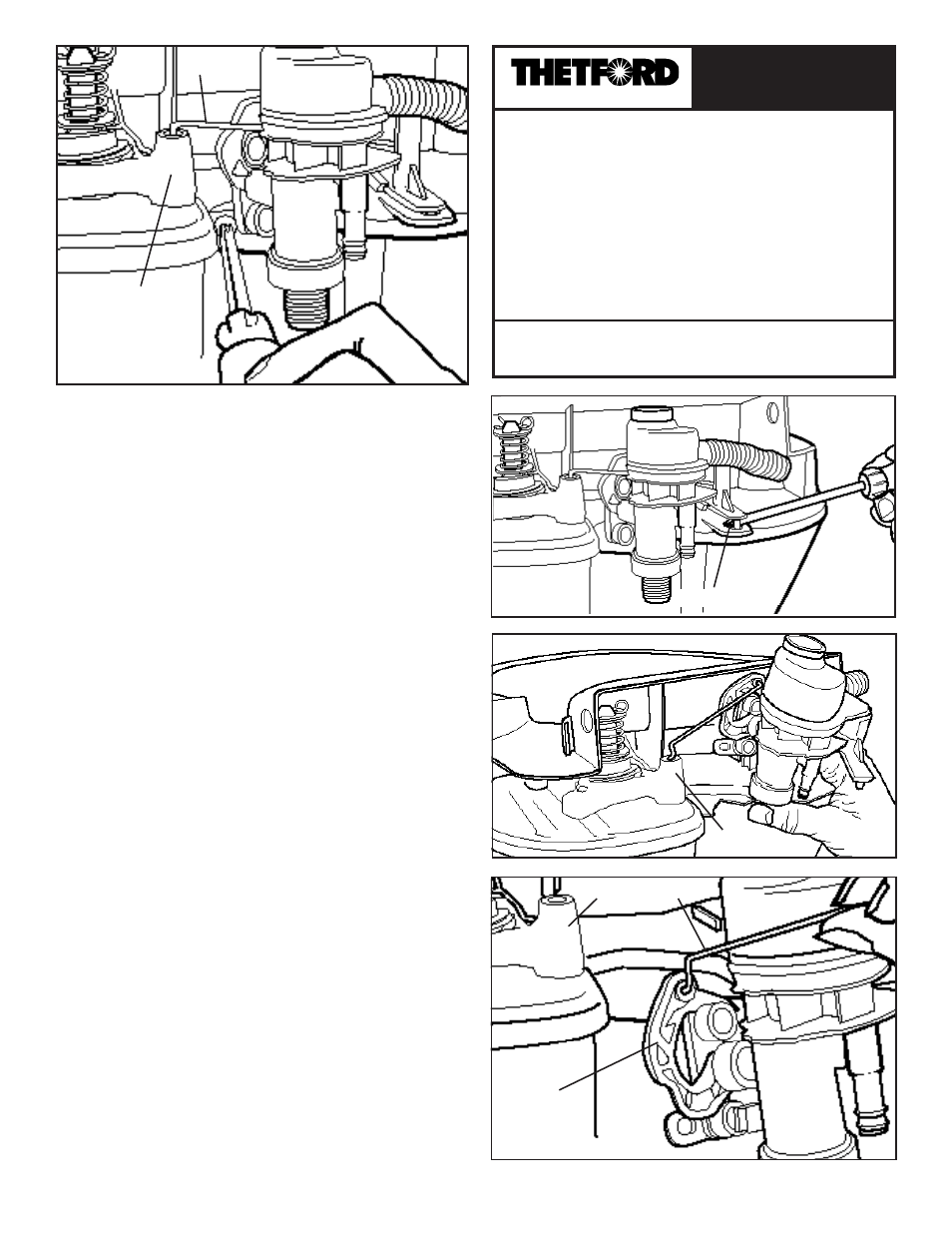

4. Remove Screw from bracket holding Water Module in place at rear of Toilet

(Fig. 1).

5. Take tension off Link by depressing Pedal on foot flush units or pull Hand

Flush Lever forward. Keep tension off for next two steps.

6. Lift Water Module Retaining Bracket Post from retaining hole (Fig. 2).

7. Slide Water Module out of track (Fig. 3).

8. Lift Water Module upward until Link is free from Flush Lever (Fig. 3).

9. Remove Link from crank arm of Water Module (Fig. 4).

10. Insert new Link into crank arm of Water Module.

11. Insert curved end of Link into Flush Lever.

12. Depress Flush Pedal or pull Flush Handle forward to relieve tension on

Link so Water Module Bracket can slide into track until the Post falls into

retaining hole (Fig. 2).

13. Release Pedal or Flush Handle and place Phillips head screw through

retaining bracket and tighten it to Toilet (Fig. 1).

14. Reinstall Toilet if it was removed.

15. Reconnect water supply line to Water Module.

Fig. 2

Fig. 3

Retaining Hole

Flush Lever

Link Kit

Raccord de liaison

Juego de varilla de conexión

F #36529

6/04

Aqua-Magic

®

V

Made in U.S.A./Fabriqué aux É.-U./Hecho en EE.UU.

Parts/Pièces/Piezas

Thetford Corporation

Ann Arbor, MI 48106 •

1-800-521-3032

• www.thetford.com

Part No.

Pièce no

No. de artículo:

RV Toilets/cabinets de VR/Inodoros para VR

36528

Fig. 1

Flush Lever

Link

ENGLISH

Fig. 4

Crank Arm

Flush Lever Link
