18

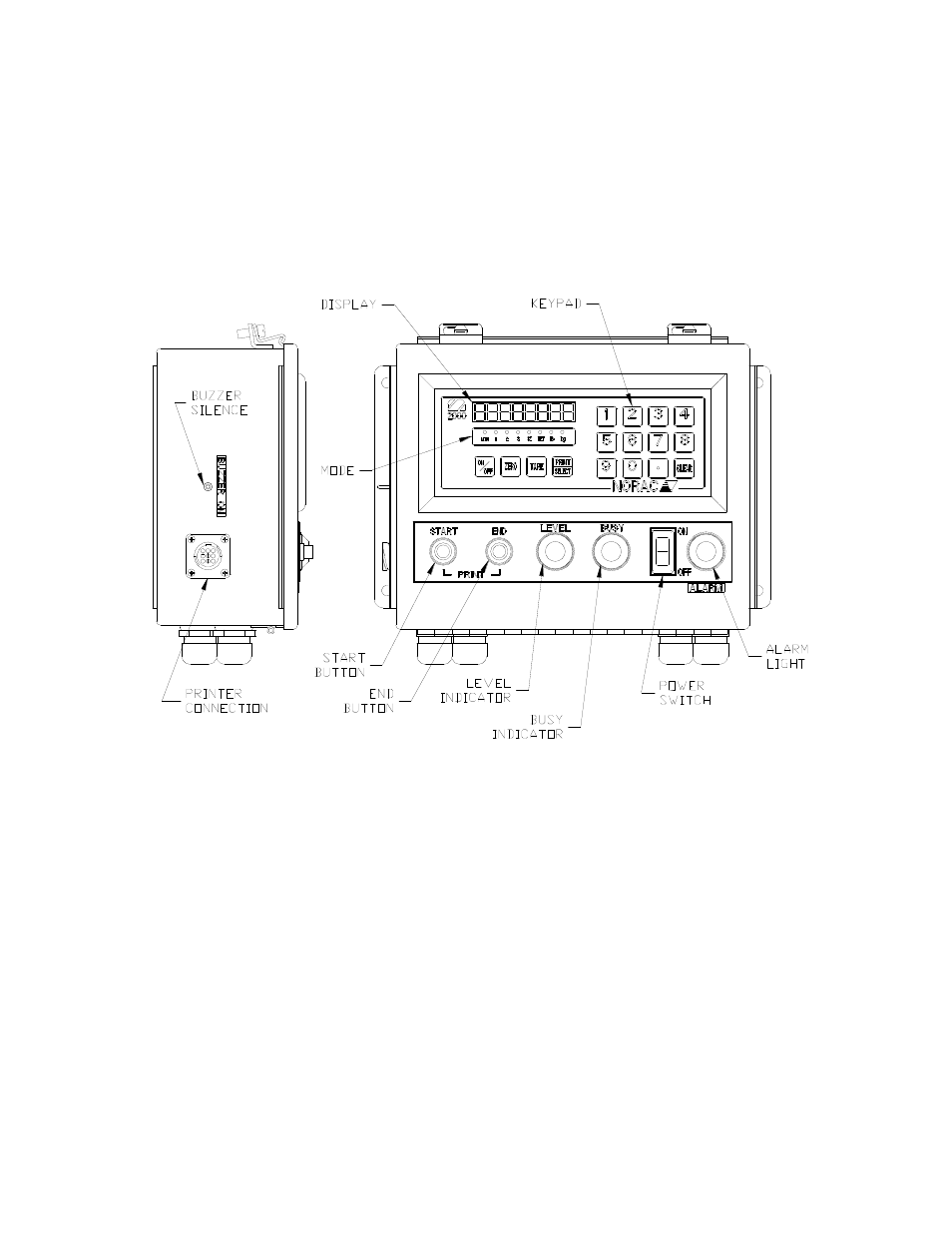

15.1.1. Compact Control Box
The Compact Control box is mounted in the cab of the truck. The control box should
be easily accessible to the operator and be visible to anyone wishing to see the display.
The installation and mounting of the Compact control box must not be adjustable or
deflect under normal use. The control box can be mounted at an angle but only in one
direction to allow the internal PCB to be adjusted level once complete.
The control box PCB must be level with the scale. The circuit board contains a
level switch that detects the degree to which the scale is off level. Therefore, the PCB
must be attached so that it is level with respect to the scale.
Once the Compact control box has been installed into the truck the internal PCB must
be leveled to ensure proper operation.
The circuit board is mounted on a tray which is located between to adjustable slides.
Loosen the 4 screws holding the tray and using a small level slide the PCB and tray up
and down until the PCB is level when the scale in a level position.
