12
12.2 Line Locks to Valve
The system must be plumbed to a hydraulic source (pump) on the truck through a valve.
Optional packages are available which include a manual spool valve, hydraulic
components, and hoses to plumb the valve to the line locks. The hoses coming from the
valve are connected to the V1 & V2 ports.
Hydraulic schematics of the On-Board systems are shown in Figure 8 and Figure 9.

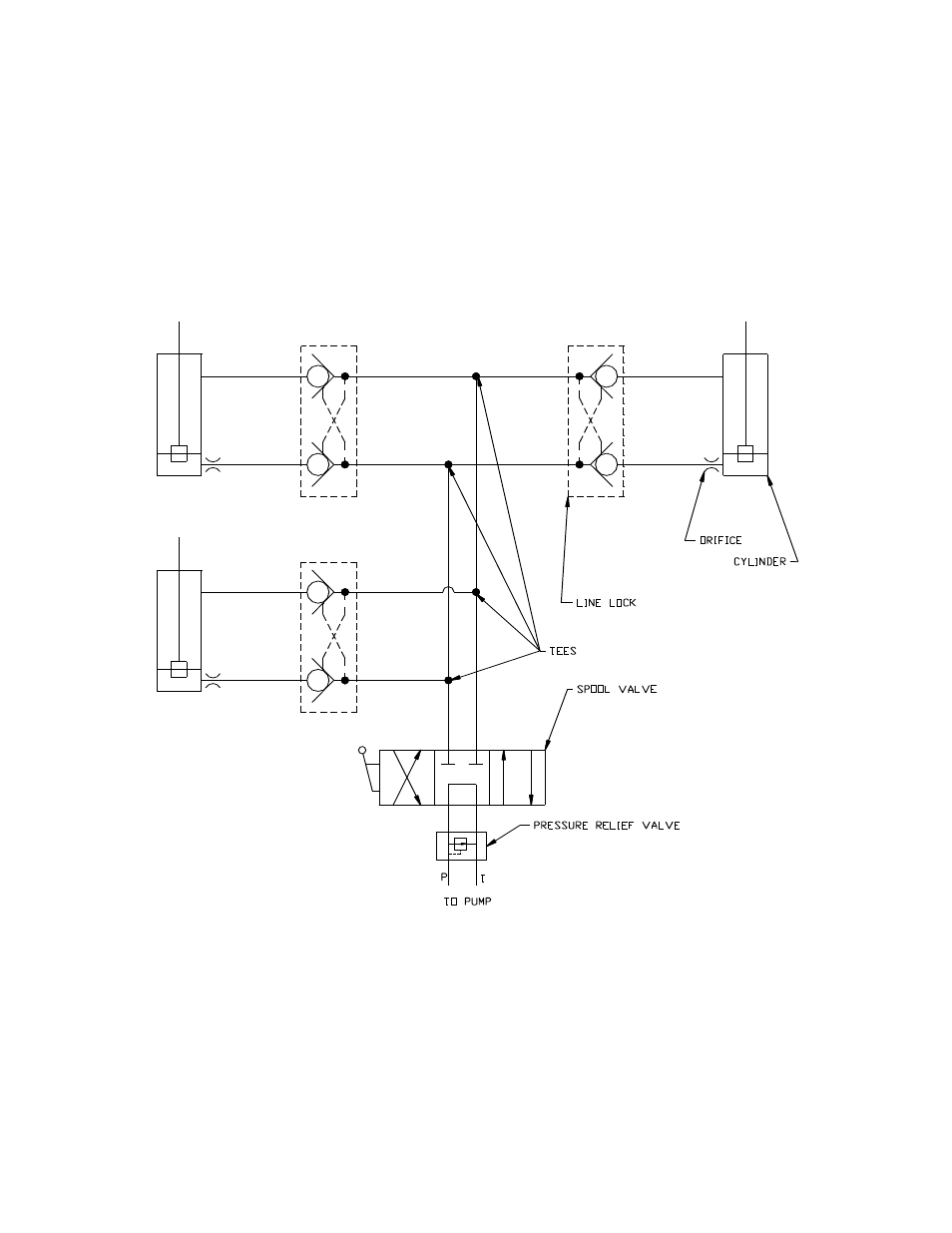

Figure 8 - Hydraulic Schematic for 3 Cell Systems
