17
15.1 Control Box Mounting
The control box must be mounted on the scale. If needed, use the control box
mounting bracket included with the On-Board kit. The control box should be easily
accessible to the operator and be visible to anyone wishing to see the display.
kg lb NET -0- MTN CH3 CH2 CH1
OFF
ON
SELECT
T 0 PRINT
GR/NET
CH 2
2
IN
0
2000
START
SCAN
CH 1
9
lb/kg
CH 3
3
CLEAR
TEST
TOTAL
8
4
OUT
.
5 6
1
7

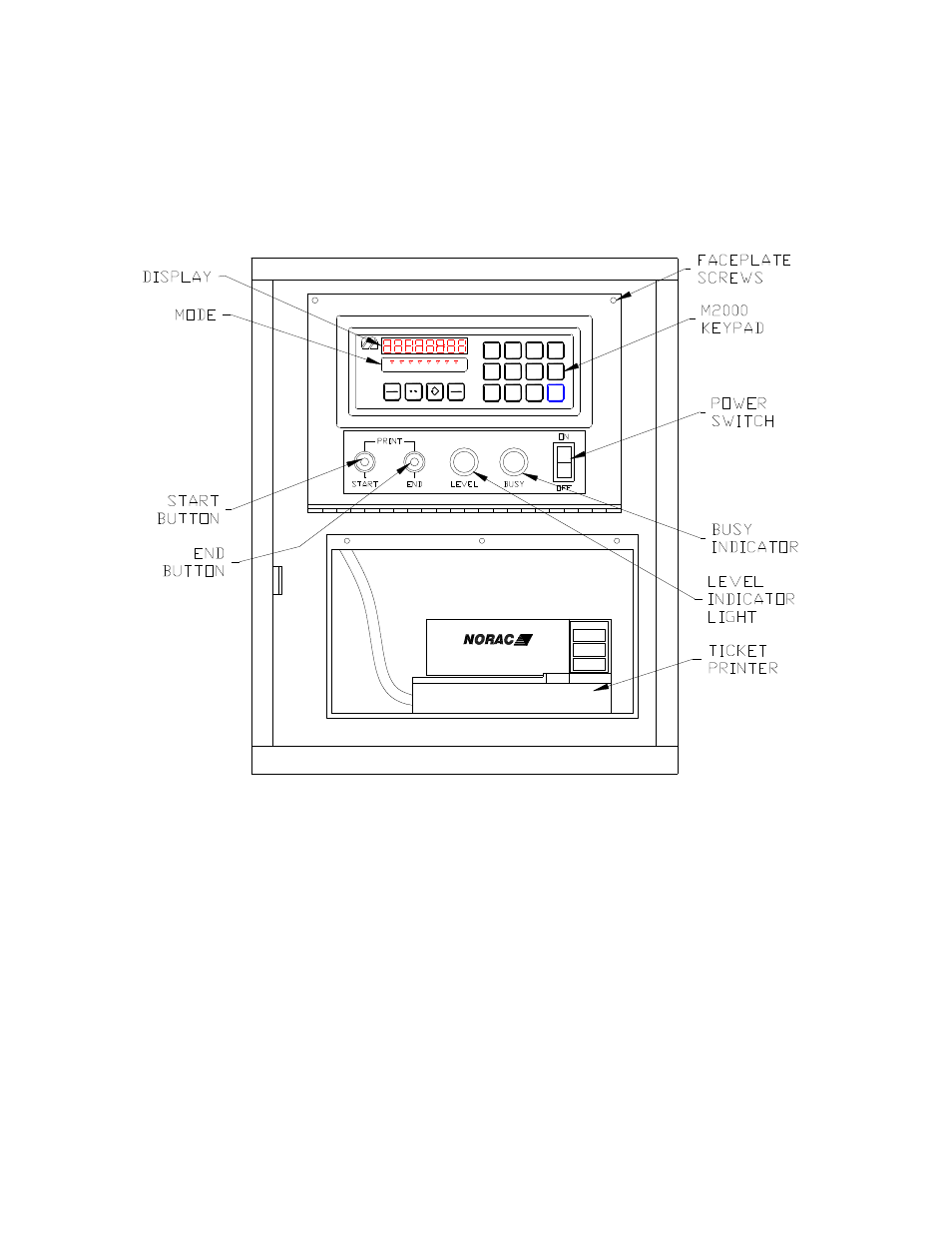

Figure 12 – 42700 Control Box
The control box must be level with the scale. The control box contains a level
switch that detects the degree to which the scale is off level. Therefore, the control box
must be attached to the scale so that it is level with respect to the scale.
