Ydo01m-io, option a5: specifications, Ydo01m-en (option b9) – Rice Lake Sartorius Midrics 1 and 2 Series - Installation Instructions User Manual
Page 10

10

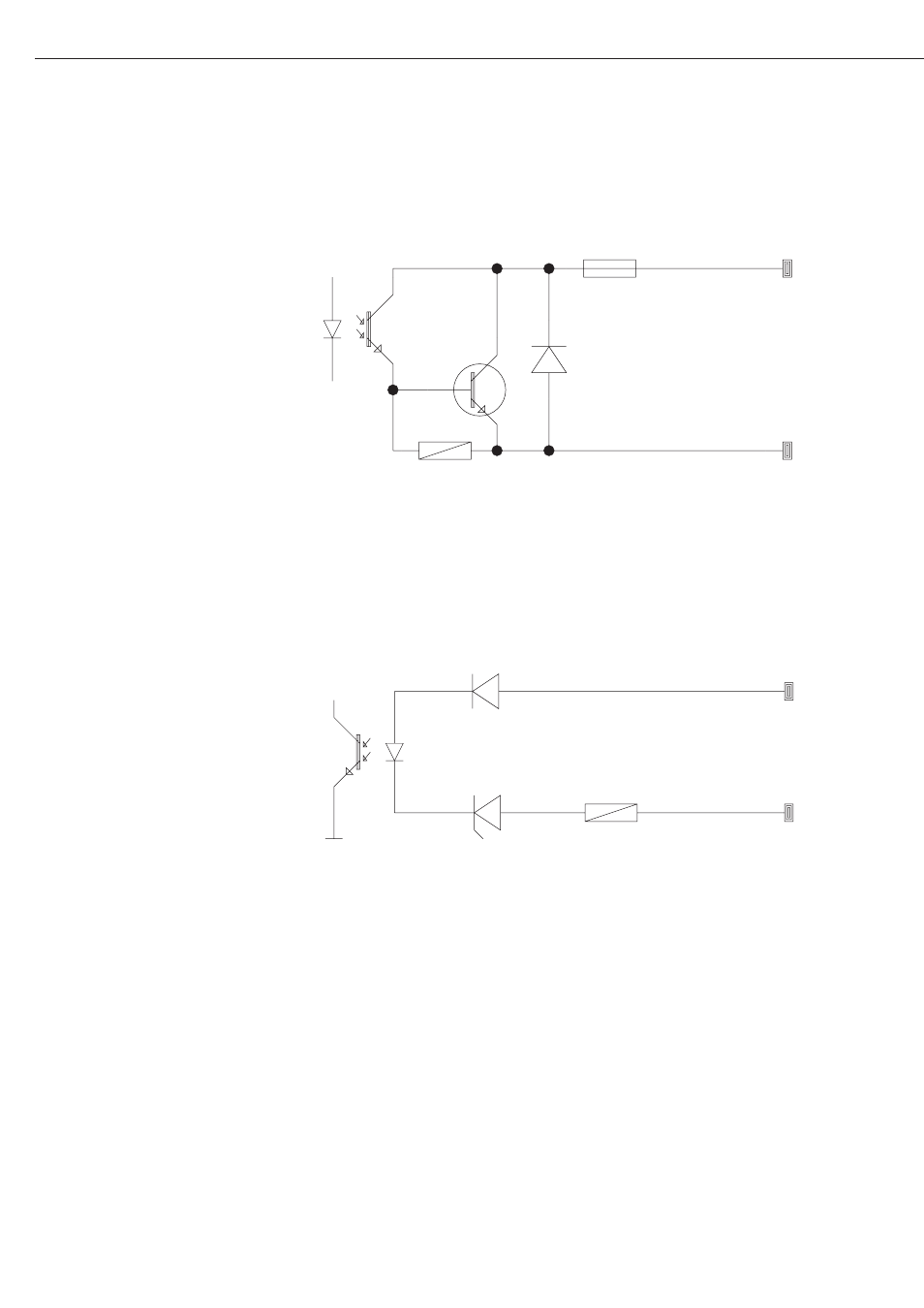

Example: Basic Circuit Diagram
YDO01M-IO, Option A5:
Specifications
Digital inputs
– Quantity: 5
– Low level:
–3 V to +5 V
– High level:
+11 V to +30 V
– Maximum current
consumption:
2.6 mA at 15 V
– Inputs are activated by applying
the corresponding voltage.
Digital outputs
– Quantity: 5
– Maximum current flow per channel:
100 mA
– Voltage range:
0–30 VDC
– Each output is formed
by an opto-electronic coupler.
YDO01M-EN (Option B9)
Equipment Supplied
– YDO01M-EN interface module
– Operating instructions (this document)
– Interface description (fieldbus for
TCP Modbus)
Assembly
Connect interface module YDO01M-EN
(Ethernet interface) directly to the digi-
tal board of the scales without configu-
ration. For more information, please
refer to chapter entitled “Installing Data
Output Ports in the Indicator”.
Insert the YCC02RJ45M7 plug on the
Sartorius Ethernet cable (option M38)
into the port of the interface module.
Note:
!
Only use cables and plugs that conform
to the Ethernet specification (CAT5 or
better):
Ethernet cable with Sartorius order no.
YCC02RJ45M7 (Option M38) cable
gland
Use the interface module only with the
following devices:
– Indicator MIS1, MIS2 (IP65)
– Complete scales MW1, MW2 (IP65)
OUTx_high
30V
0.2A
LV1
LV1
OUTx_low
1
2
3
4
Inputx_high
1
2
3
4
LV2
LV2
Inputx_low
