Rice Lake FX-i WP Series, A&D Weighing - Manual (Page 9)

7

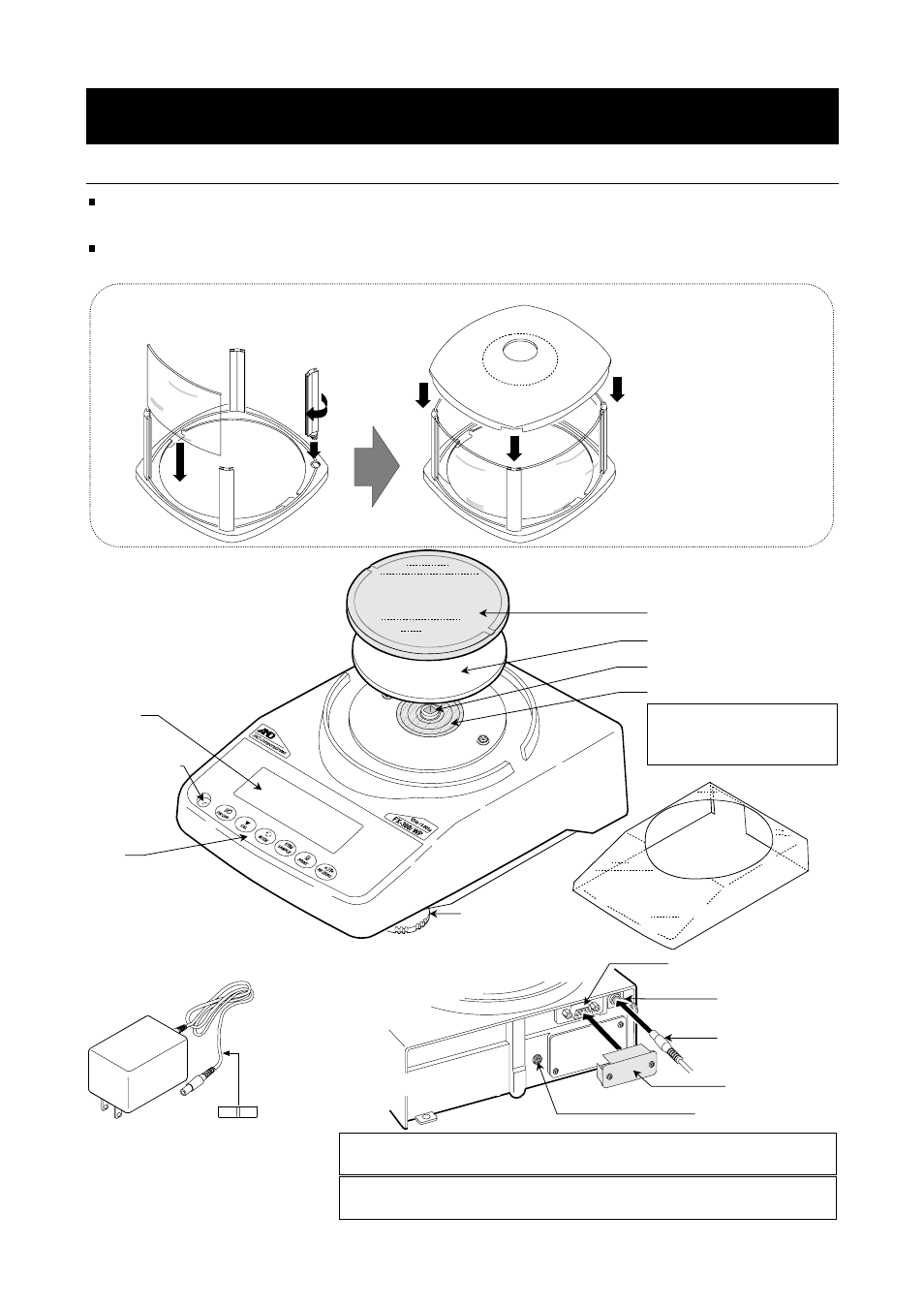

2. UNPACKING THE BALANCE
2-1 Unpacking
The balance is a precision instrument. Unpack the balance carefully. Keep the packing material to be used
for transporting the balance in the future.
The packing contents depend on the balance model. See the illustrations to confirm that everything is
contained.
When attaching the pan
support, use much care not
to deform the diaphragm.
To use as a dust and waterproof balance, cover the RS-232C
interface connector, or connect the waterproof RS-232C cable
The breeze break is
an accessory for
FZ-i WP series,
FX-120i WP,
FX-200i WP,
FX-300i WP .
The breeze break
Assemble the breeze break as shown below.
Follow the numbered sequence.
4
1
2
3
Waterproof diaphragm
Pan boss
Pan support
Weighing pan
Bubble spirit
level
Display
Keys
Leveling foot
AC adapter AC adapter ID label
Note
Please confirm that the AC adapter
type is correct for your local voltage
and receptacle type.
The AC adapter plug is protected against dust and may be difficult to
insert. When inserting the plug, turn the plug while pushing on it.
Terminal cover
Grounding terminal
RS-232C serial interface
AC adapter jack
AC adapter plug
Main unit
Main unit rear
Main unit cover
