3 880 Operator’s Manual
1.2 Operating Modes
The 880 has three modes of operation:
Normal mode
Normal mode is the weighing mode of the indicator. The indicator
displays gross or net weights as required, and annunciators to indicate
scale status and the type of weight value displayed.
User Setup Mode
User setup mode (accessed by pressing
MENU
) is used to:
• View the audit trail
• Set the time and date
• View or clear the accumulator value
• Change setpoint values
• View the current tare value
• Enter setup mode (if audit trail is enabled)
See Section 1.4.8 for more information.
1.3 Front Panel Display

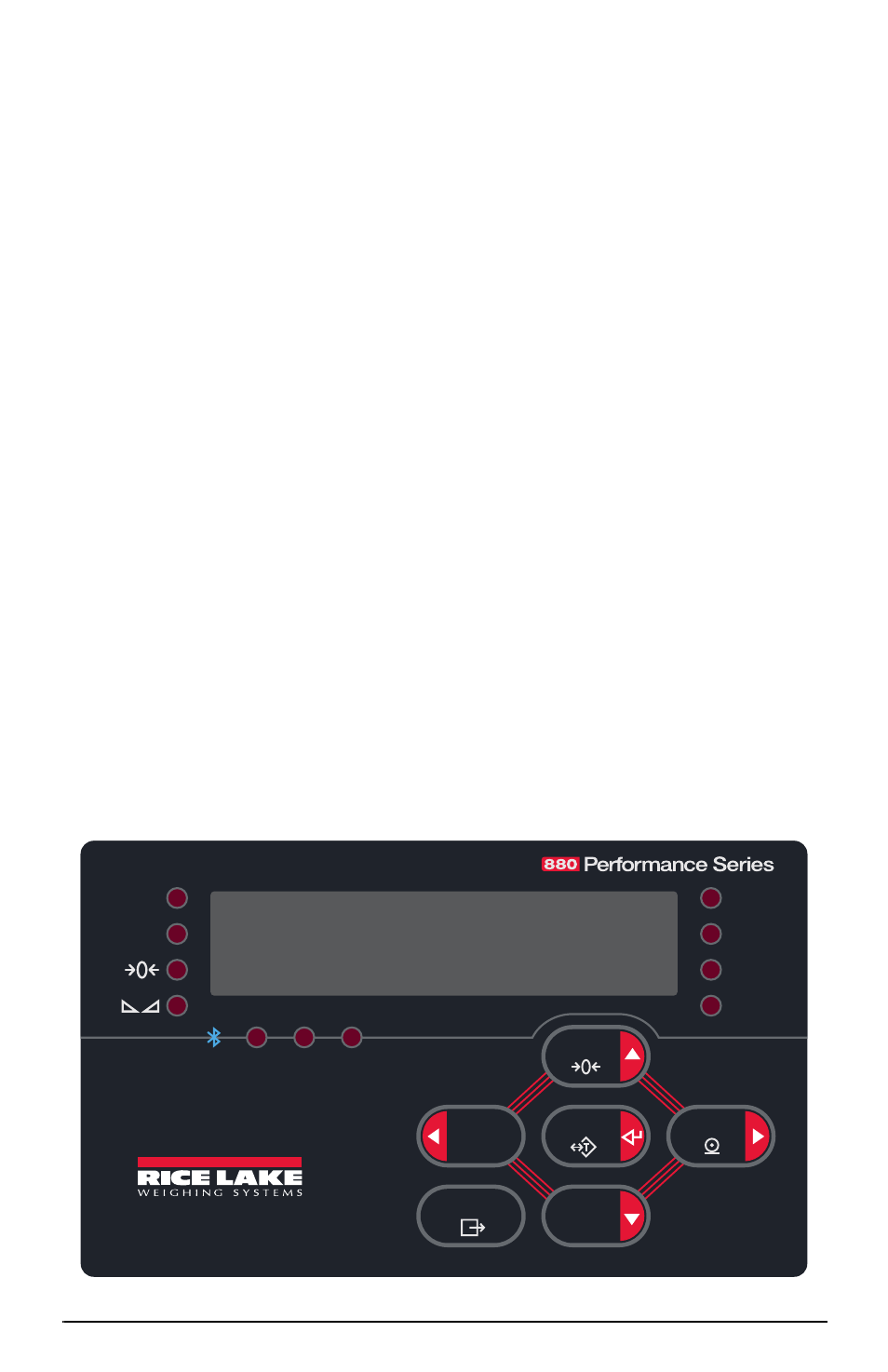

Figure 1-1 shows the 880 front panel keys and the key functions assigned in normal
mode.
The numeric display consists of six large, 14-segment LED digits. If a negative
number is displayed the first LED is used to display “-”, reducing the number of
available digits to five.
The symbols on the keys in Figure 1-1 (representing up, down, enter, left, right)
describe the key functions assigned in setup mode. The keys are used to navigate
through menus, select digits within numeric values, and increment/decrement values.
See Section 2.1.3 for information about using the front panel keys in setup mode.
Gross
Brutto
Net
lb
kg
PT
T
MENU
ZERO
PRINT
GROSS
NET
B/N
TARE
UNITS
R1 R2 R3
